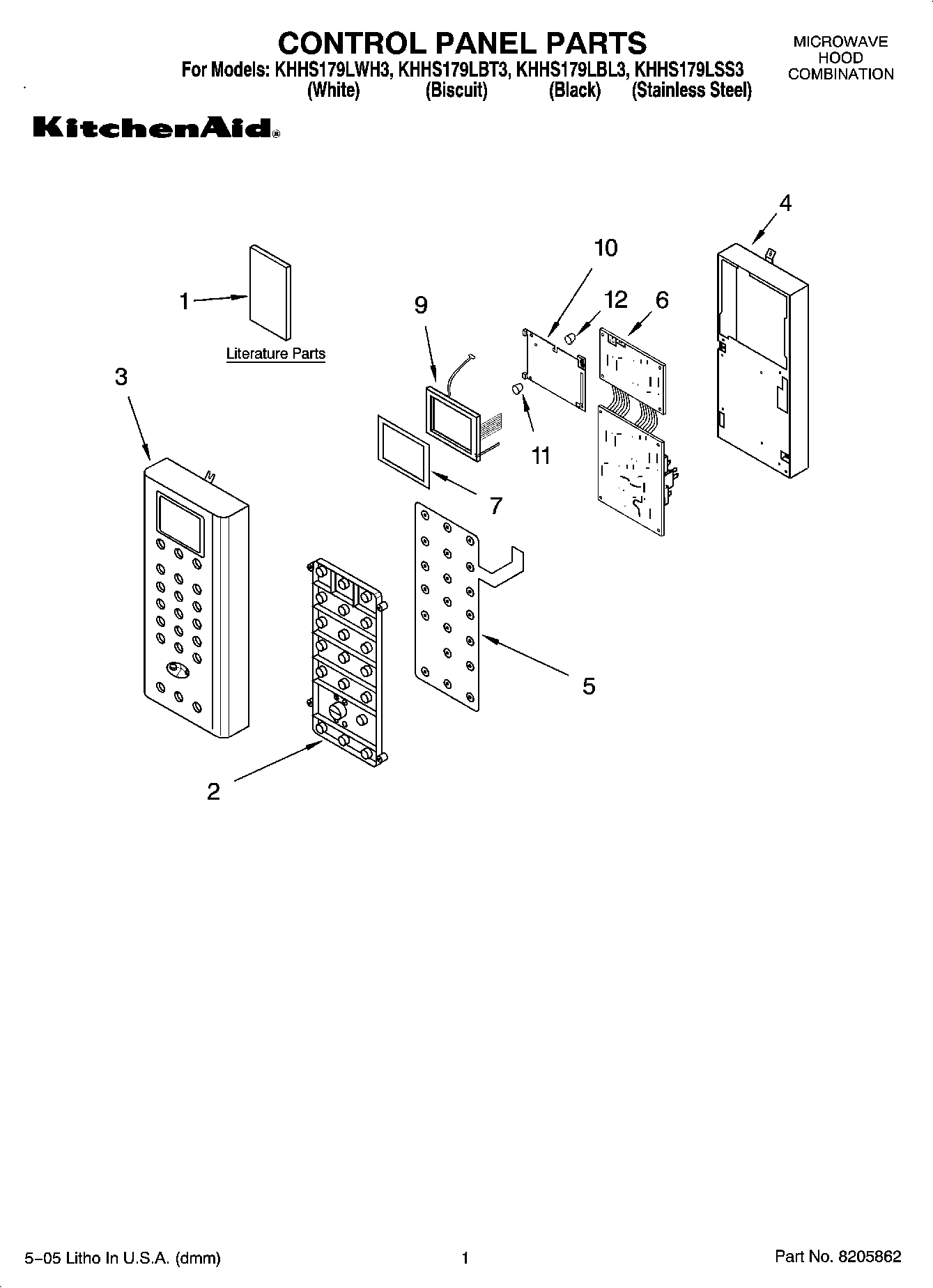

KHHS179LBL3 01 – CONTROL PANEL PARTS

KHHS179LBL3 01 – CONTROL PANEL PARTS

Written by

in

KHHS179LBL3 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Tech Sheet
1Tech Sheet, Insert
1Cook Book
1Cook Guide Label
1Installation Instructions
1Use & Care Guide
2Button Assembly (Stainless)
2Button Assembly (White)
2Button Assembly (Biscuit)
2Button Assembly (Black)
3Control Panel (White)
3Control Panel (Black)
3Control Panel (Biscuit)
3Control Panel (Stainless)
4Bracket, Control
5Touch Pad
6Microcomputer
7Ring, Rubber
9LCD Assembly
10Bracket, LCD
11Bushing, Rubber
12Sensor, Light Lens
