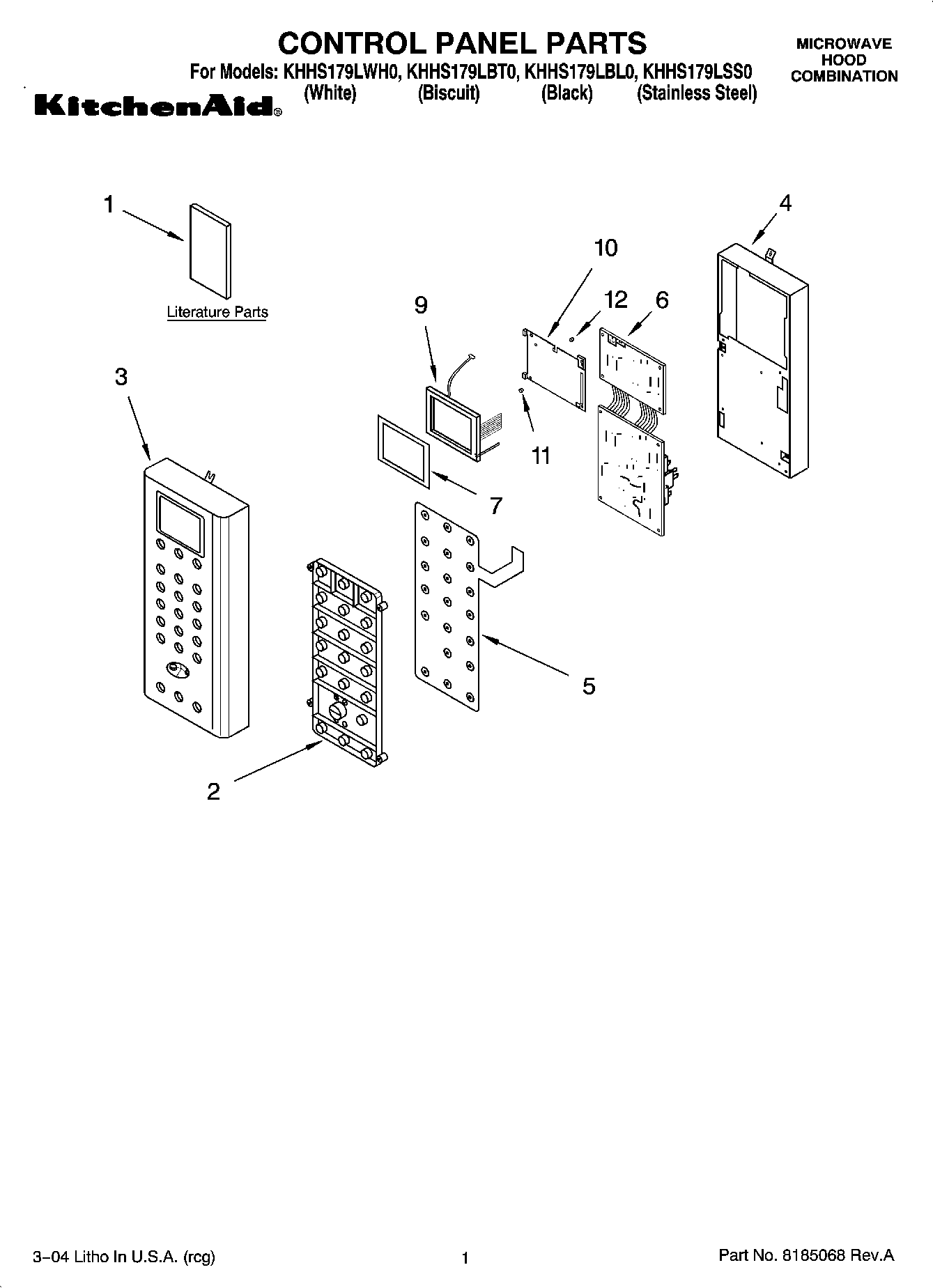

KHHS179LBT0 01 – CONTROL PANEL PARTS

Products

Position	Product
1	Literature Parts (Instructn, Install)
1	Literature Parts (Cook Book)
1	Literature Parts (Cook Guide Label)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Tech Sheet)
2	Button Assembly (Stainless)
2	Button Assembly (White)
2	Button Assembly (Black)
2	Button Assembly (Biscuit)
3	Control Panel (Black)
3	Control Panel (Biscuit)
3	Control Panel (Stainless)
3	Control Panel (White)
4	Bracket, Control
5	Touch Pad
6	Microcomputer
7	Ring, Rubber
9	LCD Assembly
10	Bracket, LCD
11	Bushing, Rubber
12	Sensor, Light Lens
