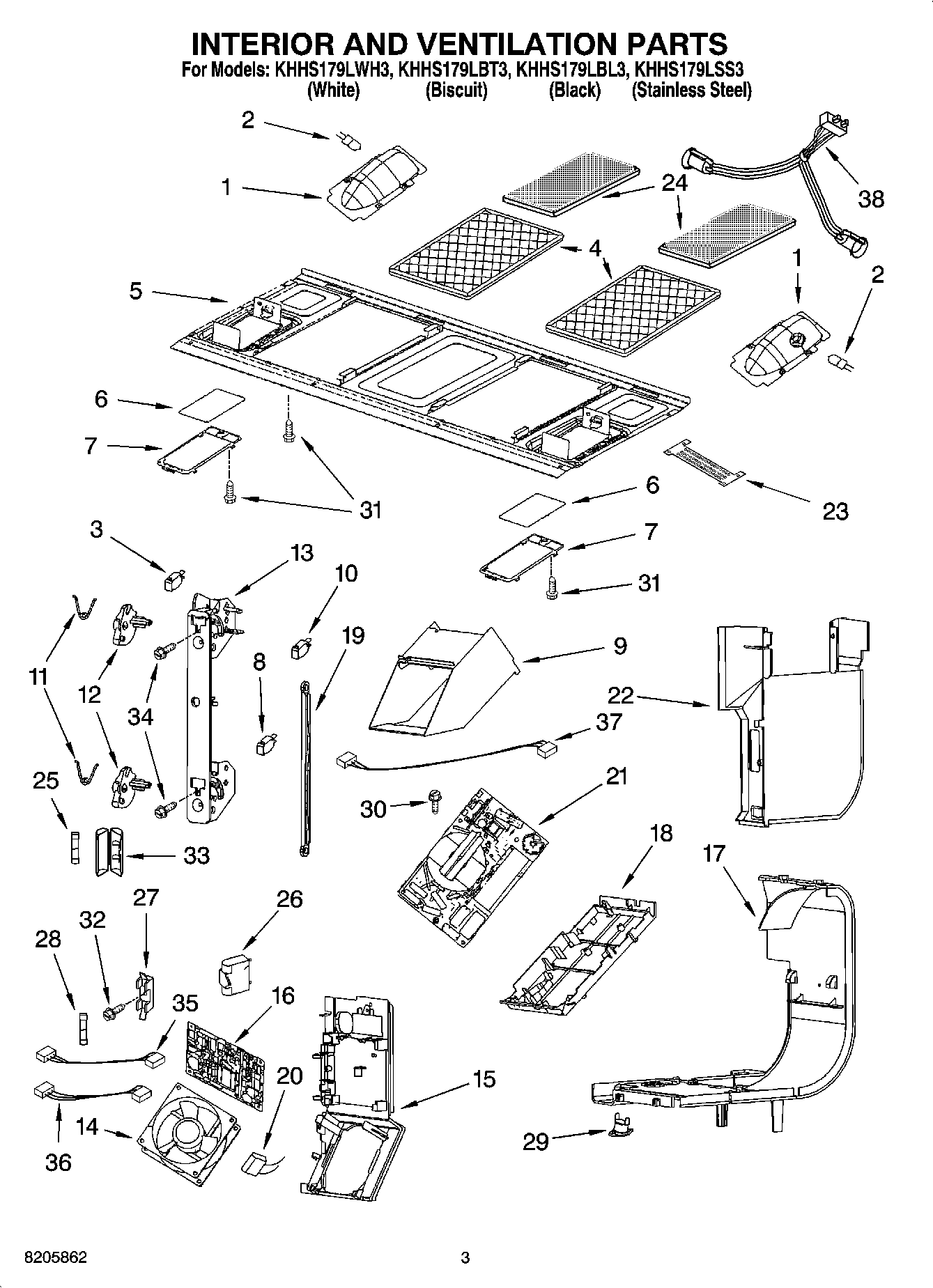

KHHS179LBT3 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp (Right)
1	Reflector, Lamp (Left)
2	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
3	W10269458 Whirlpool Microwave Door Switch
4	W10113040A Whirlpool Grease Filter Aluminum
5	Plate, Bottom (For SS Model)
5	Plate, Bottom
6	Glass, Lamp
7	Holder, Glass
8	W10211974 Whirlpool Microwave Door Interlock Micro Switch
9	Cover, Inverter
10	W10211972 Whirlpool Microwave Switch
11	Spring, Interlock
12	Plate, Cam
13	Support, Interlock
14	Fan, DC 12 V
15	Housing, Fan
16	Inverter 40 W
17	Bracket, Holder
18	Holder, Inverter
19	Rod-Locking Link
20	Capacitor, 125 V
21	W10217710 Whirlpool Microwave Inverter
22	Plate, Side
23	Cable
24	W10112514A Whirlpool Microwave Vent Hood Charcoal Filter
25	Fuse (2) 4 Amp/250 Volt
26	Capacitor
27	Holder, Fuse
28	FUSE-THRML
29	Thermostat
30	SCREW
31	W11380570 Whirlpool Microwave Screw
32	SCREW
33	Fuse Holder (2)
34	8169479 Whirlpool Microwave Screw
35	P27 to CN153
36	P4 to CN151
37	W10615910 Whirlpool Microwave Wire Harness
38	Wire Harness (Includes Light Sockets)
