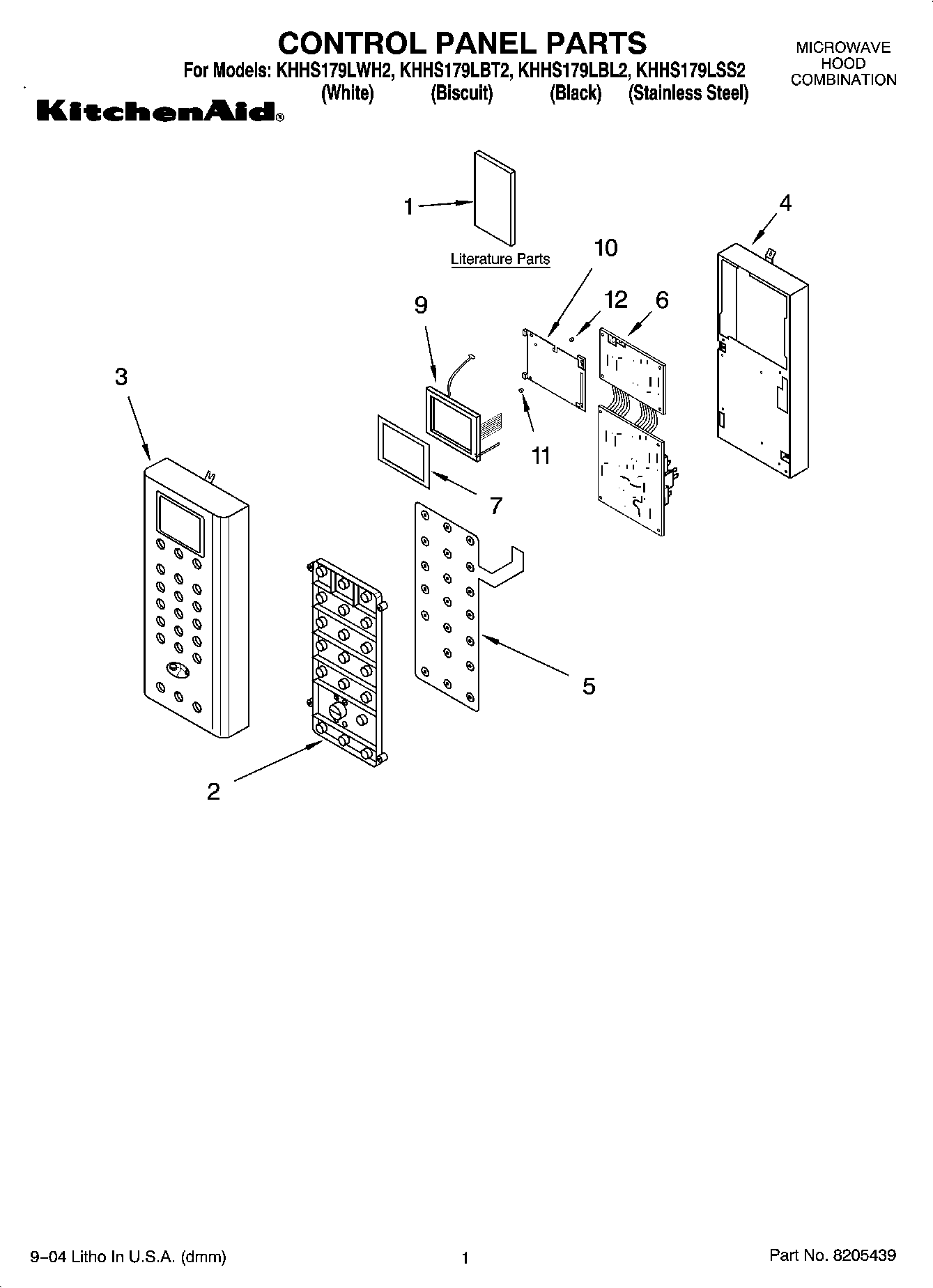

KHHS179LSS2 01 – CONTROL PANEL PARTS

KHHS179LSS2 01 – CONTROL PANEL PARTS

Written by

in

KHHS179LSS2 01 – CONTROL PANEL PARTS

Products

Position	Product
1	Use & Care Guide
1	Installation Instructions
1	Cook Guide Label
1	Tech Sheet
1	Cook Book
2	Button Assembly (Black)
2	Button Assembly (Biscuit)
2	Button Assembly (White)
2	Button Assembly (Stainless)
3	Control Panel (Black)
3	Control Panel (Biscuit)
3	Control Panel (Stainless)
3	Control Panel (White)
4	Bracket, Control
5	Touch Pad
6	Microcomputer
7	Ring, Rubber
9	LCD Assembly
10	Bracket, LCD
11	Bushing, Rubber
12	Sensor, Light Lens
