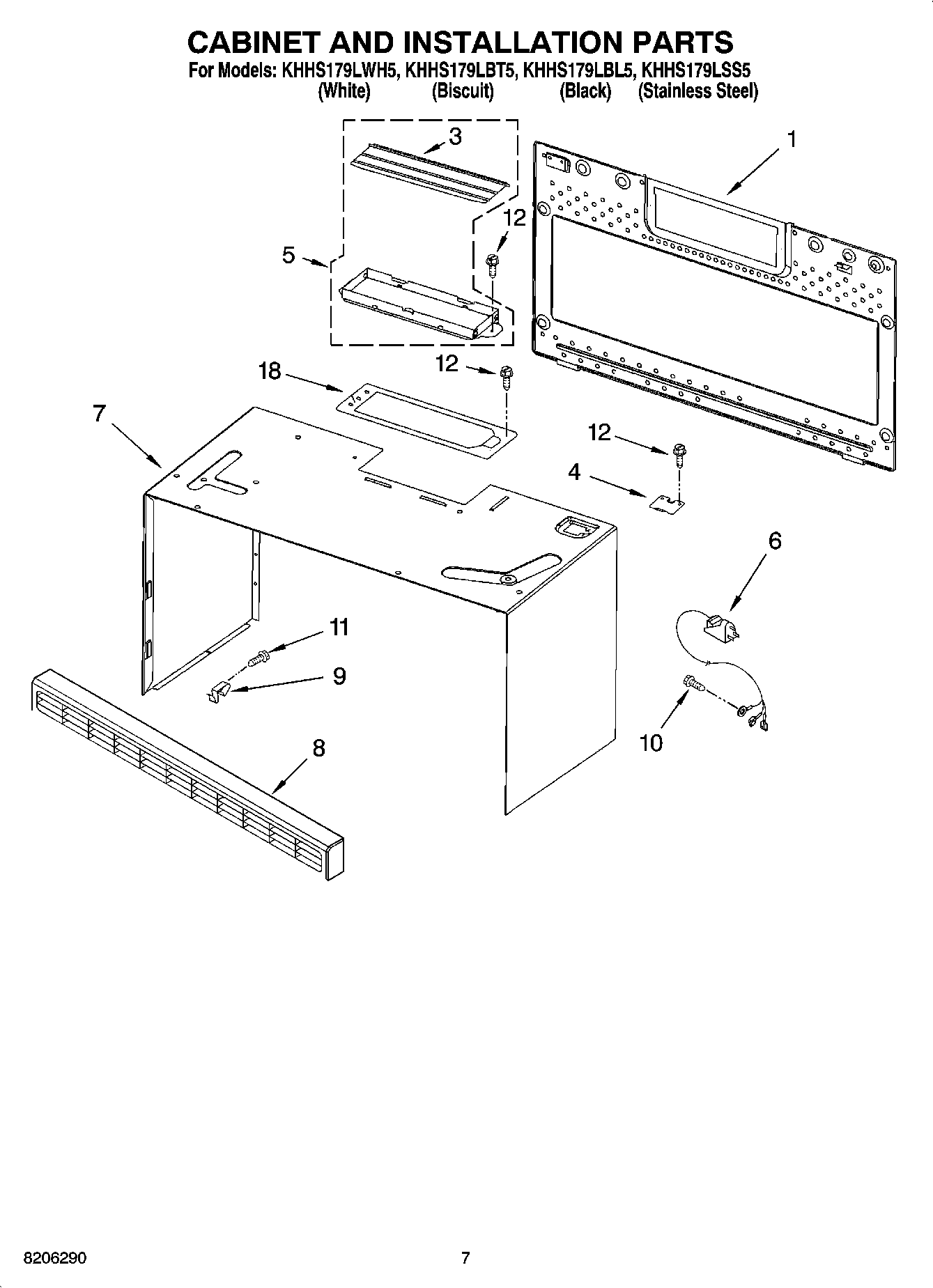

KHHS179LSS5 06 – CABINET AND INSTALLATION PARTSadmin2025-04-26T10:38:11+00:00KHHS179LSS5 06 – CABINET AND INSTALLATION PARTS
Products
| Position | Product |
|---|
| 1 | Plate, Mounting |
| 3 | W10843943 Whirlpool Microwave Vent Damper |
| 4 | Lid, Power Cord |
| 6 | Cord, Power |
| 7 | Case, Outer (White) |
| 7 | Case, Outer (Biscuit) |
| 7 | Case, Outer (Black) |
| 8 | Grille, Vent (Biscuit) |
| 8 | Grille, Vent (Stainless) |
| 8 | Grille, Vent (White) |
| 8 | Grille, Vent (Black) |
| 9 | W10615742 Whirlpool Microwave Clip |
| 10 | 4393836 Whirlpool Microwave Screw |
| 11 | Screw |
| 12 | W11380570 Whirlpool Microwave Screw |
| 18 | Plate, Damper |
| 18 | Hardware, Installation |
| 18 | (Biscuit) |
| 18 | WP8169704 Whirlpool Screw |
| 18 | Wire Harness (Includes Light Sockets) |
| 18 | Harness from Magnetron to |
| 18 | Miscellaneous |
| 18 | CN703 |
