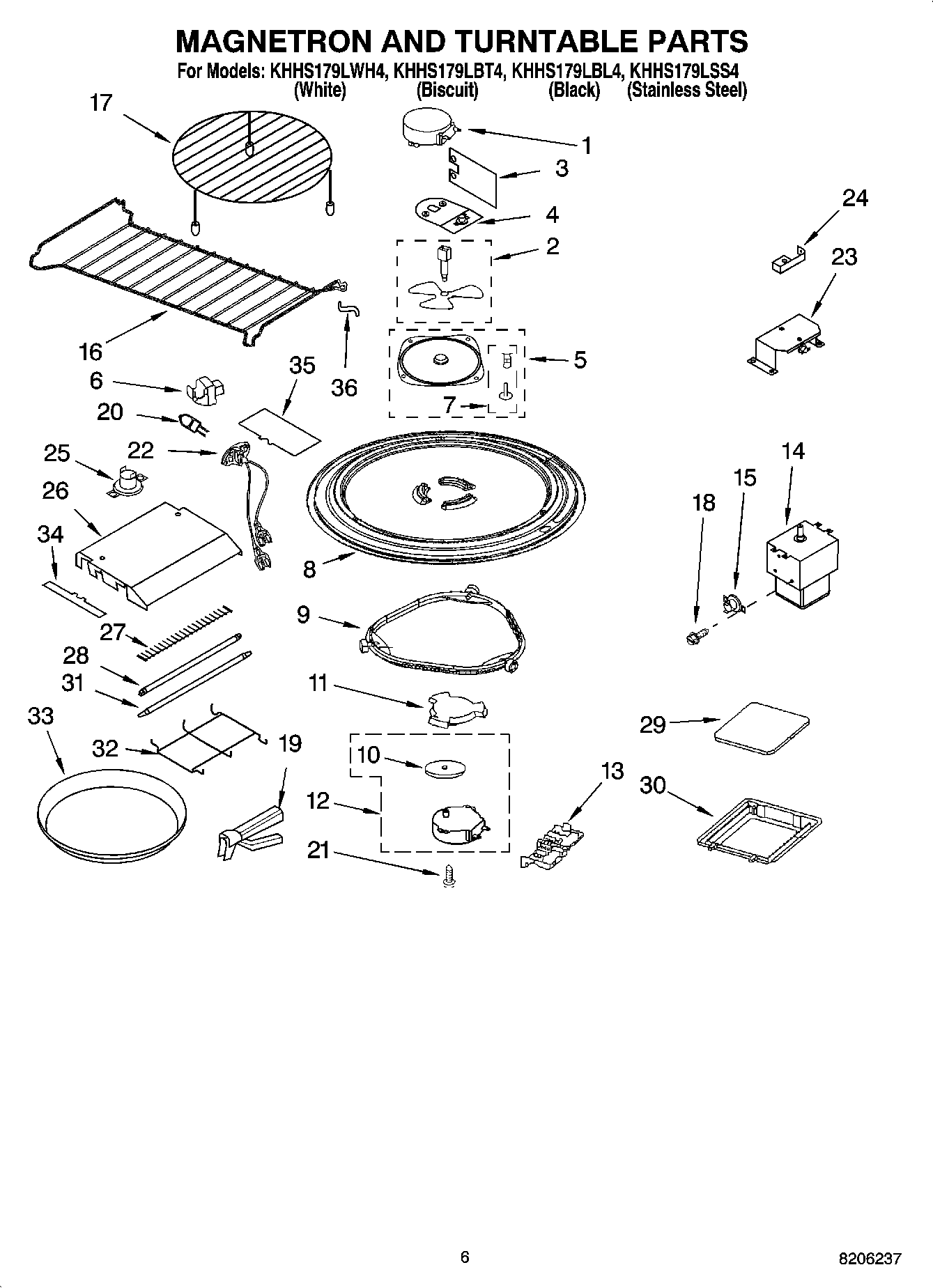

KHHS179LWH4 05 – MAGNETRON AND TURNTABLE PARTSadmin2025-04-26T10:38:43+00:00KHHS179LWH4 05 – MAGNETRON AND TURNTABLE PARTS
Products
| Position | Product |
|---|
| 1 | Motor, Stirrer |
| 2 | Stirrer Shaft/Blade |
| 3 | WP8184485 Whirlpool Microwave Shield |
| 4 | Thermostat And Bracket |
| 5 | Cover, Inlet Includes Nails and Bushings |
| 6 | W10315274 Whirlpool Microwave Meal Rack |
| 7 | Nails/Bushings (4 of each) |
| 8 | 4393799 Whirlpool Microwave Glass Tray |
| 9 | W11252182 Whirlpool Glass Tray Support |
| 10 | 8184109 Whirlpool Microwave Spacer |
| 11 | W10435116 Whirlpool Microwave Turntable Roller Drive Coupling |
| 12 | W10642989 Whirlpool Microwave Oven Turntable Motor |
| 13 | Cover, Terminal |
| 14 | 8206317 Whirlpool Microwave Magnetron |
| 15 | Thermostat |
| 17 | Grill |
| 18 | Screw |
| 19 | W10851464 Whirlpool Microwave Handle Panel |
| 20 | 8204670 Whirlpool Microwave Halogen Lamp 10W 12V |
| 21 | 4393832 Whirlpool Microwave Screw |
| 22 | Socket, Halogen Light |
| 23 | Thermostat/Bracket |
| 24 | Bracket, Plug |
| 25 | Thermostat |
| 26 | Grill, Insulation Plate |
| 27 | WP8184837 Whirlpool Microwave Element |
| 28 | W10510202 Whirlpool Microwave Light Bulb |
| 29 | Glass, Lamp |
| 30 | Frame, Glass |
| 31 | WPW10510203 Whirlpool Microwave Heater |
| 32 | Cover, Protector |
| 33 | W10748097 Whirlpool Microwave Crisp Pan |
| 34 | Insulation, Front |
| 35 | Insulation, Rear |
