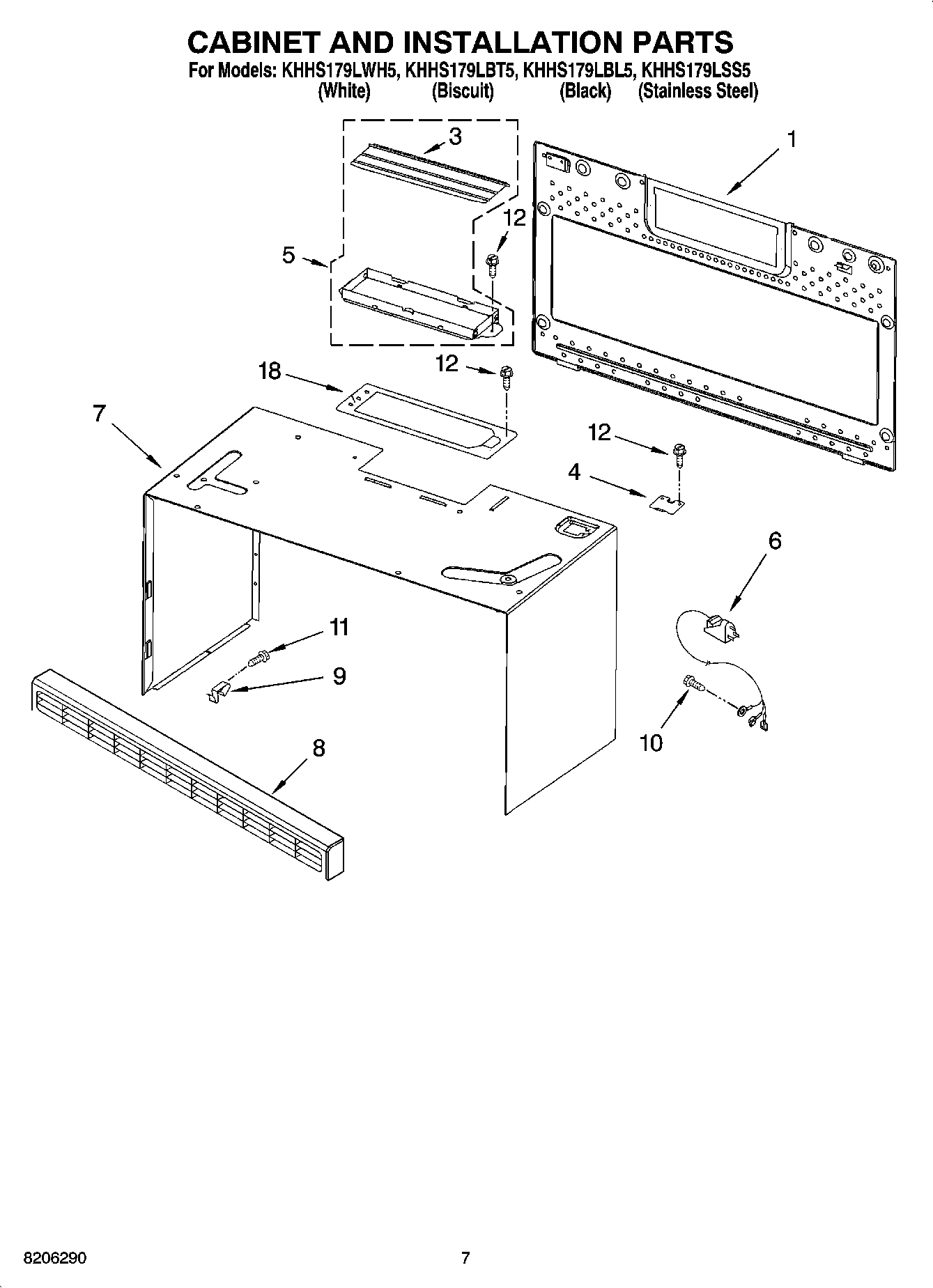

KHHS179LWH5 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1Plate, Mounting
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (Black)
7Case, Outer (White)
7Case, Outer (Biscuit)
8Grille, Vent (White)
8Grille, Vent (Stainless)
8Grille, Vent (Biscuit)
8Grille, Vent (Black)
9W10615742 Whirlpool Microwave Clip
104393836 Whirlpool Microwave Screw
11Screw
12W11380570 Whirlpool Microwave Screw
18Wire Harness (Includes Light Sockets)
18CN703
18Miscellaneous
18Plate, Damper
18Hardware, Installation
18(Biscuit)
18WP8169704 Whirlpool Screw
18Harness from Magnetron to
