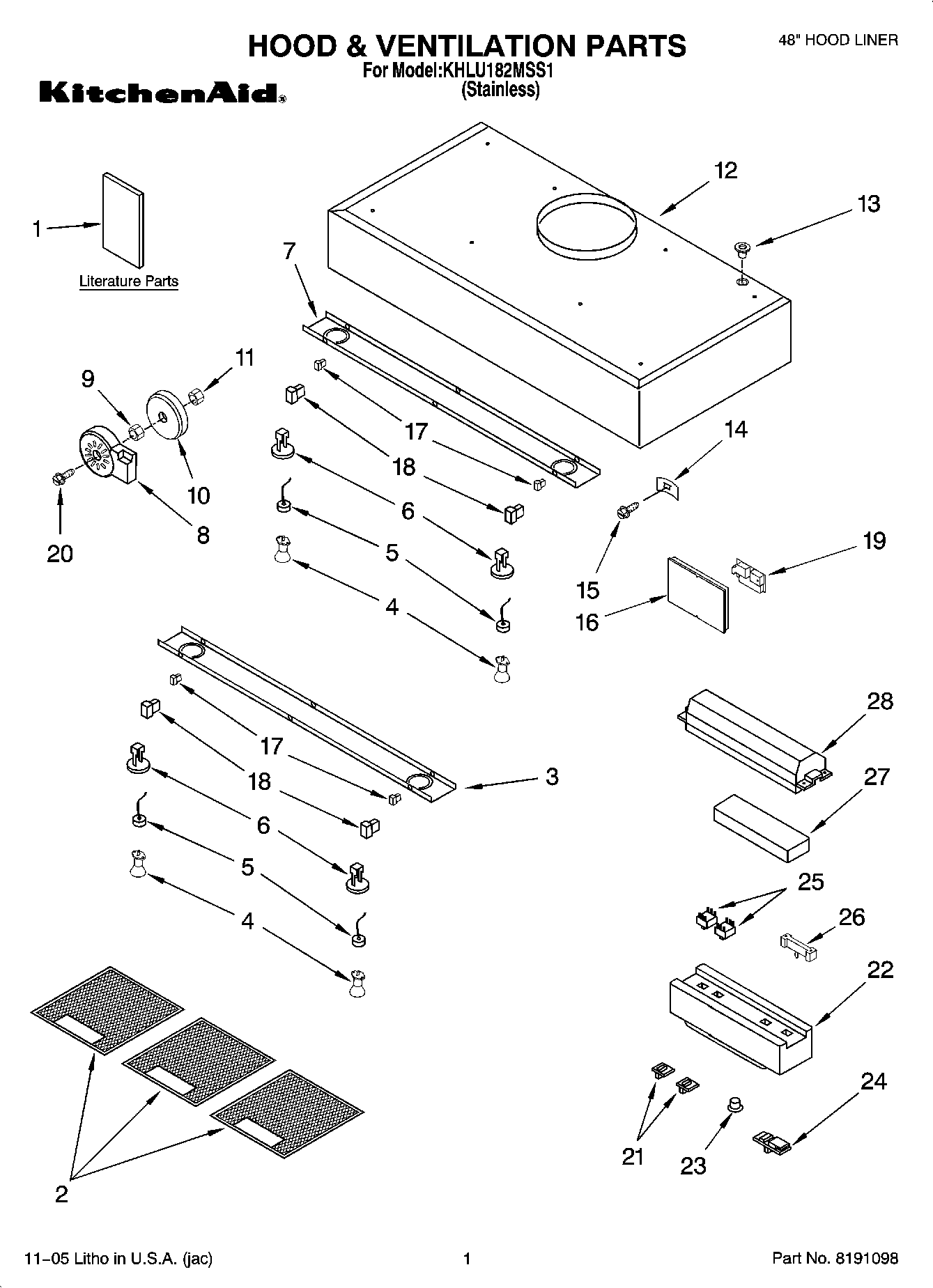

KHLU182MSS1 01 – HOOD & VENTILATION PARTS

Products

Position	Product
1	Wiring Diagram
1	Instructions, Installation / Use & Care Guide
2	WPW10281491 Whirlpool Filter
3	Support, Light
4	WPW10252088 Whirlpool Light Bulb
5	Holder, Bulb (6)
6	Support, Bulb (6)
7	Support, Light
8	Blower
9	NUT
10	WPW10252120 Whirlpool Transformer
11	NUT
12	Hoodliner
13	Strain Relief
14	Guide, Ground
15	Screw
16	Cover, Box
17	Connector, Male
18	Connector, Female
19	Control, Speed
20	SCREW
21	Button, On/Off
22	Box, Control
23	Cover, Lamp
24	Button, Mtr Speed
25	W11731942 Whirlpool Slide Switch
26	Switch, Mtr Speed
27	Support
28	Cover, Switch
