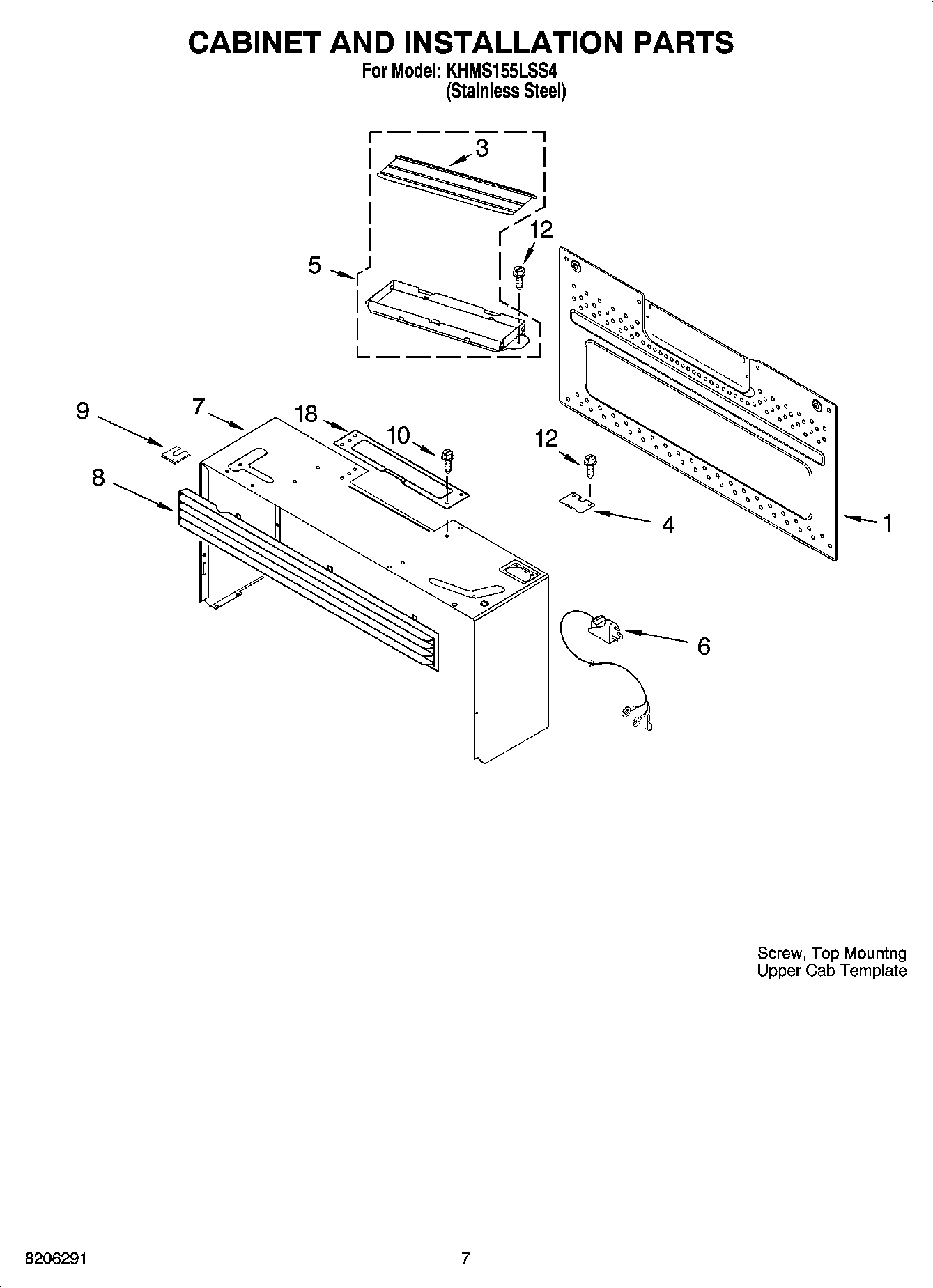

KHMS155LSS4 06 – CABINET AND INSTALLATION PARTS

KHMS155LSS4 06 – CABINET AND INSTALLATION PARTS

Written by

in

KHMS155LSS4 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
68169432 Whirlpool Microwave Power Cord
7Case, Outer (Black)
8Grille, Vent
98206334 Whirlpool Microwave Mounting Bracket
10WP4393834 Whirlpool Microwave Screw
12Screw
18Rack
18Hardware, Installation
18H.V. Wire Assembly
18(Biscuit)
18Ground Wire Assy.
18WP8169704 Whirlpool Screw
18Plate, Damper
188169479 Whirlpool Microwave Screw
18Miscellaneous
