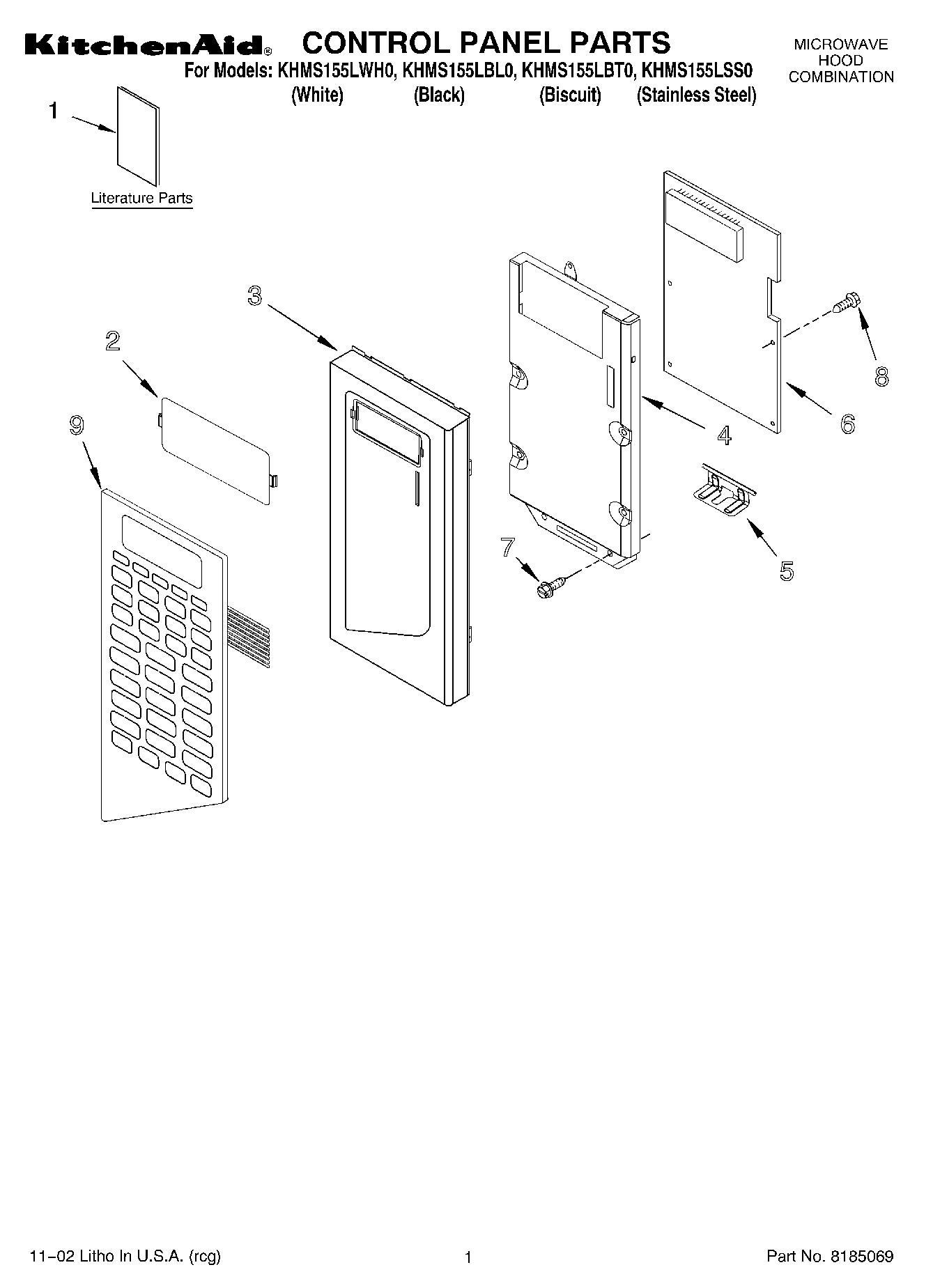

KHMS155LWH0 01 – CONTROL PANEL, LITERATURE

KHMS155LWH0 01 – CONTROL PANEL, LITERATURE

Written by

in

KHMS155LWH0 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
1Literature (Use & Care Guide)
1Literature (Tech Sheet)
1Literature (Cook Guide Label)
1Literature (Instructions, Installation)
2Lens
3Panel, Control (Biscuit)
3Panel, Control (Stainless)
3Panel, Control (Black)
3Panel, Control (White)
4Bracket, Control
5Plate, Hinge
6PCB Assembly
7Screw
8Screw
9Switch, Membrane (Black)
9Switch, Membrane (White)
9Switch, Membrane (Biscuit)
