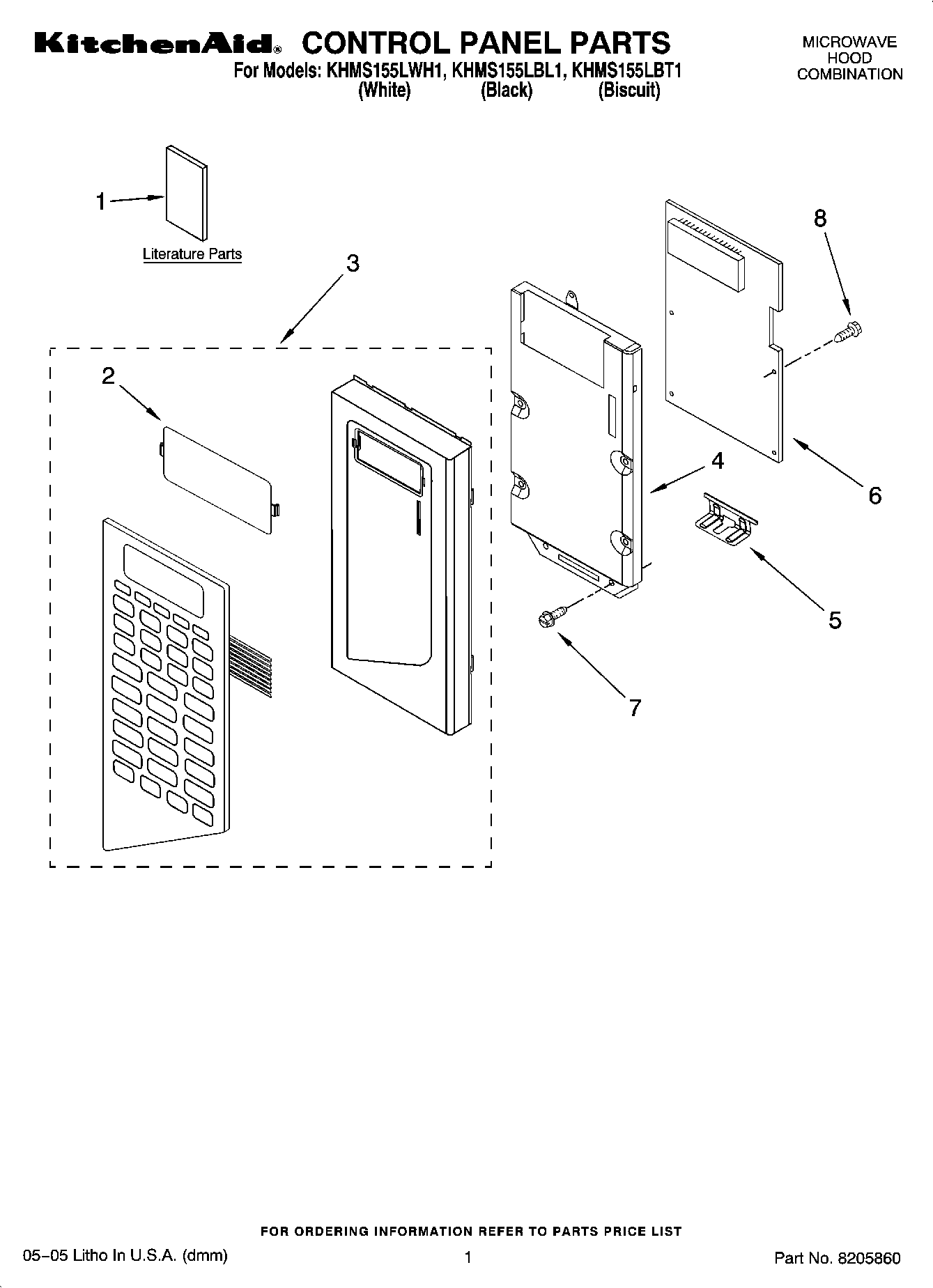

KHMS155LWH1 01 – CONTROL PANEL PARTS

Products

Position	Product
1	Instructions, Installation
1	Tech Sheet
1	Use & Care Guide
1	Cook Guide Label
2	Lens
3	Control Panel Assy (Black)
3	Control Panel Assy (White)
3	Control Panel Assy (Biscuit)
4	Bracket, Control
5	Plate, Hinge
6	PCB Assembly
7	Screw
8	Screw
