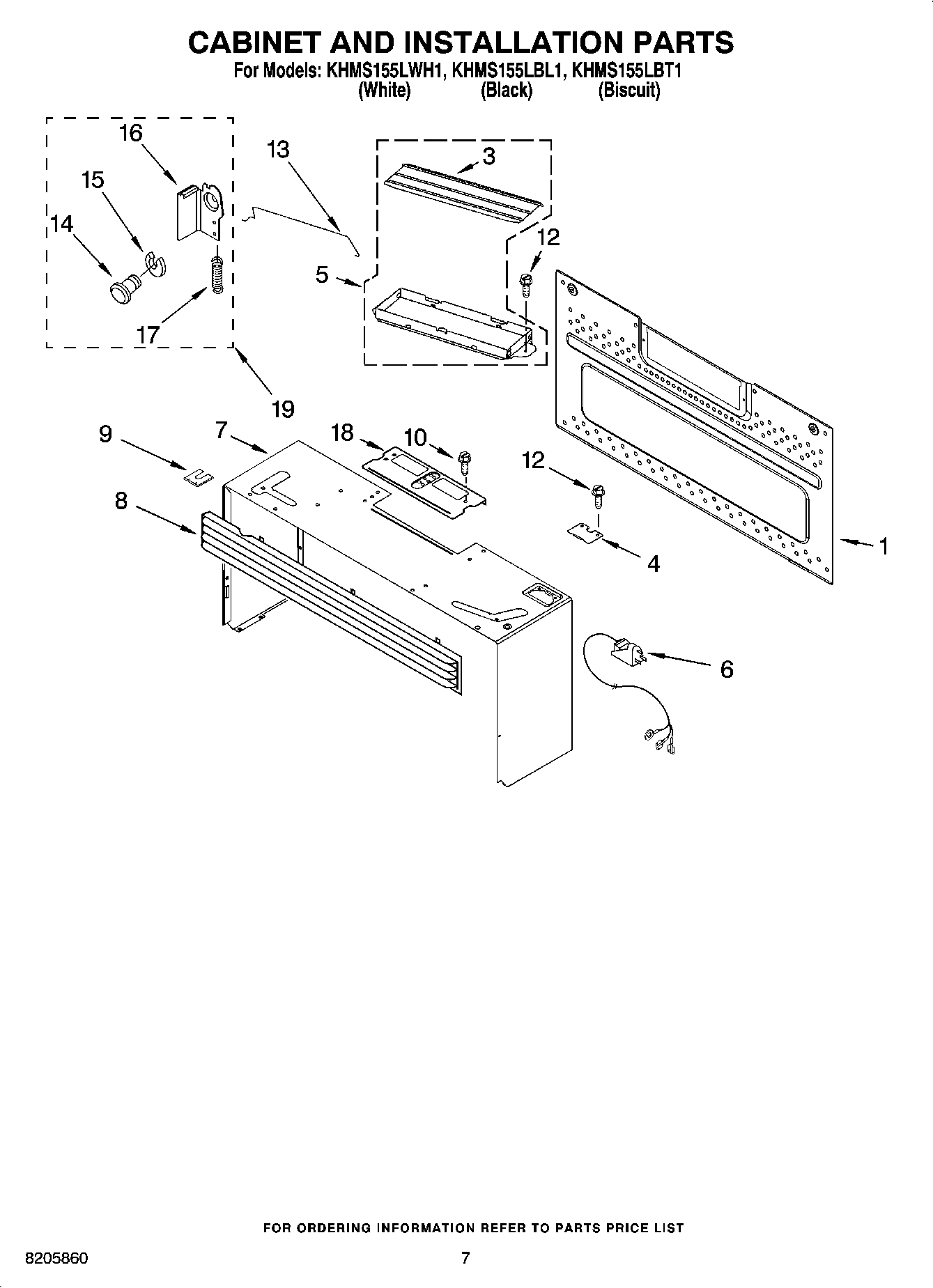

KHMS155LWH1 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	8169432 Whirlpool Microwave Power Cord
7	Case, Outer (White)
7	Case, Outer (Black)
7	Case, Outer (Biscuit)
8	Grille, Vent (White)
8	8184608 Whirlpool Microwave Oven Vent Grille
8	Grille, Vent (Biscuit)
9	8206334 Whirlpool Microwave Mounting Bracket
10	WP4393834 Whirlpool Microwave Screw
12	Screw
13	Rod
14	Latch, Pivot
15	E-Ring
17	Spring
18	Plate, Damper
19	Rack
19	WP8169704 Whirlpool Screw
19	H.V. Wire Assembly
19	Ground Wire Assy.
19	Upper Template
19	Wall Template
19	Hardware, Installation
19	Catch
19	8169479 Whirlpool Microwave Screw
19	Miscellaneous
