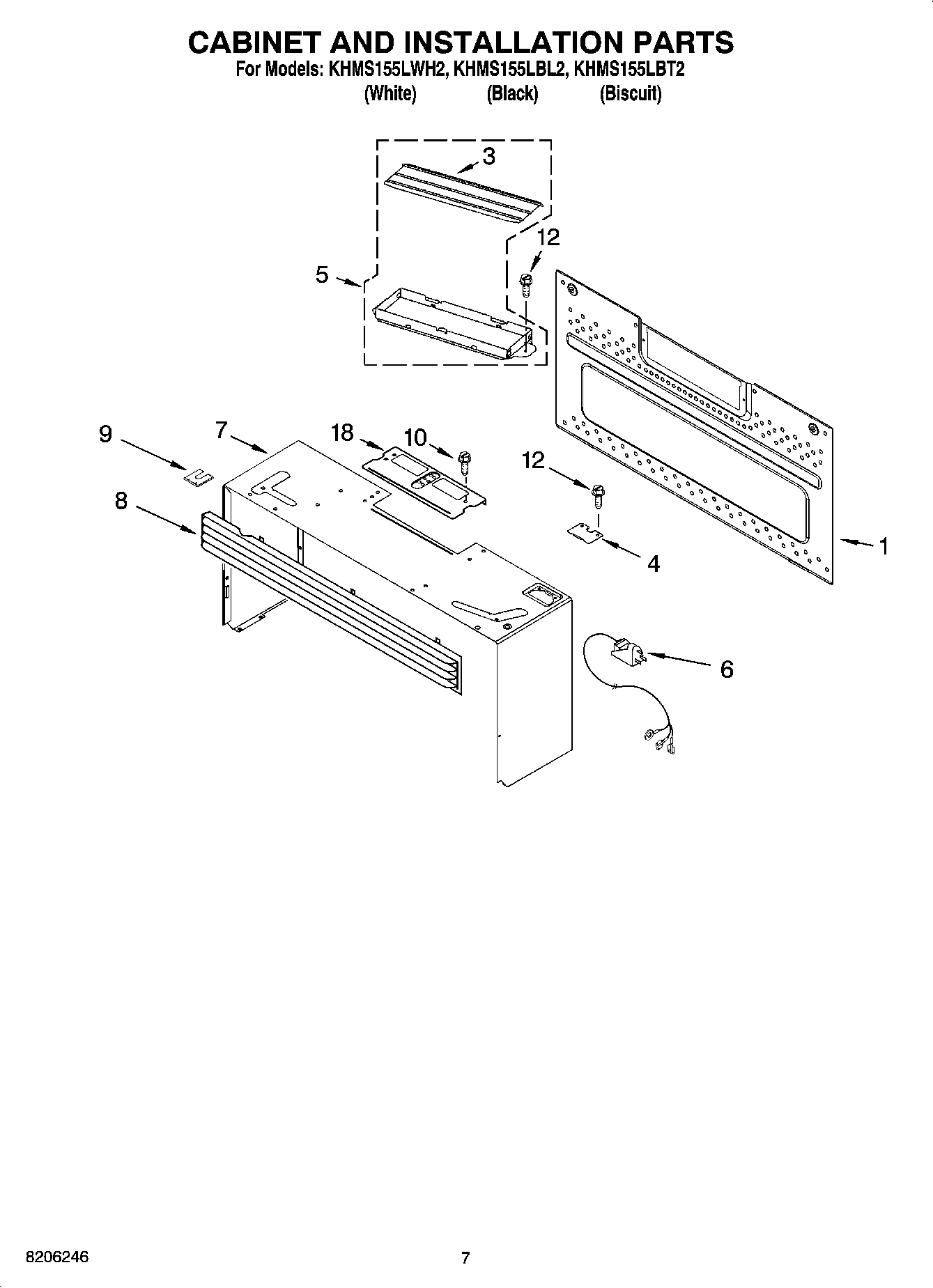

KHMS155LWH2 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
68169432 Whirlpool Microwave Power Cord
7Case, Outer (White)
7Case, Outer (Black)
7Case, Outer (Biscuit)
88184608 Whirlpool Microwave Oven Vent Grille
8Grille, Vent (Biscuit)
8Grille, Vent (White)
98206334 Whirlpool Microwave Mounting Bracket
10WP4393834 Whirlpool Microwave Screw
12Screw
18Rack
18Hardware, Installation
18H.V. Wire Assembly
18Ground Wire Assy.
18WP8169704 Whirlpool Screw
18Upper Template
18Plate, Damper
188169479 Whirlpool Microwave Screw
18Miscellaneous
