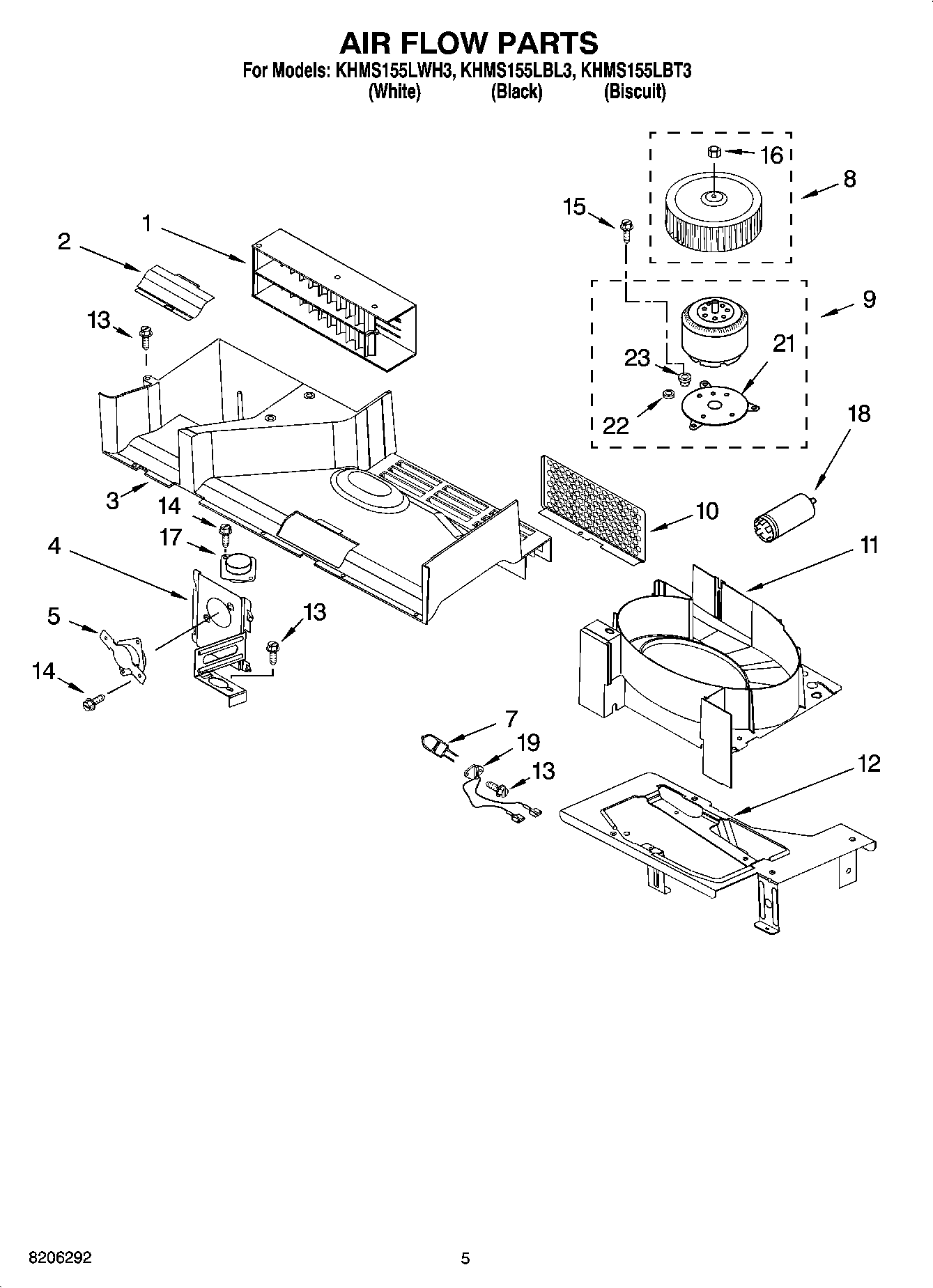

KHMS155LWH3 04 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Deflector, Air
2	Reflector, Air
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
7	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
8	Wheel, Fan
9	Motor, Fan
10	Shield
11	Housing, Fan
12	Bracket, Fan (Not Serviced)
13	Screw
14	Screw
15	Screw
16	Nut
17	Humidity, Sensor
18	Filter
19	Holder, Lamp
21	Adapter, Motor
22	Plate, Damper
23	Cushion, Mtr
