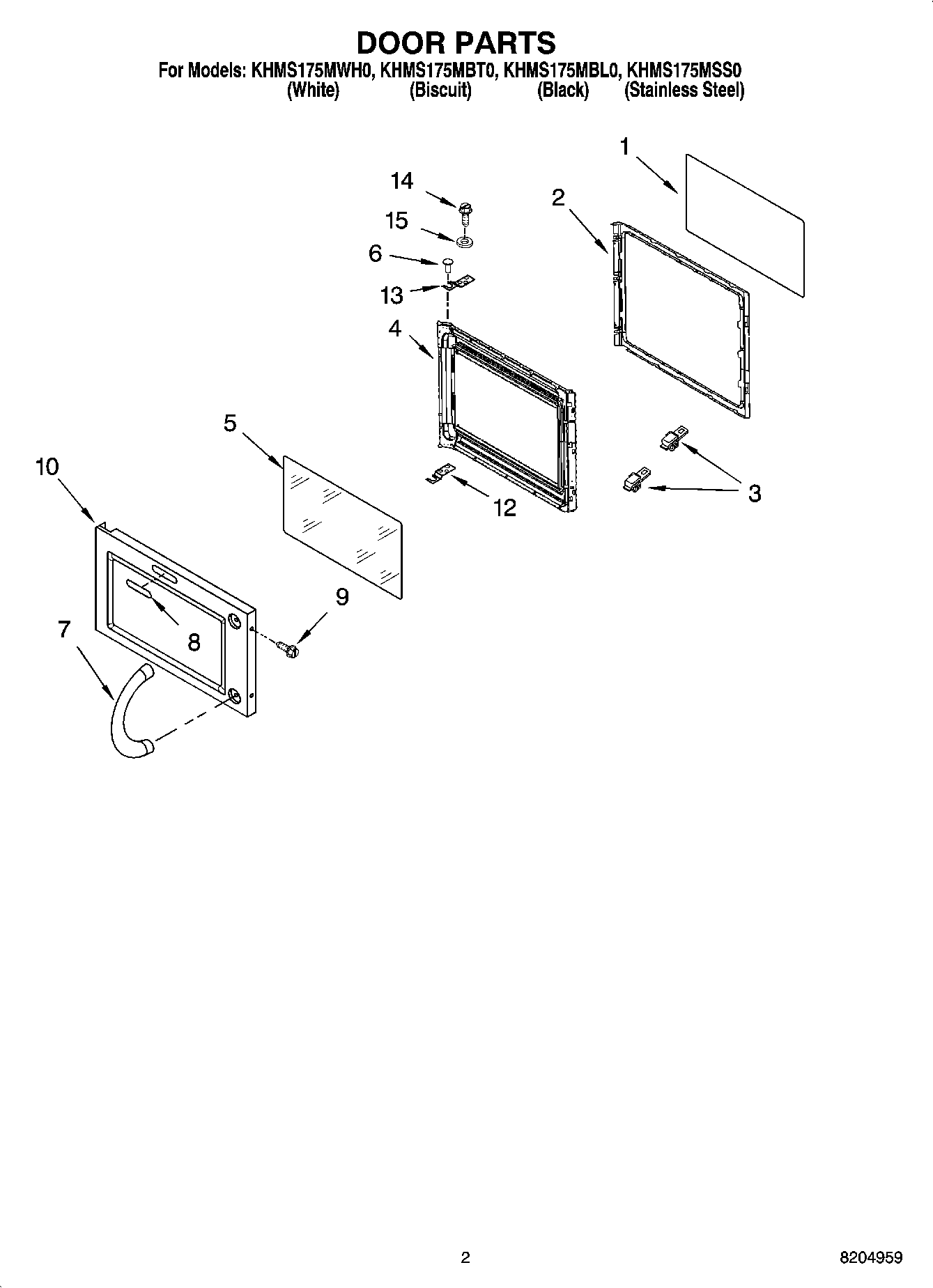

KHMS175MBT0 02 – DOOR PARTSadmin2025-04-26T10:58:23+00:00KHMS175MBT0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Film, Back Included with 4 |
| 2 | Frame, Inner |
| 3 | Latch, Door |
| 4 | Body Asy, Door Includes 1 (Biscuit) |
| 4 | Body Asy, Door Includes 1 (White) |
| 4 | Body Asy, Door Includes 1 (Black) |
| 5 | Glass, Outer |
| 6 | Pivot, Door |
| 7 | Handle (Stainless) |
| 7 | Handle (Black) |
| 7 | Handle (Biscuit) |
| 7 | Handle (White) |
| 8 | Nameplate |
| 9 | 8169479 Whirlpool Microwave Screw |
| 10 | Frame Asy, Outer (Black) |
| 10 | Frame Asy, Outer (Biscuit) |
| 10 | Frame Asy, Outer (White) |
| 10 | Frame Asy, Outer (Stainless) |
| 12 | Lower Hinge |
| 13 | Upper Hinge |
| 14 | 8169480 Whirlpool Microwave Screw |
| 15 | WP8533914 Whirlpool Lock |
