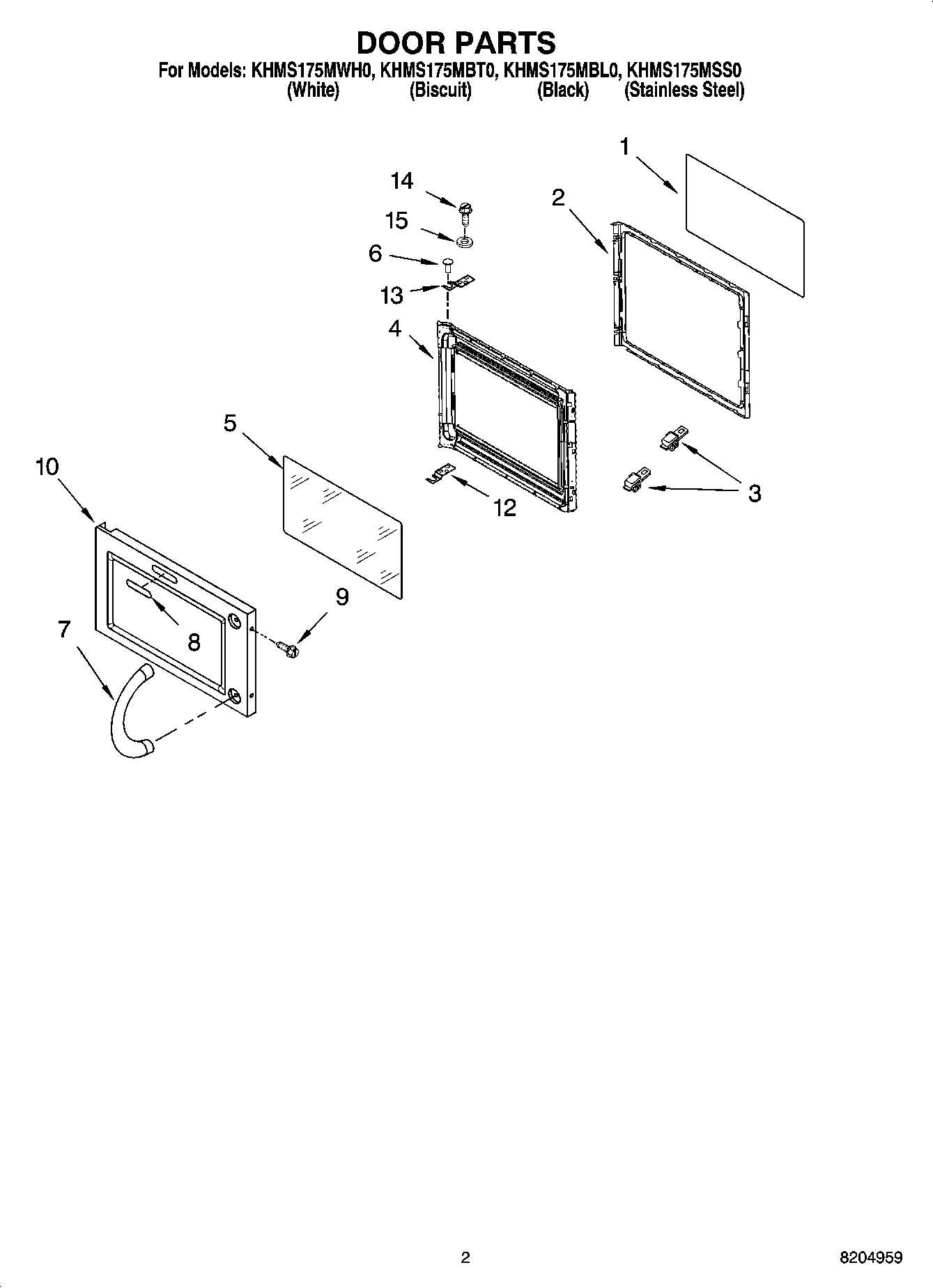

KHMS175MSS0 02 – DOOR PARTS

KHMS175MSS0 02 – DOOR PARTS

Written by

in

KHMS175MSS0 02 – DOOR PARTS

Products

PositionProduct
1Film, Back Included with 4
2Frame, Inner
3Latch, Door
4Body Asy, Door Includes 1 (Biscuit)
4Body Asy, Door Includes 1 (Black)
4Body Asy, Door Includes 1 (White)
5Glass, Outer
6Pivot, Door
7Handle (Stainless)
7Handle (Black)
7Handle (Biscuit)
7Handle (White)
8Nameplate
98169479 Whirlpool Microwave Screw
10Frame Asy, Outer (Black)
10Frame Asy, Outer (Biscuit)
10Frame Asy, Outer (White)
10Frame Asy, Outer (Stainless)
12Lower Hinge
13Upper Hinge
148169480 Whirlpool Microwave Screw
15WP8533914 Whirlpool Lock
