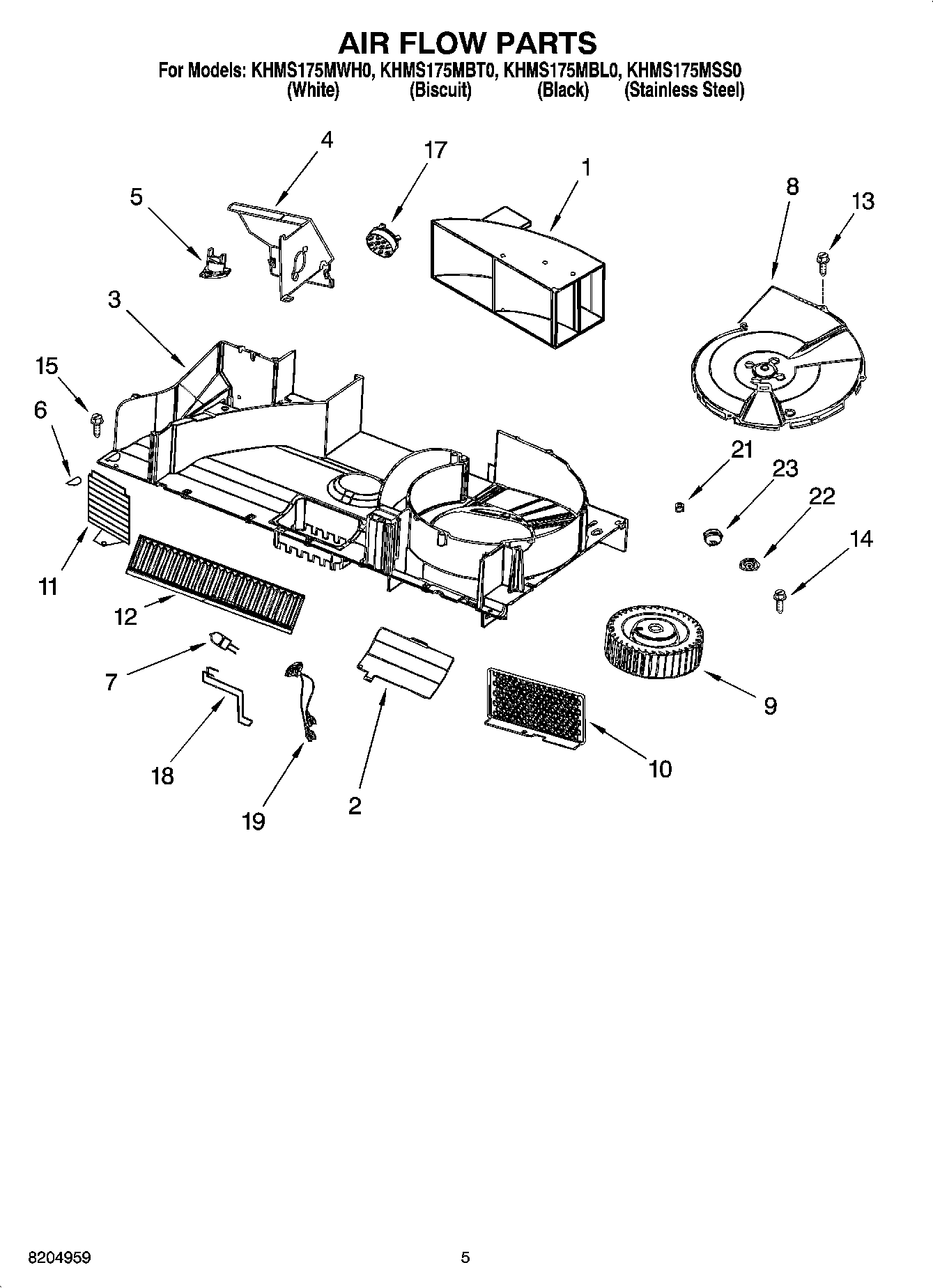

KHMS175MSS0 04 – AIR FLOW PARTSadmin2025-04-26T10:58:32+00:00KHMS175MSS0 04 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | Deflector, Air |
| 2 | Cover, Lamp |
| 3 | Duct, Air |
| 4 | Bracket, Thermostat |
| 5 | Thermostat |
| 6 | Cover |
| 7 | 8204670 Whirlpool Microwave Halogen Lamp 10W 12V |
| 8 | Cover, Motor |
| 9 | Motor, Fan Assy |
| 10 | Shield |
| 11 | SHIELD |
| 12 | Filter, Fan Hood |
| 13 | WP4393834 Whirlpool Microwave Screw |
| 14 | SCREW |
| 15 | Screw |
| 17 | Humidity, Sensor |
| 18 | Spring |
| 19 | Socket, Halogen Light |
| 21 | Spacer, Copper Pipe |
| 22 | Plate, Damper |
| 23 | Cushion, Mtr |
