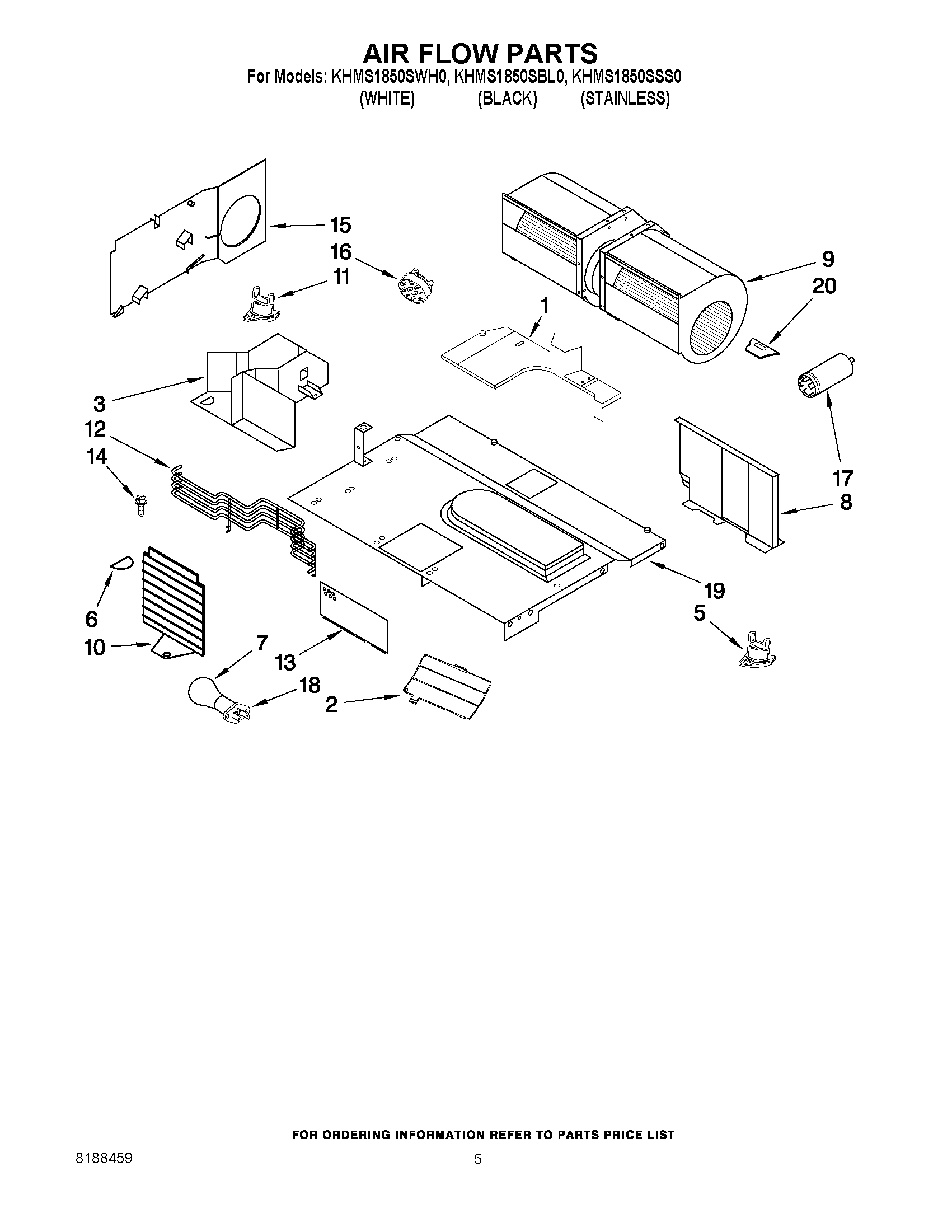

KHMS1850SBL0 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Cover, Lamp
3	Duct, Air
5	Thermostat
6	Cover
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Air Guide, Back
9	Motor, Fan Assy
10	SHIELD
11	Thermostat
12	Shield (Middle)
13	Shield (Right)
14	Screw
15	Air Guide (Left)
15	Air Guide (Right)
16	Humidity, Sensor
17	Filter
18	8169539 Whirlpool Microwave Light Bulb Socket and Housing
19	Base Plate, Air Guide
20	Socket, Motor Wire
