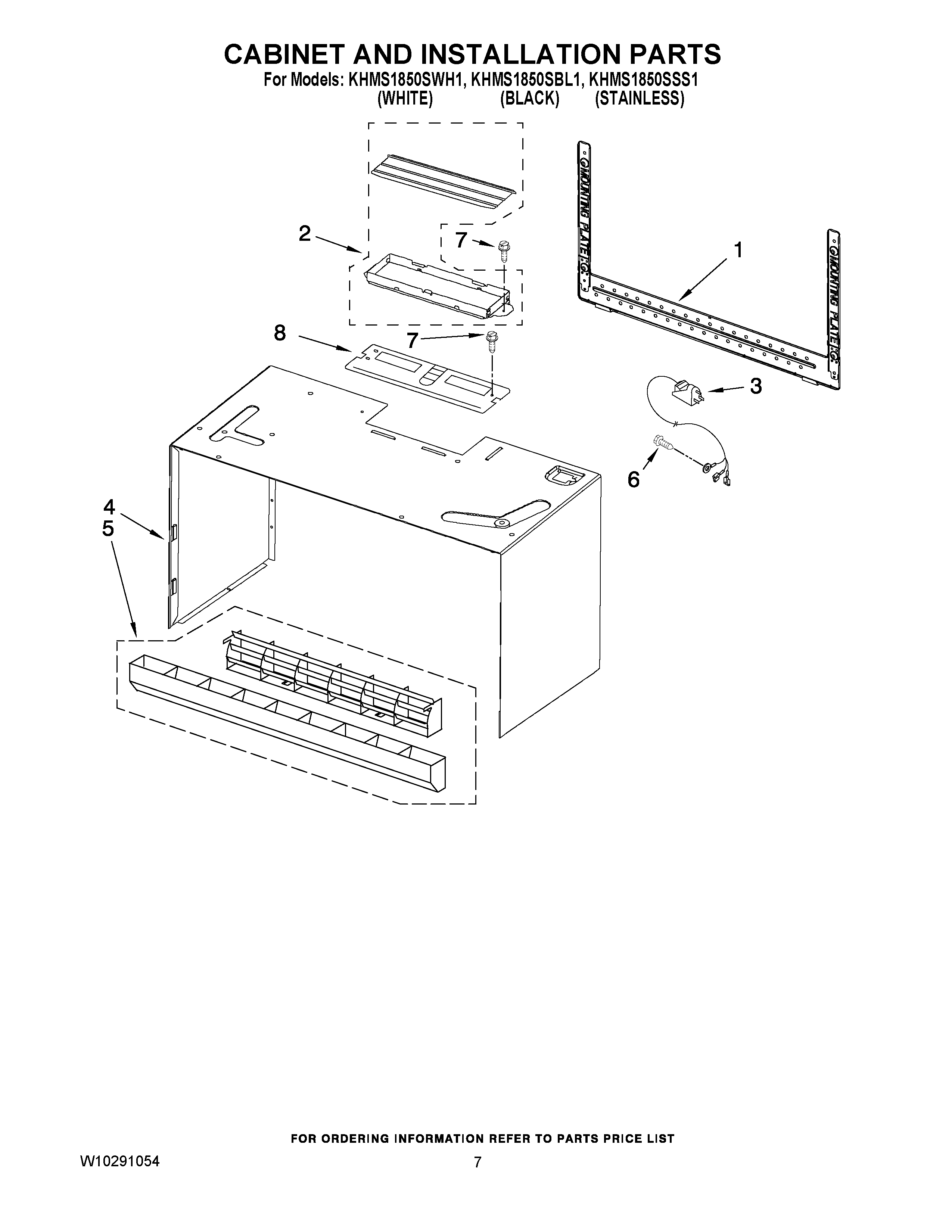

KHMS1850SSS1 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	LAMP/TT WIRE ASSY.
NI	SCREW, TOP MOUNTNG
NI	Therm. Harns-Wire
NI	Wire-Grnd, AC Line
NI	8206185 Whirlpool Microwave Wire Harness
NI	H.V. WIRE ASSEMBLY
NI	MAIN WIRE ASSY
NI	8205948 Whirlpool Microwave Mount
NI	W10539840 Whirlpool Microwave Wire Harness
NI	TEMPLATE, UPPER
1	WPW10269225 Whirlpool Bracket Mounting
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	CASE, OUTER (BLACK)
4	Case, Outer (White)
5	Grille, Vent (Black)
5	Grille, Vent (White)
5	W10250593 Whirlpool Microwave Vent Grille
6	4393836 Whirlpool Microwave Screw
7	W11380570 Whirlpool Microwave Screw
8	Cover, Fan Mtr
