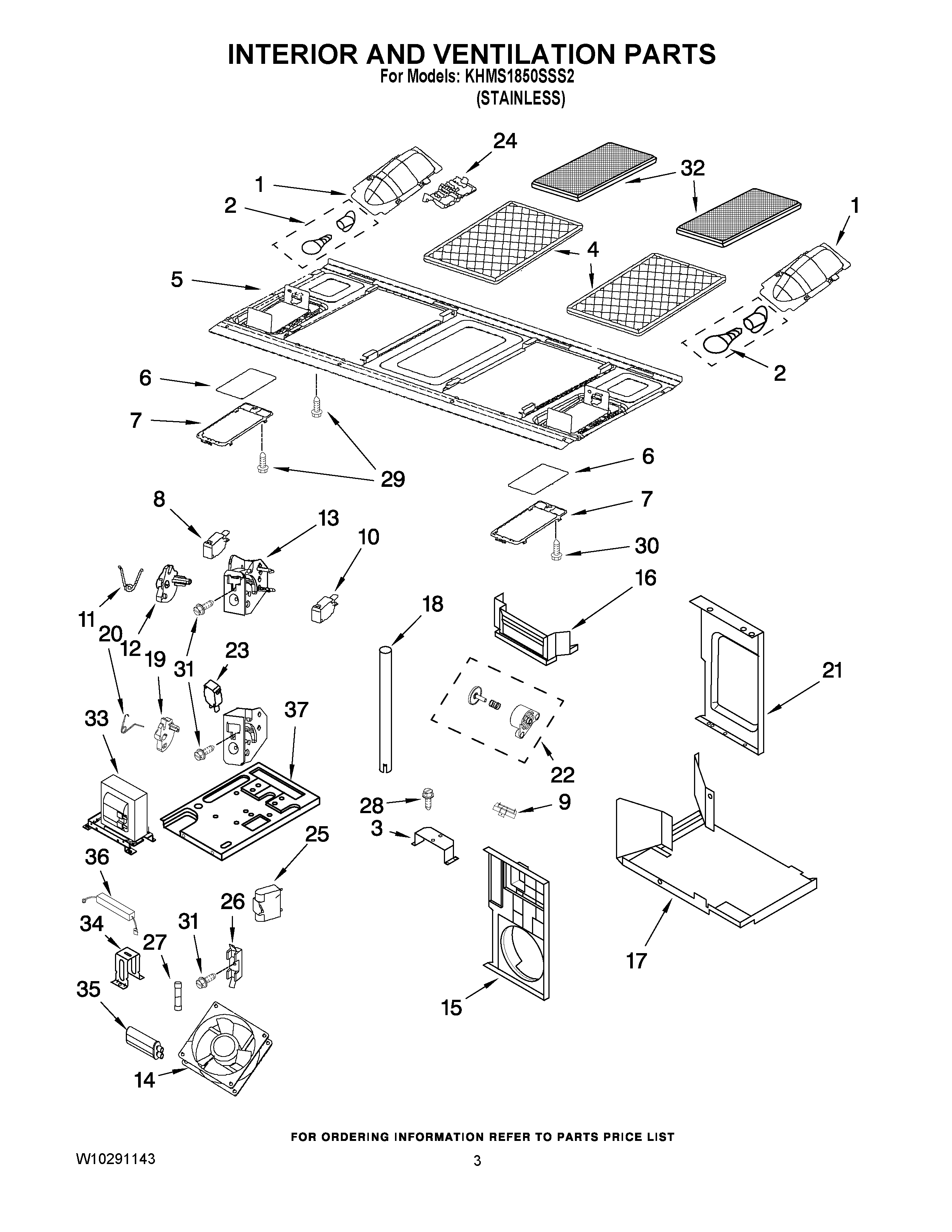

KHMS1850SSS2 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp
2	W10709921 Whirlpool Halogen Light Bulb
3	TCO, Bracket Assembly
4	W10113040A Whirlpool Grease Filter Aluminum
5	PLATE, BOTTOM
6	Glass, Lamp
7	Holder, Glass
8	W10211974 Whirlpool Microwave Door Interlock Micro Switch
9	Resistor
10	W10269458 Whirlpool Microwave Door Switch
11	Spring, Interlock
12	Plate, Cam
13	Support, Interlock
14	Fan, DC 12 Volt
15	HOUSING, FAN
16	SHIELD,WTR.SPILL.
17	DIFFUSER, HOUSING
18	TUBE,WATERSHOOT
19	PLATE, CAM
20	Spring, Interlock
21	Plate, Side
22	Piston Assembly
23	W10211972 Whirlpool Microwave Switch
24	Cover, Terminal
25	W11405832 Whirlpool Microwave Capacitor
26	HOLDER, FUSE
27	FUSE-THRML
28	SCREW
29	W11380570 Whirlpool Microwave Screw
30	SCREW
31	8169479 Whirlpool Microwave Screw
32	8205146A Whirlpool Microwave Oven Range Vent Hood Charcoal Filter
33	Transformer, H.V.
34	Bracket, Capacitor
35	Capacitor, H.V.
36	W11256462 Whirlpool Microwave Diode
37	Chassis
