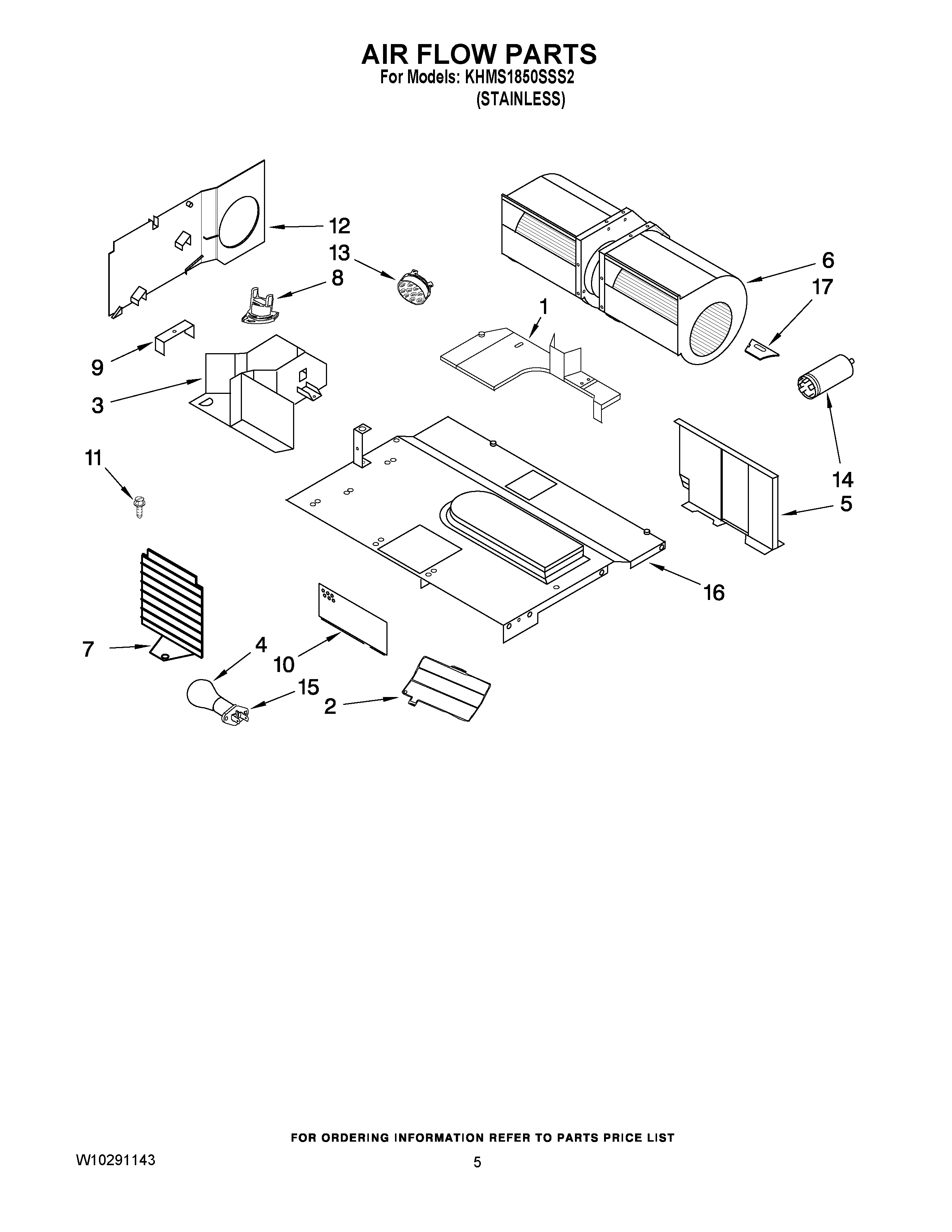

KHMS1850SSS2 04 – AIR FLOW PARTSadmin2025-04-26T11:01:02+00:00KHMS1850SSS2 04 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | DEFLECTOR, AIR |
| 2 | Cover, Lamp |
| 3 | Duct, Air |
| 4 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 5 | Air Guide, Back |
| 6 | Motor, Fan Assy |
| 7 | SHIELD |
| 8 | THRMST, CAVITY |
| 9 | CLAPBOARD, METAL |
| 10 | Shield (Right) |
| 11 | Screw |
| 12 | Air Guide (Left) |
| 12 | Air Guide (Right) |
| 13 | Humidity, Sensor |
| 14 | Filter |
| 15 | WPW10210878 Whirlpool Microwave LMP Housing |
| 16 | Base Plate, Air Guide |
| 17 | SOCKET, MOTOR WIRE |
