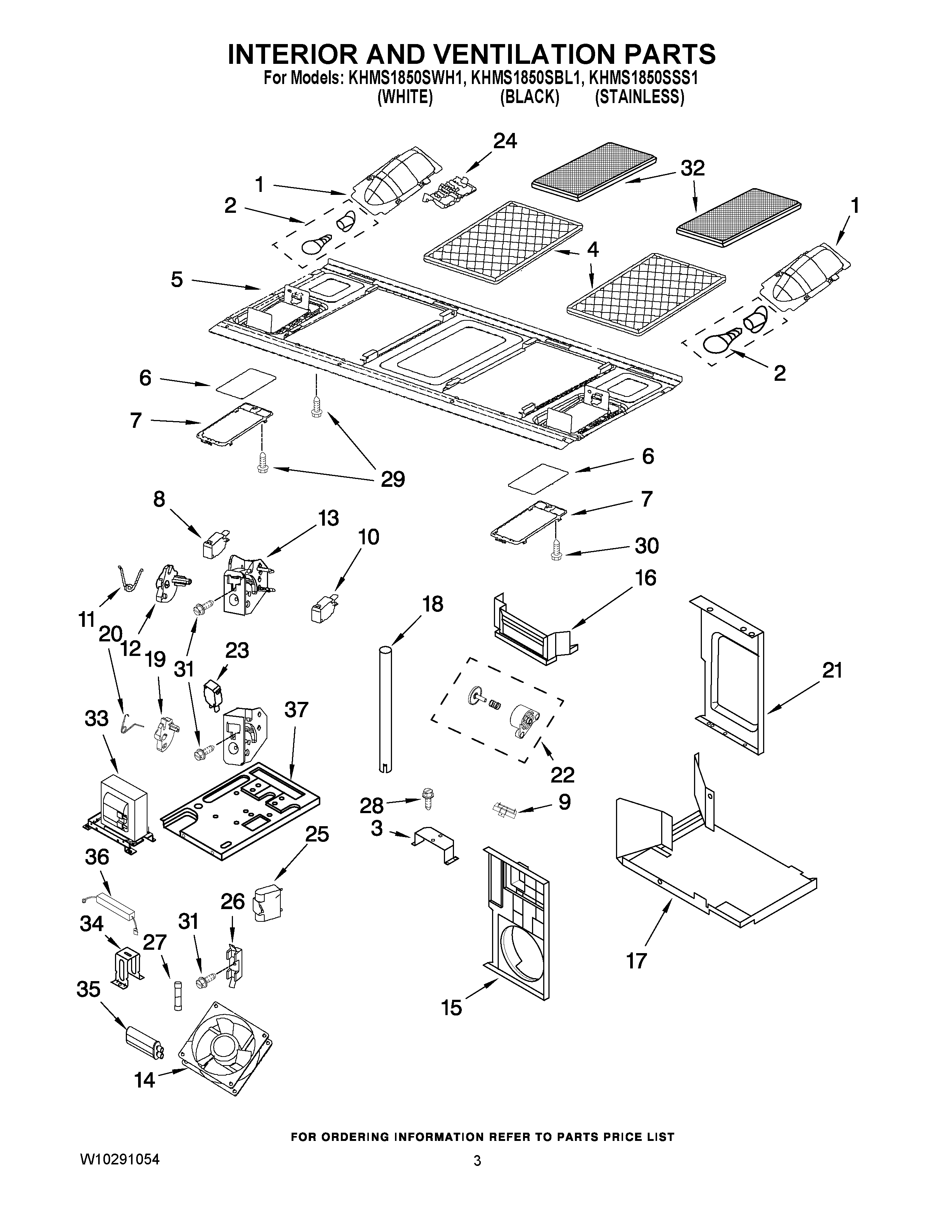

KHMS1850SWH1 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Reflector, Lamp
2W10709921 Whirlpool Halogen Light Bulb
3TCO, Bracket Assembly
4W10113040A Whirlpool Grease Filter Aluminum
5PLATE, BOTTOM
6Glass, Lamp
7Holder, Glass
8W10211974 Whirlpool Microwave Door Interlock Micro Switch
9Resistor
10W10269458 Whirlpool Microwave Door Switch
11Spring, Interlock
12Plate, Cam
13Support, Interlock
14Fan, DC 12 Volt
15HOUSING, FAN
16SHIELD,WTR.SPILL.
17DIFFUSER, HOUSING
18TUBE,WATERSHOOT
19PLATE, CAM
20Spring, Interlock
21Plate, Side
22Piston Assembly
23W10211972 Whirlpool Microwave Switch
24Cover, Terminal
25W11405832 Whirlpool Microwave Capacitor
26HOLDER, FUSE
27FUSE-THRML
28SCREW
29W11380570 Whirlpool Microwave Screw
30SCREW
318169479 Whirlpool Microwave Screw
328205146A Whirlpool Microwave Oven Range Vent Hood Charcoal Filter
33Transformer, H.V.
34Bracket, Capacitor
35Capacitor, H.V.
36W11256462 Whirlpool Microwave Diode
37Chassis
