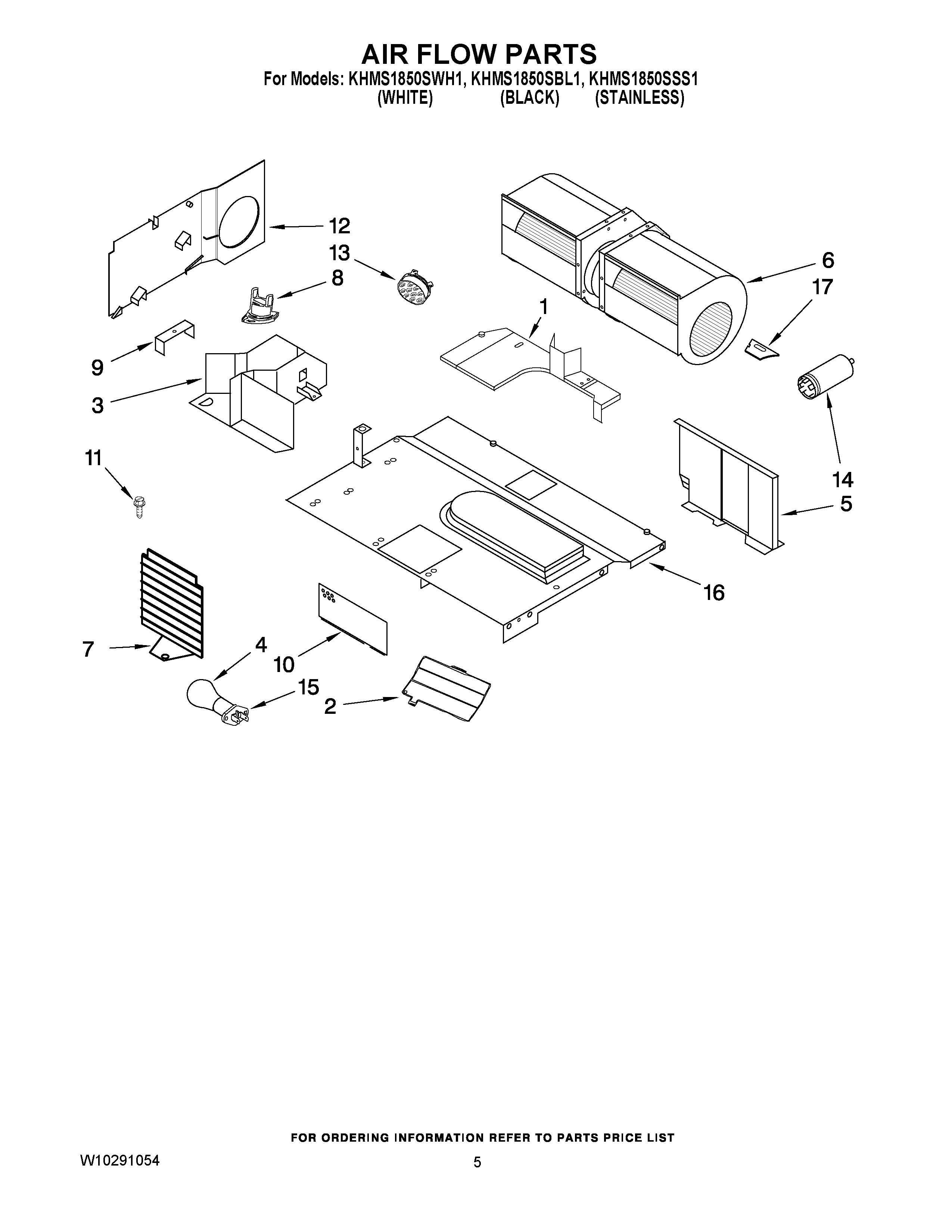

KHMS1850SWH1 04 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	Cover, Lamp
3	Duct, Air
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	Air Guide, Back
6	Motor, Fan Assy
7	SHIELD
8	THRMST, CAVITY
9	CLAPBOARD, METAL
10	Shield (Right)
11	Screw
12	Air Guide (Left)
12	Air Guide (Right)
13	Humidity, Sensor
14	Filter
15	WPW10210878 Whirlpool Microwave LMP Housing
16	Base Plate, Air Guide
17	SOCKET, MOTOR WIRE
