KHMS1850SWH1 05 – MAGNETRON AND TURNTABLE PARTS

KHMS1850SWH1 05 – MAGNETRON AND TURNTABLE PARTS

Written by

in

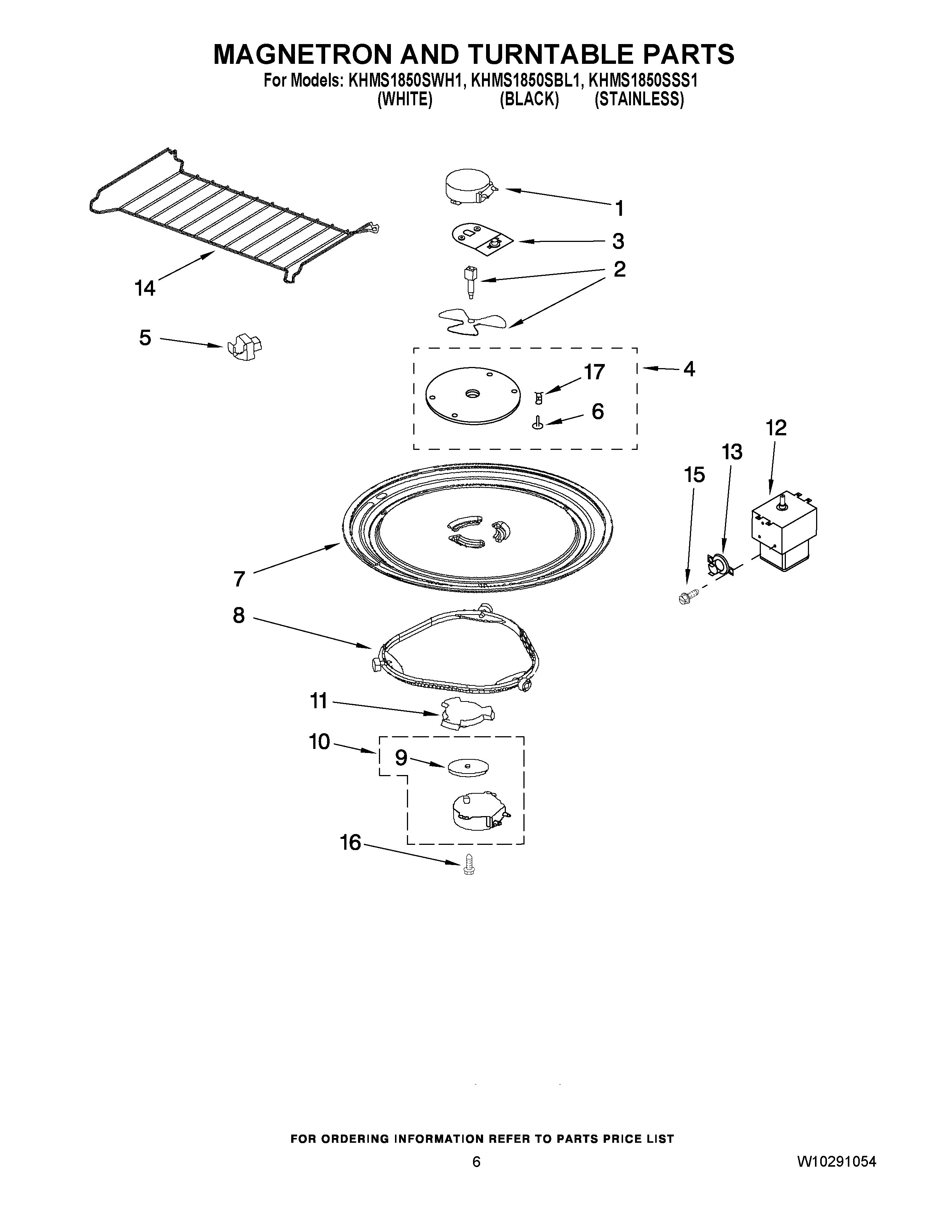

KHMS1850SWH1 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Stirrer Shaft/Blade
3Thermostat/Bracket
4Cover, Inlet
5W10840795 Whirlpool Microwave Support
5W10840759 Whirlpool Microwave Support
5W10840794 Whirlpool Clip
6Nail, Plastic
74393799 Whirlpool Microwave Glass Tray
8W11252182 Whirlpool Glass Tray Support
98184109 Whirlpool Microwave Spacer
10WPW10466420 Whirlpool Turntable Motor
11DRIVER,TURNTABLE
12W10222507 Whirlpool Microwave Magnetron
13Thermostat
14Rack
15Screw
164393832 Whirlpool Microwave Screw
17Bushings (4 of each)
