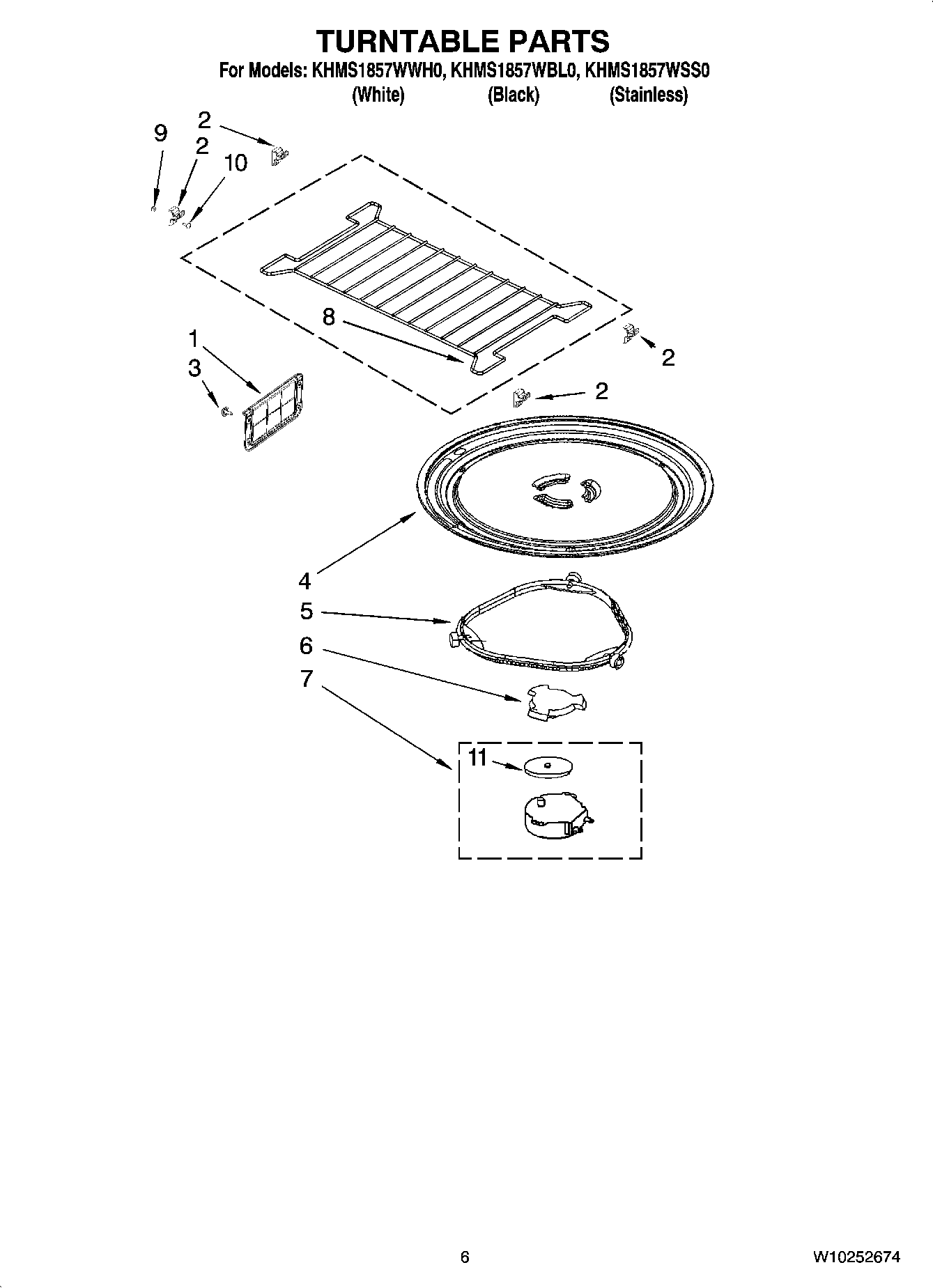

KHMS1857WWH0 05 – TURNTABLE PARTS

KHMS1857WWH0 05 – TURNTABLE PARTS

Written by

in

KHMS1857WWH0 05 – TURNTABLE PARTS

Products

PositionProduct
1COVER, MICA
2W10840759 Whirlpool Microwave Support
3W11319886 Whirlpool Microwave Stir Rivet
44393799 Whirlpool Microwave Glass Tray
5W11252182 Whirlpool Glass Tray Support
6W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
7W11661547 Whirlpool Turntable Motor
8W10249618 Whirlpool Microwave Meal Rack
9W10107790 Whirlpool Microwave Washer
10SCREW
118184109 Whirlpool Microwave Spacer
