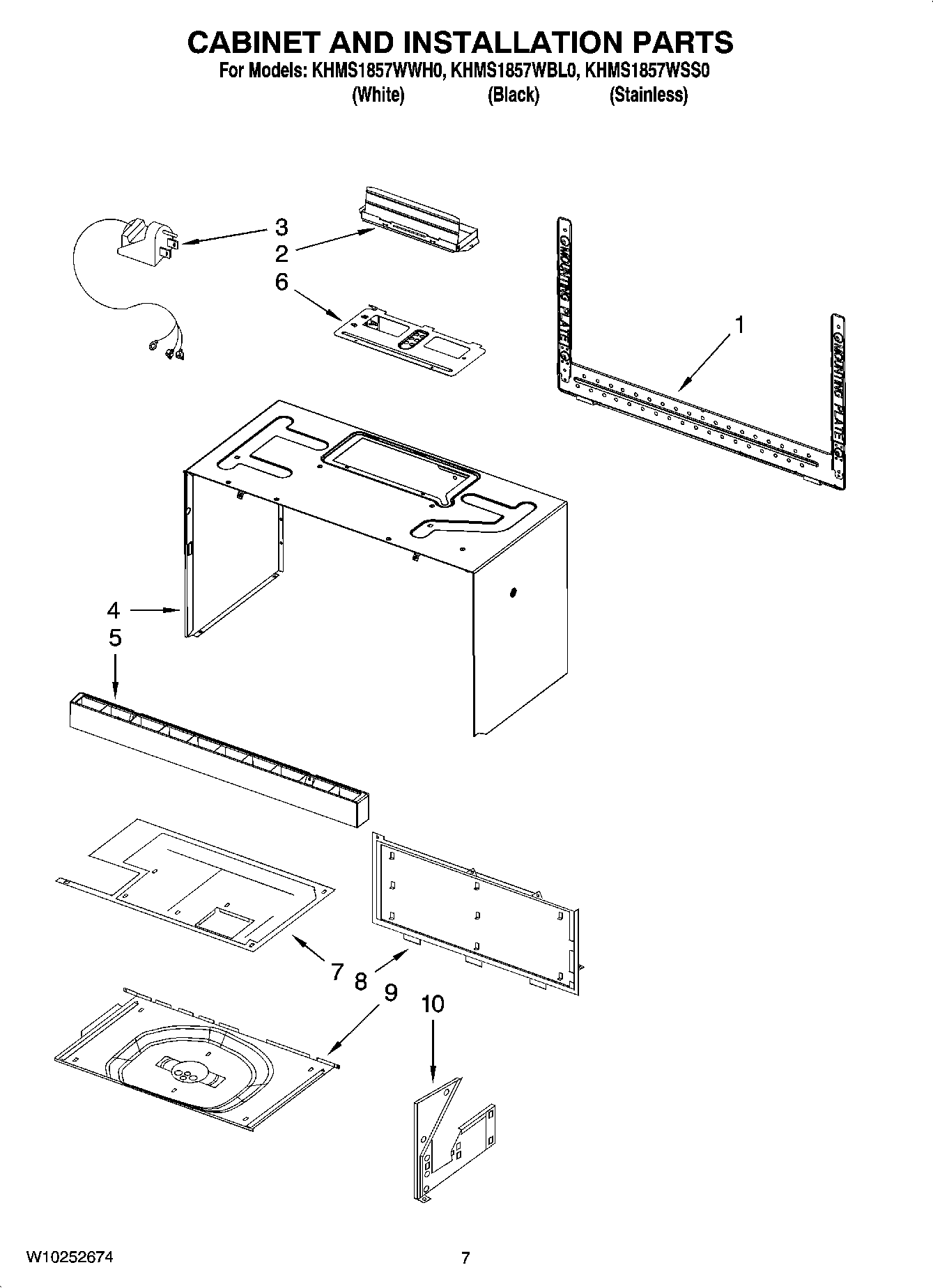

KHMS1857WWH0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
WP8169704 Whirlpool Screw
Main Harness
MISCELLANEOUS, HARNESS, HEAD LAMP AND TURNTABLE ASSEMBLY
Miscellaneous
Grnd Wire, Filter
8205948 Whirlpool Microwave Mount
W10539840 Whirlpool Microwave Wire Harness
W10190018 Whirlpool Microwave Template
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
38206388 Whirlpool Microwave Power Cord
4Case, Outer (White)
4WPW10245176 Whirlpool Microwave Cabinet Wrapper
5W10245216 Whirlpool Microwave Vent Grille
5W10245218 Whirlpool Microwave Vent Grille
5W10245217 Whirlpool Microwave Vent Grill
6COVER, HOOD FAN MOTOR
7W10248268 Whirlpool Microwave Plate
8W10248267 Whirlpool Plate
9ASSEMBLY, BOTTOM PLATE
10W10248279 Whirlpool Plate
