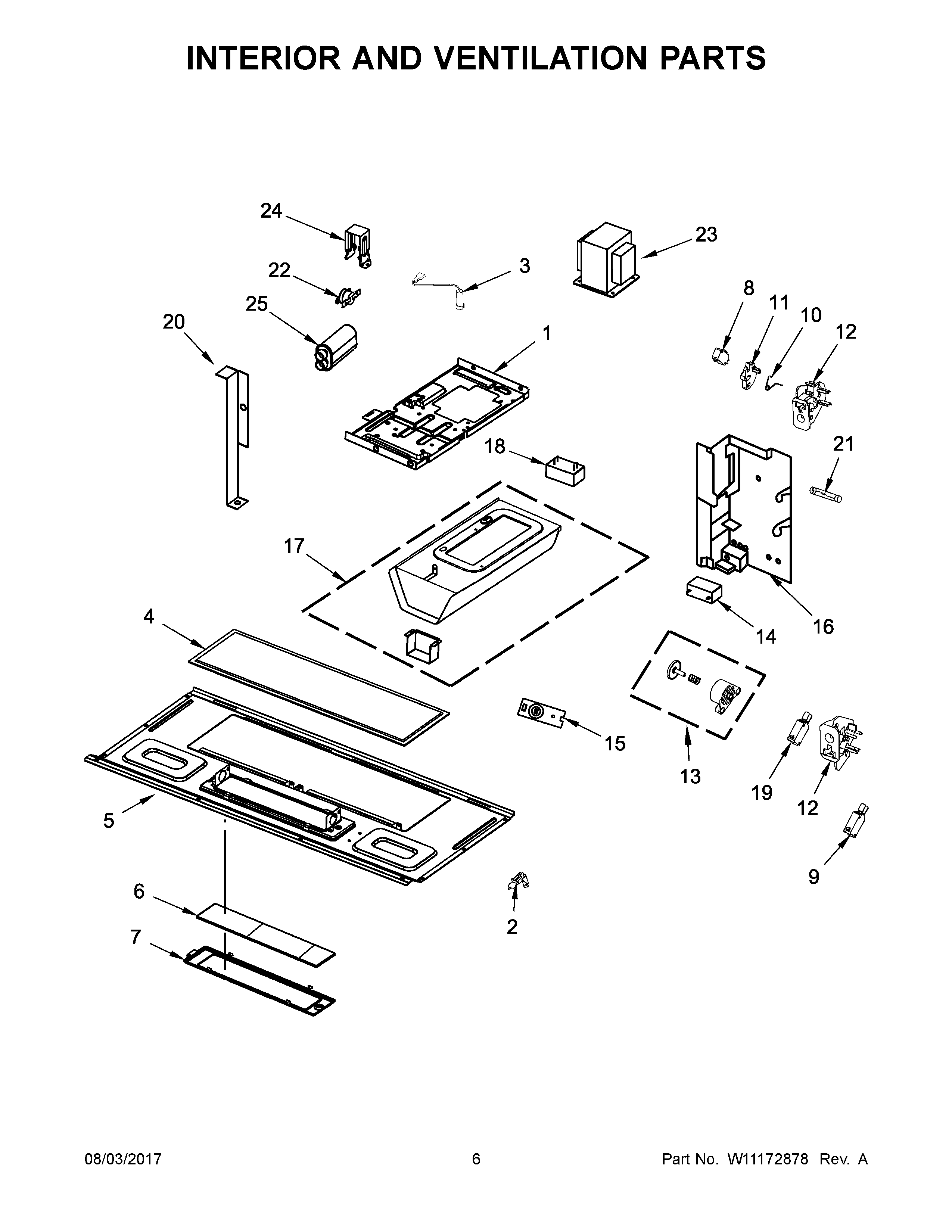

KHMS2040BB2 04 – INTERIOR AND VENTILATION PARTS

KHMS2040BB2 04 – INTERIOR AND VENTILATION PARTS

Written by

in

KHMS2040BB2 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Chassis
2W10709921 Whirlpool Halogen Light Bulb
3W11256462 Whirlpool Microwave Diode
4W10208631A Whirlpool Microwave Grease Filter
5W10250588 Whirlpool Microwave Base
6WPW10210875 Whirlpool Microwave Lamp Glass Cover
7HOLDER, GLASS
8W10269460 Whirlpool Microwave Door Switch
9W10269458 Whirlpool Microwave Door Switch
10W10156812 Whirlpool Spring
11W10562613 Whirlpool Microwave Interlock Cam Assembly
12WP8206419 Whirlpool Microwave Top Interlock Support
12AWPW10156813 Whirlpool Microwave Bottom Interlock Support
13W10197758 Whirlpool Microwave Piston
14W11405832 Whirlpool Microwave Capacitor
15W10163422 Whirlpool Microwave Thermistor
16AIR GUIDE, LOWER
17W10310720 Whirlpool Microwave Base
18W10342990 Whirlpool Microwave Resistor
19W10727360 Whirlpool Microwave Door Switch
20W10313275 Whirlpool Microwave Support Bracket
21FUSE-THRML
22W10864742 Whirlpool Microwave Thermostat Fix
23W10836753 Whirlpool Microwave Transformer
24W10532063 Whirlpool Microwave Bracket
25WPW10574736 Whirlpool Microwave MG Capacitor
