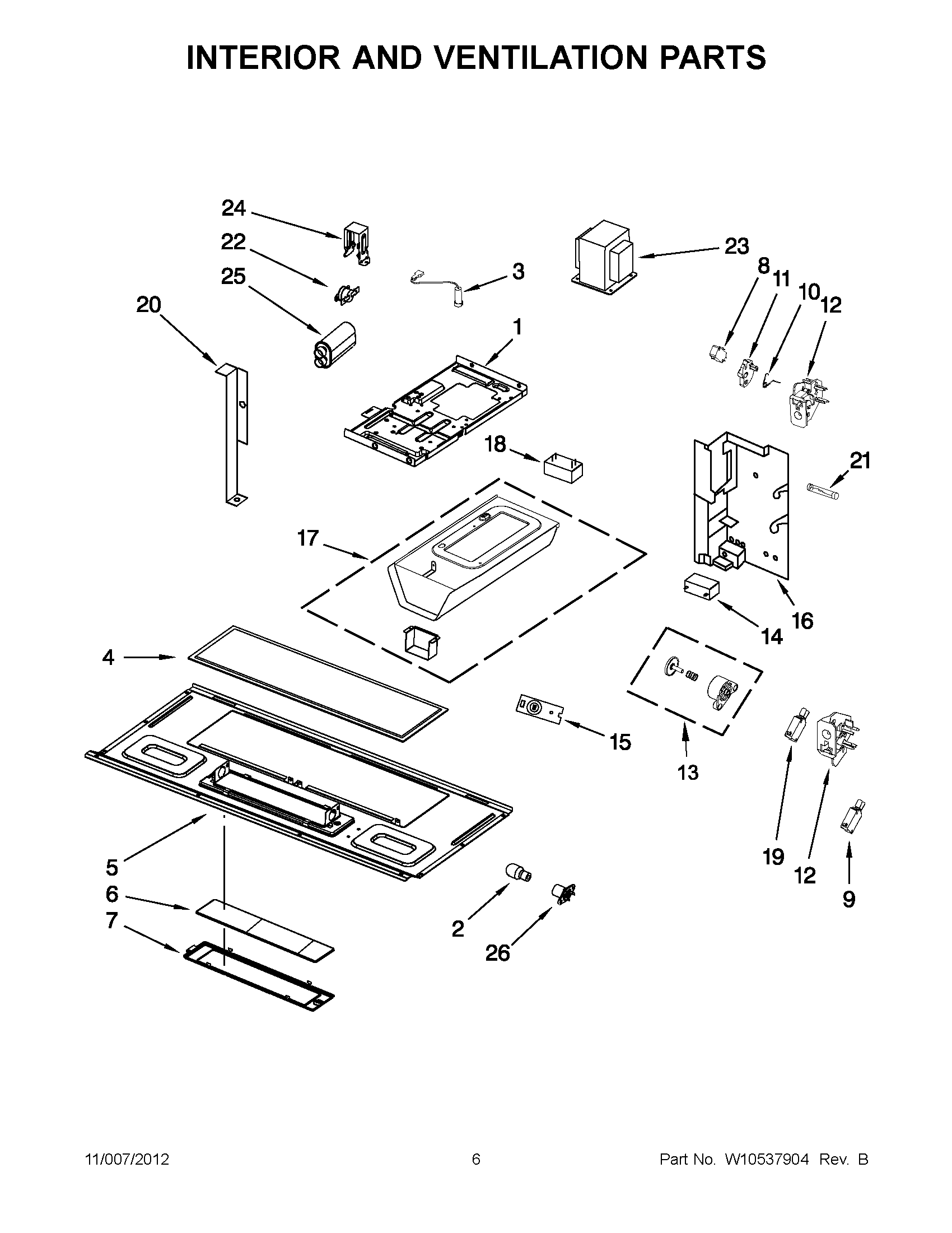

KHMS2040BSS0 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Chassis
2	W10709921 Whirlpool Halogen Light Bulb
3	W11256462 Whirlpool Microwave Diode
4	W10208631A Whirlpool Microwave Grease Filter
5	W10250588 Whirlpool Microwave Base
6	WPW10210875 Whirlpool Microwave Lamp Glass Cover
7	HOLDER, GLASS
8	W10269460 Whirlpool Microwave Door Switch
9	W10269458 Whirlpool Microwave Door Switch
10	W10156812 Whirlpool Spring
11	W10562613 Whirlpool Microwave Interlock Cam Assembly
12	WP8206419 Whirlpool Microwave Top Interlock Support
12	WPW10156813 Whirlpool Microwave Bottom Interlock Support
13	W10197758 Whirlpool Microwave Piston
14	W11405831 Whirlpool Microwave Capacitor
15	W10163422 Whirlpool Microwave Thermistor
16	Plate, Side
17	W10310720 Whirlpool Microwave Base
18	W10342990 Whirlpool Microwave Resistor
19	W10727360 Whirlpool Microwave Door Switch
20	W10313275 Whirlpool Microwave Support Bracket
21	FUSE-THRML
22	W10864742 Whirlpool Microwave Thermostat Fix
23	Transformer, H.V.
24	W10532063 Whirlpool Microwave Bracket
25	CAPACTR-MG
26	Holder, Lamp
