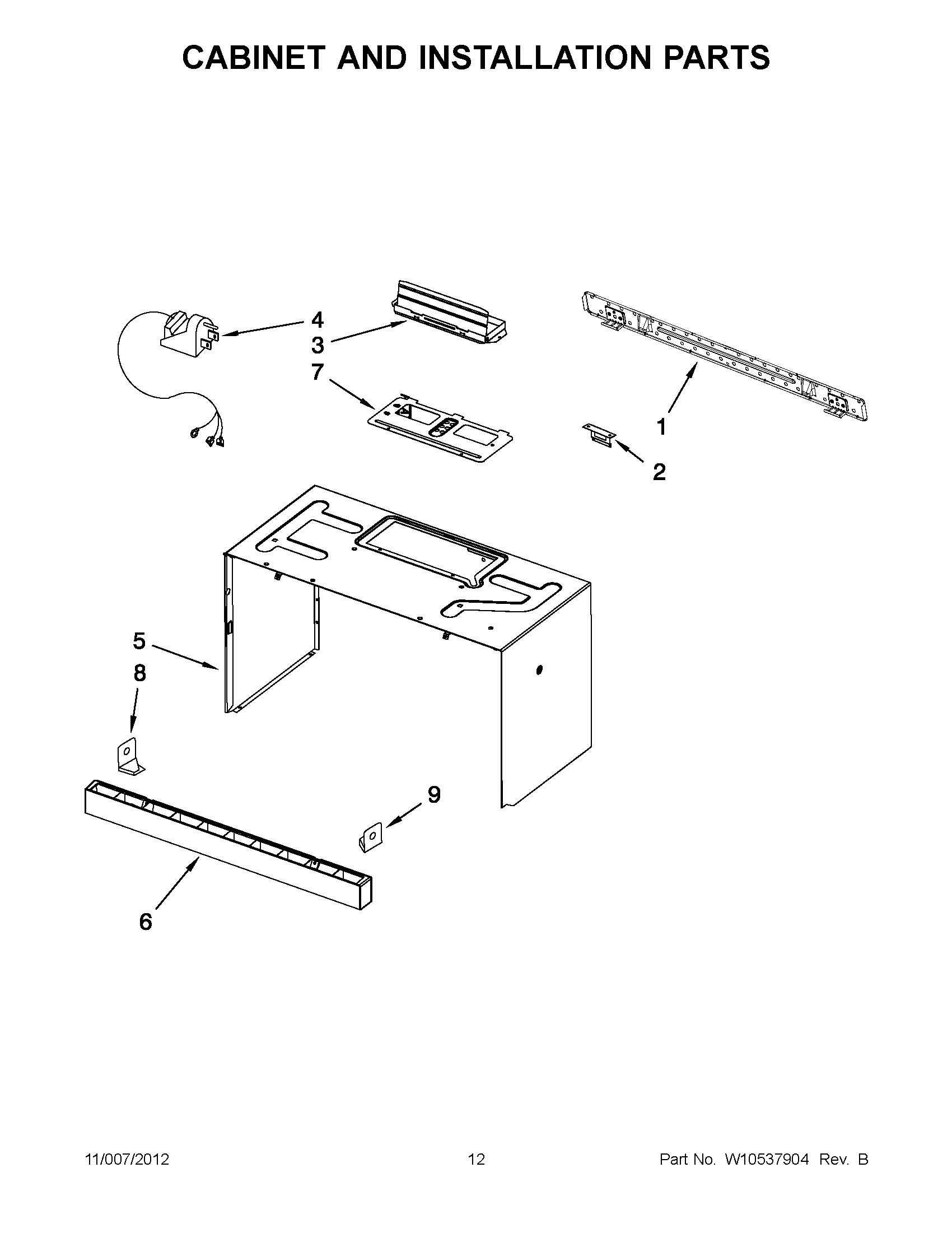

KHMS2040BSS0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10556400 Whirlpool Microwave Wire Harness
NIW10399322 Whirlpool Microwave Wire Harness
NIGrnd Wire, Filter
NI8205948 Whirlpool Microwave Mount
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIMISCELLANEOUS, HARNESS, HEAD LAMP AND TURNTABLE ASSEMBLY
NIW10539840 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5WPW10462001 Whirlpool Microwave Cab Wrapper
5WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
6W10245216 Whirlpool Microwave Vent Grille
6W10245218 Whirlpool Microwave Vent Grille
6W10245217 Whirlpool Microwave Vent Grill
7COVER, HOOD FAN MOTOR
8W10810989 Whirlpool Microwave Mounting Bracket
8W11026306 Whirlpool Microwave Mounting Bracket
9W10703282 Whirlpool Microwave Mounting Bracket
9W10830163 Whirlpool Microwave Mounting Bracket
