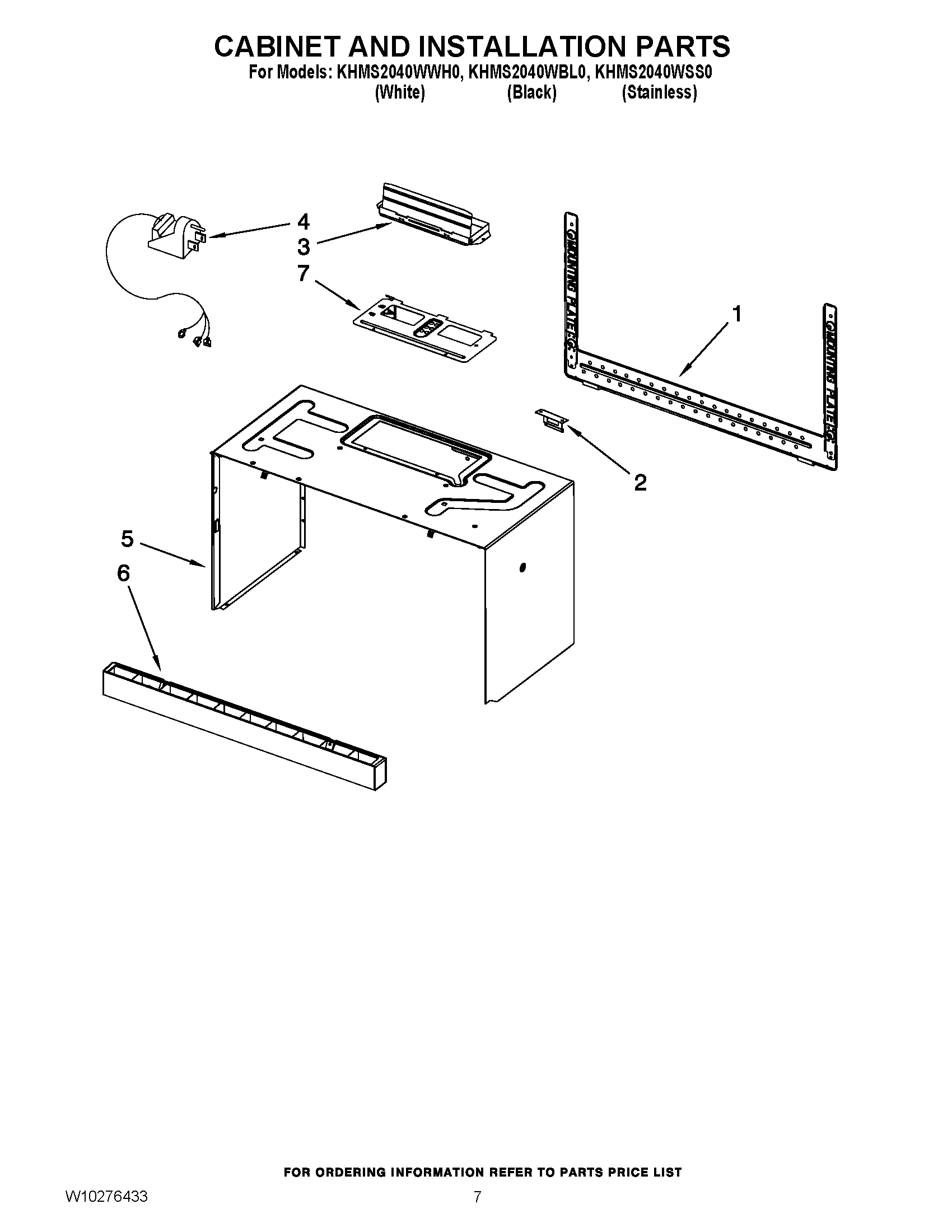

KHMS2040WWH0 06 – CABINET AND INSTALLATION PARTS
Written by
in
KHMS2040WWH0 06 – CABINET AND INSTALLATION PARTS
Products
Position
Product
NI
WP8169704 Whirlpool Screw
NI
MAIN HARNESS
NI
Grnd Wire, Filter
NI
8205948 Whirlpool Microwave Mount
NI
W10539840 Whirlpool Microwave Wire Harness
NI
MISCELLANEOUS, HARNESS, HEAD LAMP AND TURNTABLE ASSEMBLY
NI
W10190018 Whirlpool Microwave Template
1
W11025649 Whirlpool Microwave Mounting Plate
2
8206385 Whirlpool Microwave Wire Clip
3
W10843943 Whirlpool Microwave Vent Damper
4
8206388 Whirlpool Microwave Power Cord
5
WPW10244765 Whirlpool Microwave Cabinet Wrapper
5
WPW10245176 Whirlpool Microwave Cabinet Wrapper
6
W10245217 Whirlpool Microwave Vent Grill
6
W10245218 Whirlpool Microwave Vent Grille
6
W10245216 Whirlpool Microwave Vent Grille
7
COVER, HOOD FAN MOTOR
←
