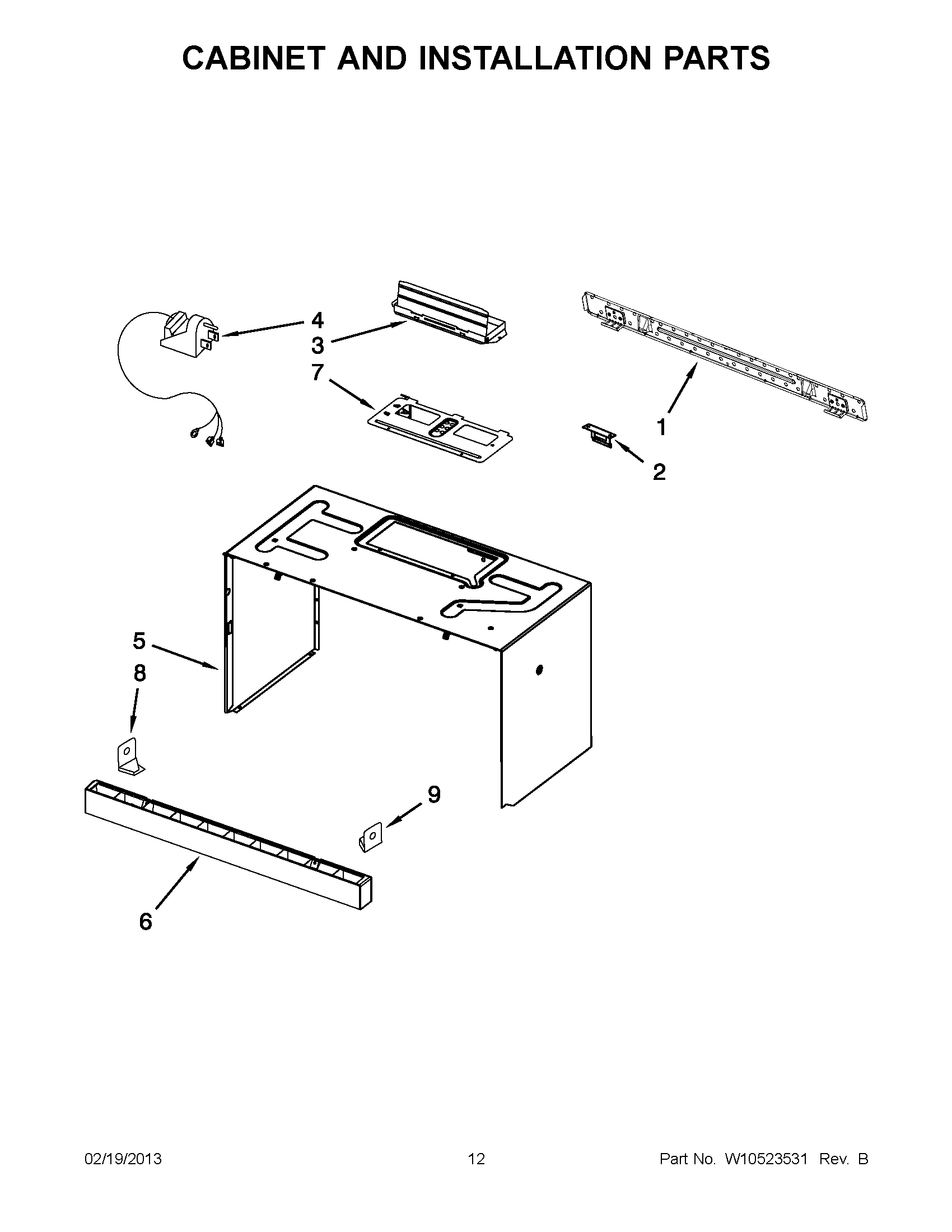

KHMS2040WWH2 06 – CABINET AND INSTALLATION PARTS

KHMS2040WWH2 06 – CABINET AND INSTALLATION PARTS

Written by

in

KHMS2040WWH2 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIMISCELLANEOUS, HARNESS, HEAD LAMP AND TURNTABLE ASSEMBLY
NIW10556400 Whirlpool Microwave Wire Harness
NIW10399322 Whirlpool Microwave Wire Harness
NIGrnd Wire, Filter
NI8205948 Whirlpool Microwave Mount
NIW10422835 Whirlpool Wire Harness
NIW10190018 Whirlpool Microwave Template
NIW10539840 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5WPW10462001 Whirlpool Microwave Cab Wrapper
5WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
6GRILLE, VENT (STAINLESS)
6W10245218 Whirlpool Microwave Vent Grille
6W10245217 Whirlpool Microwave Vent Grill
7COVER, HOOD FAN MOTOR
8W11026306 Whirlpool Microwave Mounting Bracket
8W10830163 Whirlpool Microwave Mounting Bracket
9W10703282 Whirlpool Microwave Mounting Bracket
9W10810989 Whirlpool Microwave Mounting Bracket
