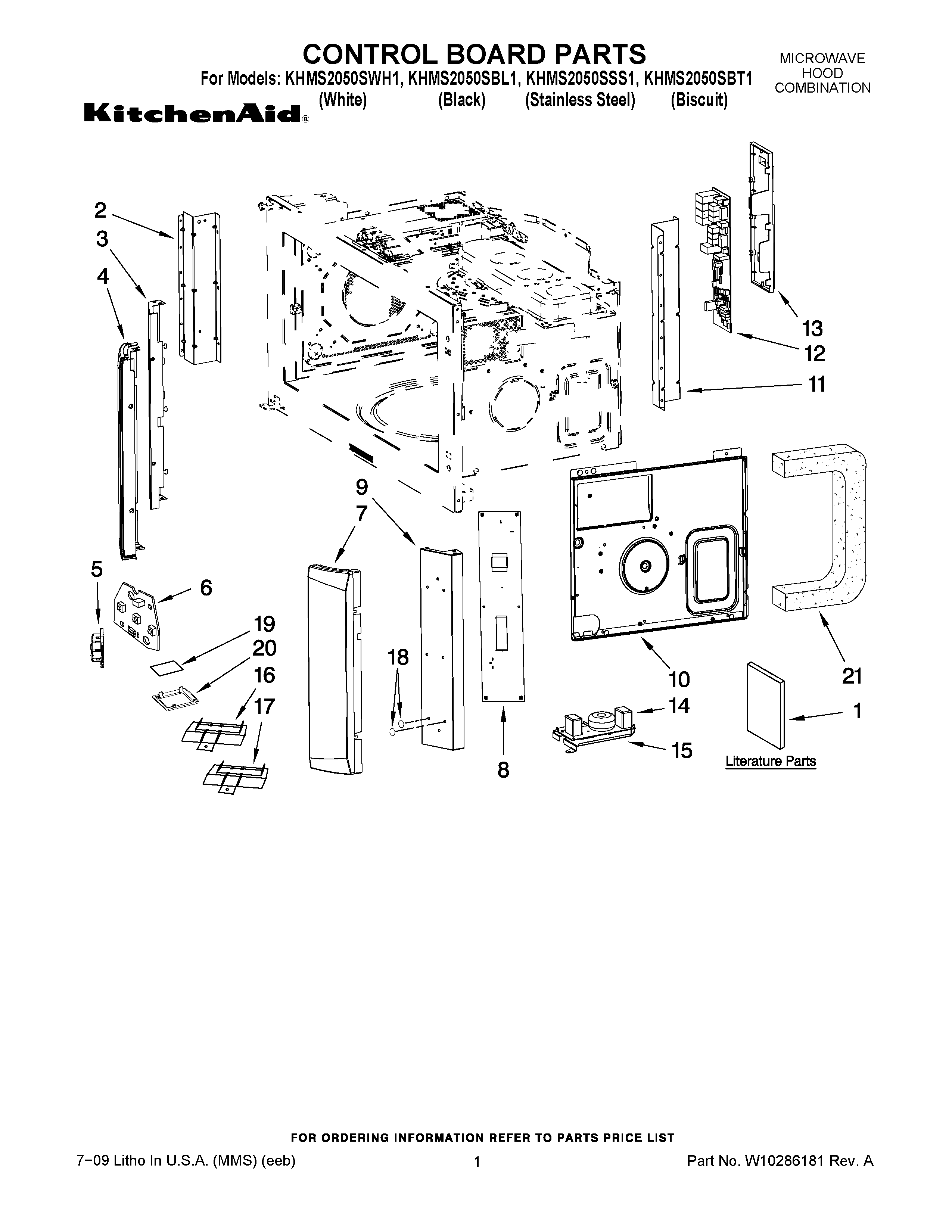

KHMS2050SBL1 01 – CONTROL BOARD PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET
1	QUICK REFERENCE
1	USE & CARE GUIDE
2	Support, Cavity (Left)
3	W10527358 Whirlpool Microwave Plate
4	Side Panel, Left (Black)
4	Side Panel, Left (Stainless Steel)
4	Side Panel, Left (White)
4	Side Panel, Left (Biscuit)
5	Button (Black)
5	Button (White)
5	Button (Stainless Steel)
5	Button (Biscuit)
6	WPW10403040-includeCORE Whirlpool WPW10403040 Microwave Control Board with Light Switch + Core
7	Side Panel, Right (Stainless Steel)
7	Side Panel, Right (White)
7	SIDE PANEL, RIGHT (BLACK)
7	SIDE PANEL, RIGHT (BISCUIT)
8	CONTROL BOARD, (RELAY)
9	Plate, Protection (Right)
10	Plate, Chassis
11	Support, Cavity (Right)
12	WP8206493 Whirlpool Microwave Electronic Control Board
13	SIDE PANEL, RIGHT (STAINLESS STEEL)
14	AC Line Filter
15	Holder, Filter
16	Resistor (50W)
17	W10113783 Whirlpool Microwave Resistor
18	Spacer (6)
19	Glass, Lamp
20	Frame, Glass
21	FOAM, SEAL
