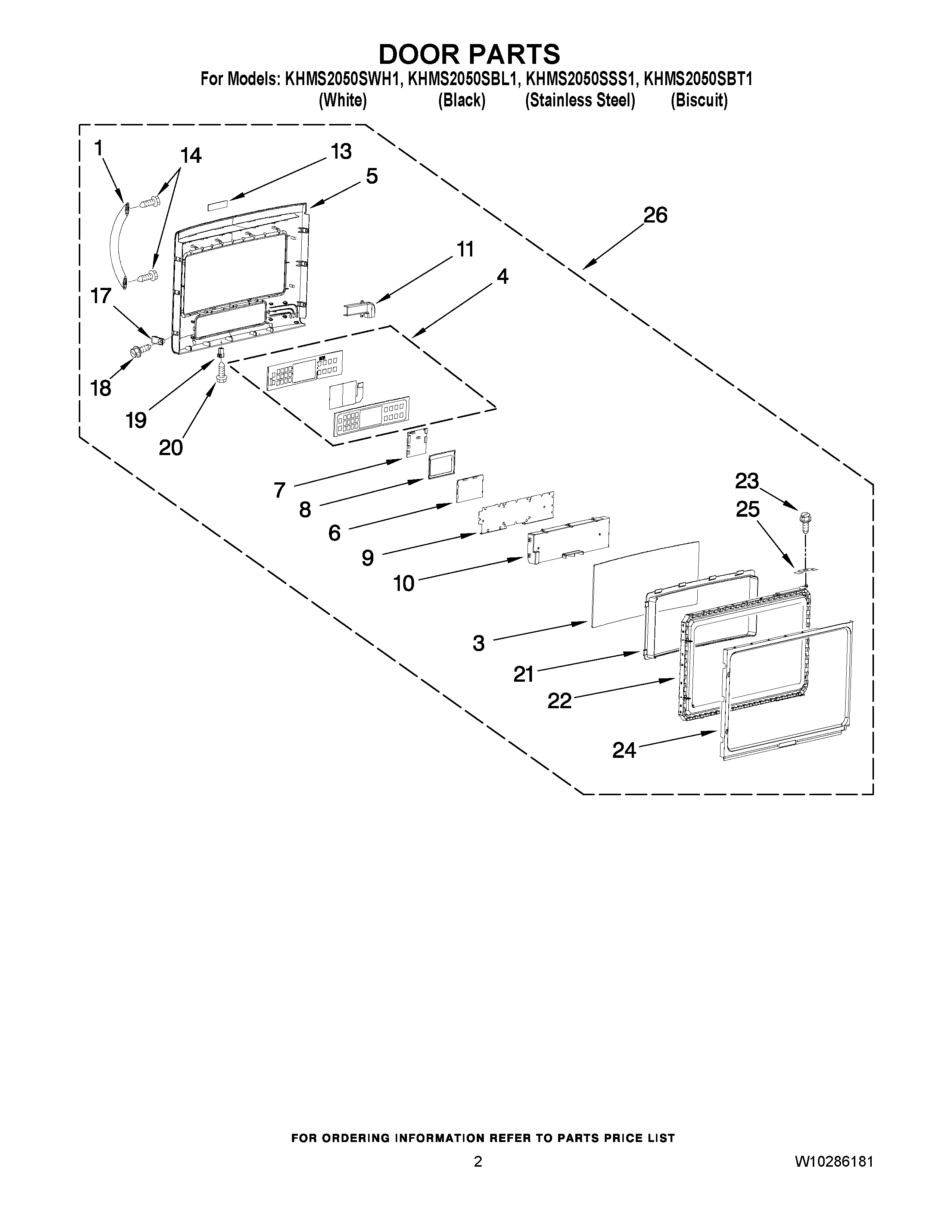

KHMS2050SSS1 02 – DOOR PARTSadmin2025-04-26T11:00:40+00:00KHMS2050SSS1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Handle (White) |
| 1 | Handle (Stainless Steel) |
| 1 | Handle (Biscuit) |
| 1 | W10110267 Whirlpool Microwave Door Handle |
| 3 | WP8206528 Whirlpool Microwave Door Glass |
| 4 | Control Panel |
| 5 | Outer Door Frame (White) |
| 5 | Outer Door Frame (Black) |
| 5 | Outer Door Frame (Stainless Steel) |
| 5 | Outer Door Frame (Biscuit) |
| 6 | LCD Frame |
| 7 | BOARD, USER (INTERFACE) |
| 8 | LCD Module |
| 9 | Cntrl Panel Plate |
| 10 | Cntrl Panel Cover |
| 11 | Cable Cover, Door |
| 13 | Logo (Stainless Steel) |
| 13 | Logo (Biscuit) |
| 13 | WPW10243393 Whirlpool Dishwasher Nameplate |
| 13 | WPW10243392 Whirlpool Dishwasher Nameplate |
| 14 | W10815455 Whirlpool Screw |
| 17 | Spacer, Side (6) (Black) |
| 17 | Spacer, Side (6) (Biscuit) |
| 17 | Spacer, Side (6) (White) |
| 17 | 8206525 Whirlpool Microwave Spacer |
| 19 | Spacer, Bottom (2) |
| 20 | 8206179 Whirlpool Microwave Screw |
| 21 | COVER, CHOKE |
| 22 | Door Plate Assy |
| 23 | W10565483 Whirlpool Microwave Screw |
| 24 | Dr Innr Frm Assy |
| 25 | CLIP,HINGE SCREW |
| 26 | DOOR, COMPLETE (WHITE) |
| 26 | DOOR, COMPLETE (BLACK) |
| 26 | DOOR, COMPLETE (STAINLESS) |
| 26 | DOOR, COMPLETE (BISCUIT) |
