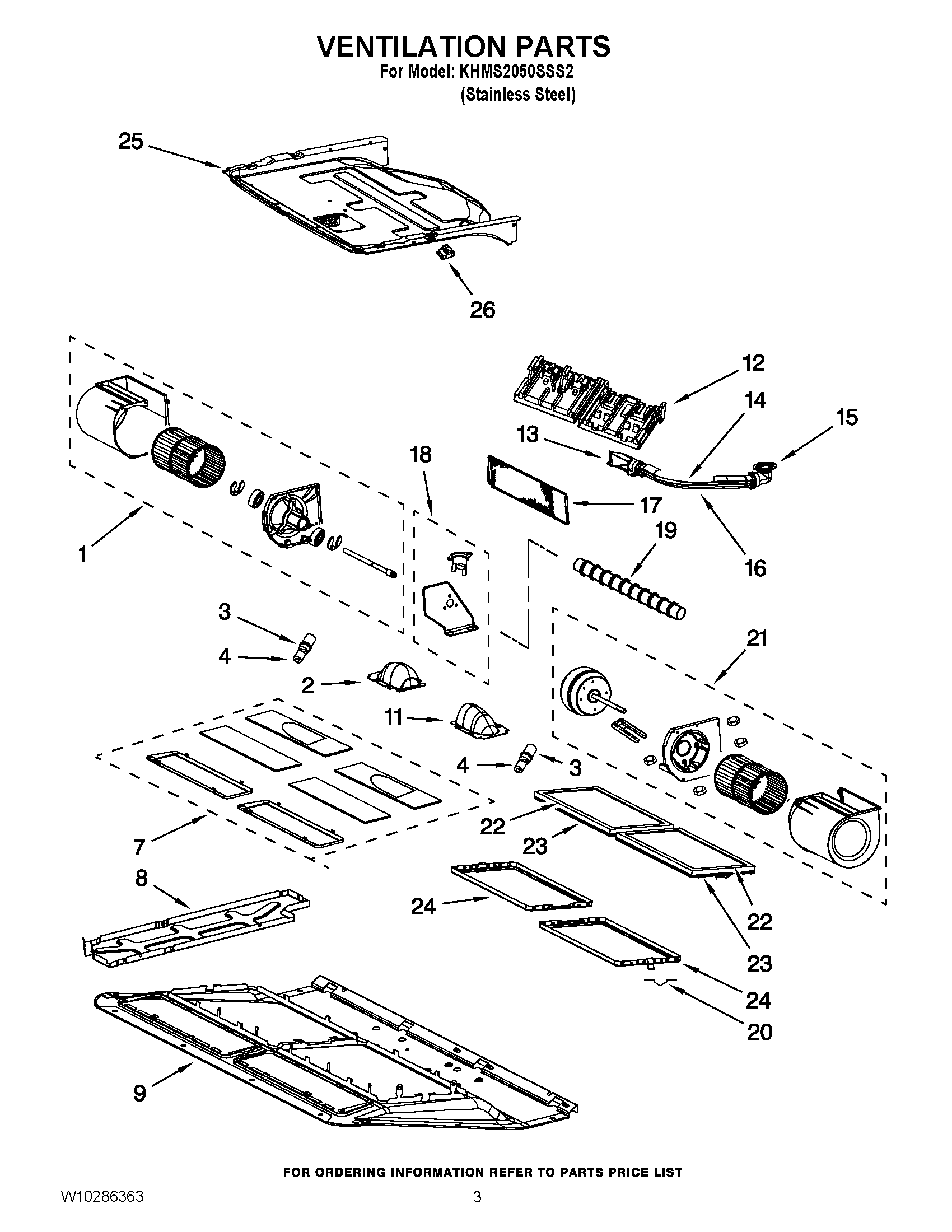

KHMS2050SSS2 03 – VENTILATION PARTSadmin2025-04-26T10:59:24+00:00KHMS2050SSS2 03 – VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | Housing, Blower (Left) |
| 2 | Reflector, Lamp |
| 3 | 8204670 Whirlpool Microwave Halogen Lamp 10W 12V |
| 4 | W10143958 Whirlpool Microwave Light Socket Housing |
| 7 | Frame, Glass (Left) |
| 7 | Frame, Glass (Right) |
| 8 | Plate, Separator (Left) |
| 9 | Plate, Bottom |
| 11 | Reflector, Lamp |
| 12 | Cover, Terminal |
| 13 | Diffuser |
| 14 | Cover, Duct |
| 15 | Connector, Duct |
| 16 | Holder, Duct |
| 17 | SHIELD |
| 18 | Support & Base Thermostat Assy |
| 19 | Connector Shaft |
| 20 | SPRING |
| 21 | Housing, Blower (Right) |
| 22 | W10120840A Whirlpool Oven Range Vent Hood Charcoal Filter |
| 23 | W10120839A Whirlpool Oven Microwave Range Vent Hood Grease Filter |
| 24 | Spring, Hook |
| 25 | Air Guide, Center Hood |
| 26 | W10596040 Whirlpool Microwave Nut |
