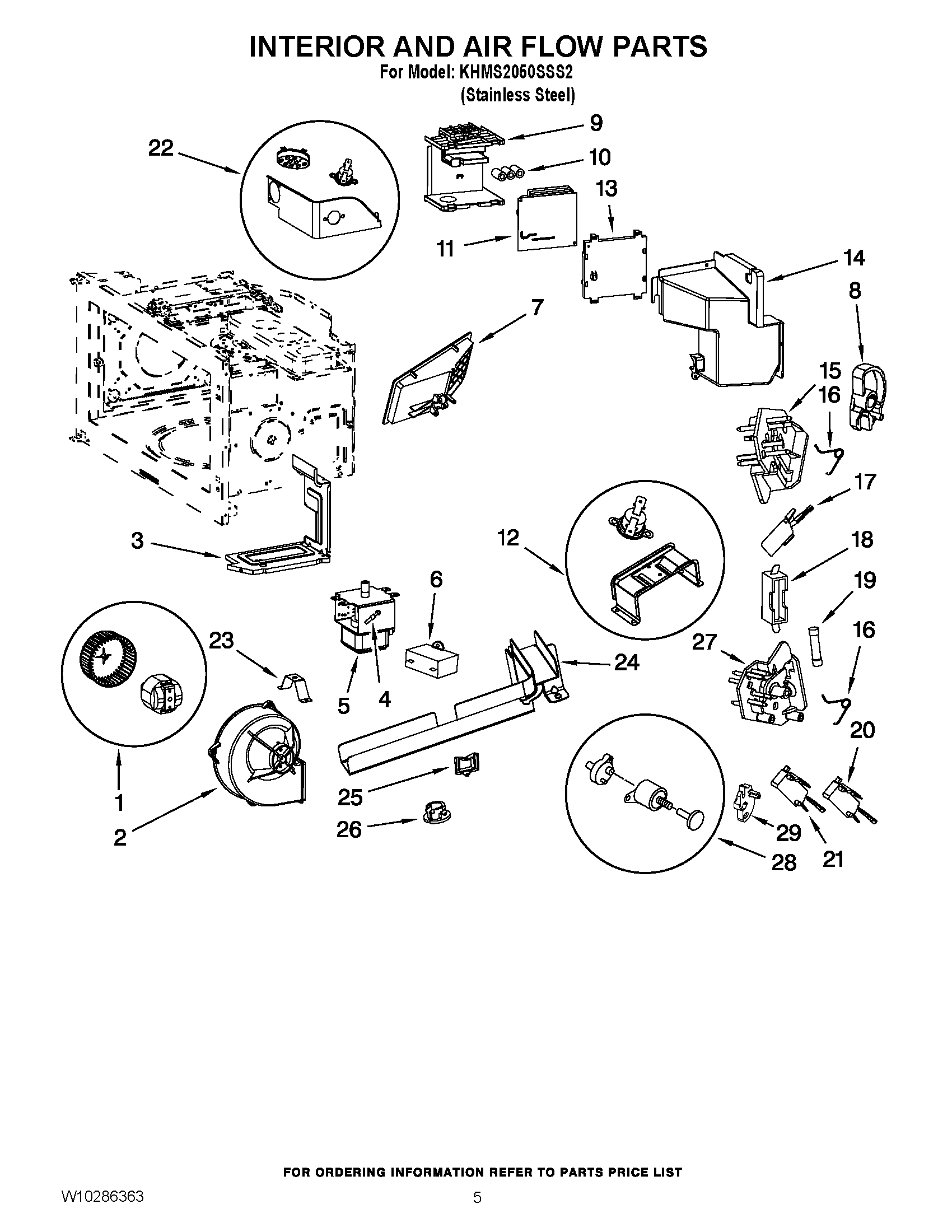

KHMS2050SSS2 04 – INTERIOR AND AIR FLOW PARTS

Products

Position	Product
1	8206075 Whirlpool Microwave Fan Motor
2	Housing, Fan
3	Plate, Divider
4	W10115577 Whirlpool Microwave Sensor
5	8206079 Whirlpool Microwave Magnetron
6	Motor, Capacitor
7	Housing, Valve
8	CAM PLATE, UPPER
9	COVER, INVERTER
10	FERRITE RING
11	W10217711 Whirlpool Microwave Inverter
12	8206035 Whirlpool Microwave Thermostat
13	HOLDER, INVERTER
14	Air Guide, Magnetron
15	W10143956 Whirlpool Microwave Interlock
16	Spring, Interlock
17	W10211972 Whirlpool Microwave Switch
18	HOLDER, FUSE
19	FUSE-THRML
20	W10269458 Whirlpool Microwave Door Switch
21	W10211974 Whirlpool Microwave Door Interlock Micro Switch
22	Humidity Sensor & Thermostat Assy
23	Support, Air Guide
24	Protector, Wire
25	Clip, Saddle
26	8206038 Whirlpool Clip Assembly
27	8206209 Whirlpool Microwave Interlock Switch
28	Piston Assembly
29	CAM PLATE, LOWER
