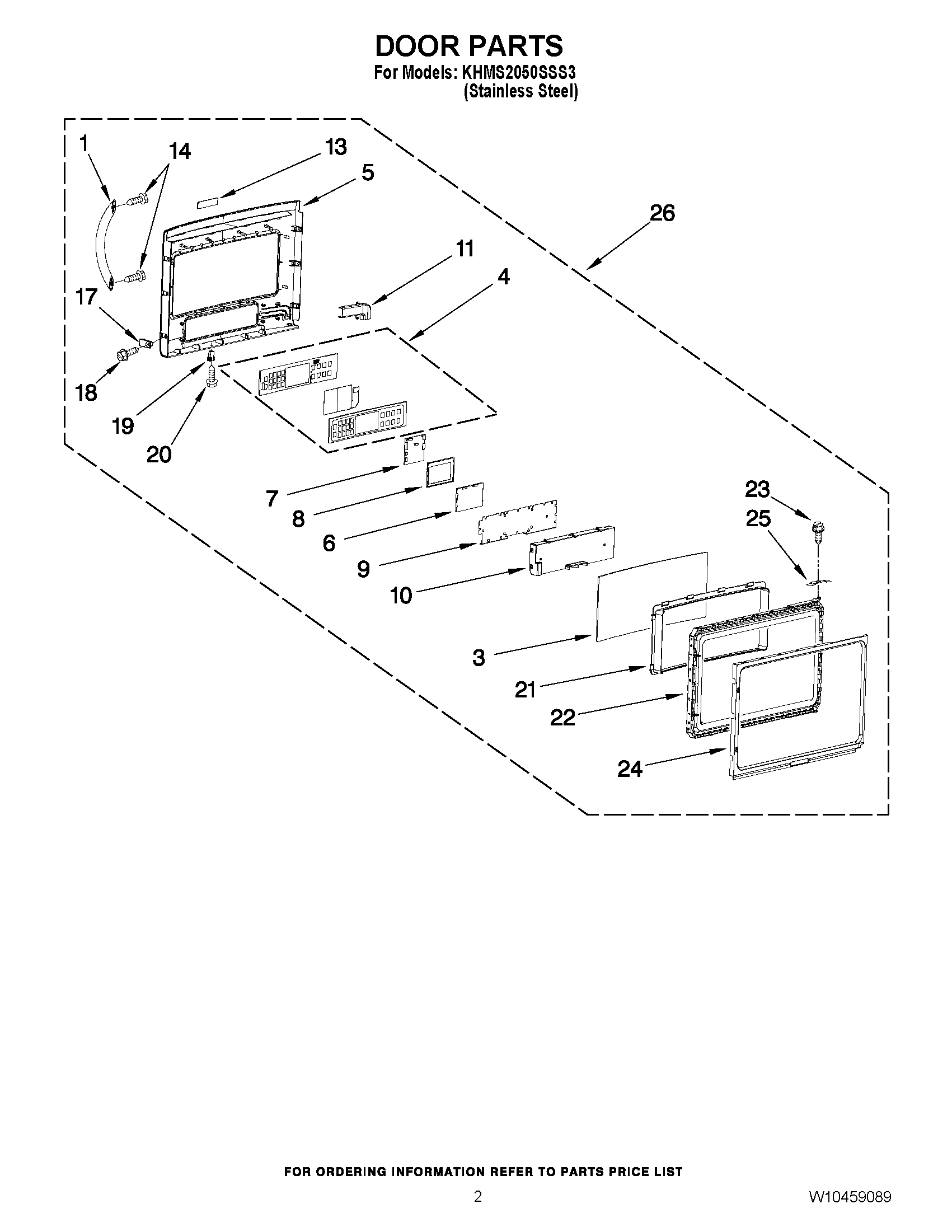

KHMS2050SSS3 02 – DOOR PARTS

Products

Position	Product
1	Handle (Stainless Steel)
3	WP8206528 Whirlpool Microwave Door Glass
4	Control Panel
5	OUTER DOOR FRAME (STAINLESS)
6	LCD Frame
7	BOARD, USER (INTERFACE)
8	LCD Module
9	Cntrl Panel Plate
10	Cntrl Panel Cover
11	Cable Cover, Door
13	Logo (Stainless Steel)
14	W10815455 Whirlpool Screw
17	8206525 Whirlpool Microwave Spacer
19	Spacer, Bottom (2)
20	8206179 Whirlpool Microwave Screw
21	COVER, CHOKE
22	Door Plate Assy
23	W10565483 Whirlpool Microwave Screw
24	Dr Innr Frm Assy
25	CLIP,HINGE SCREW
26	DOOR, COMPLETE (STAINLESS)
