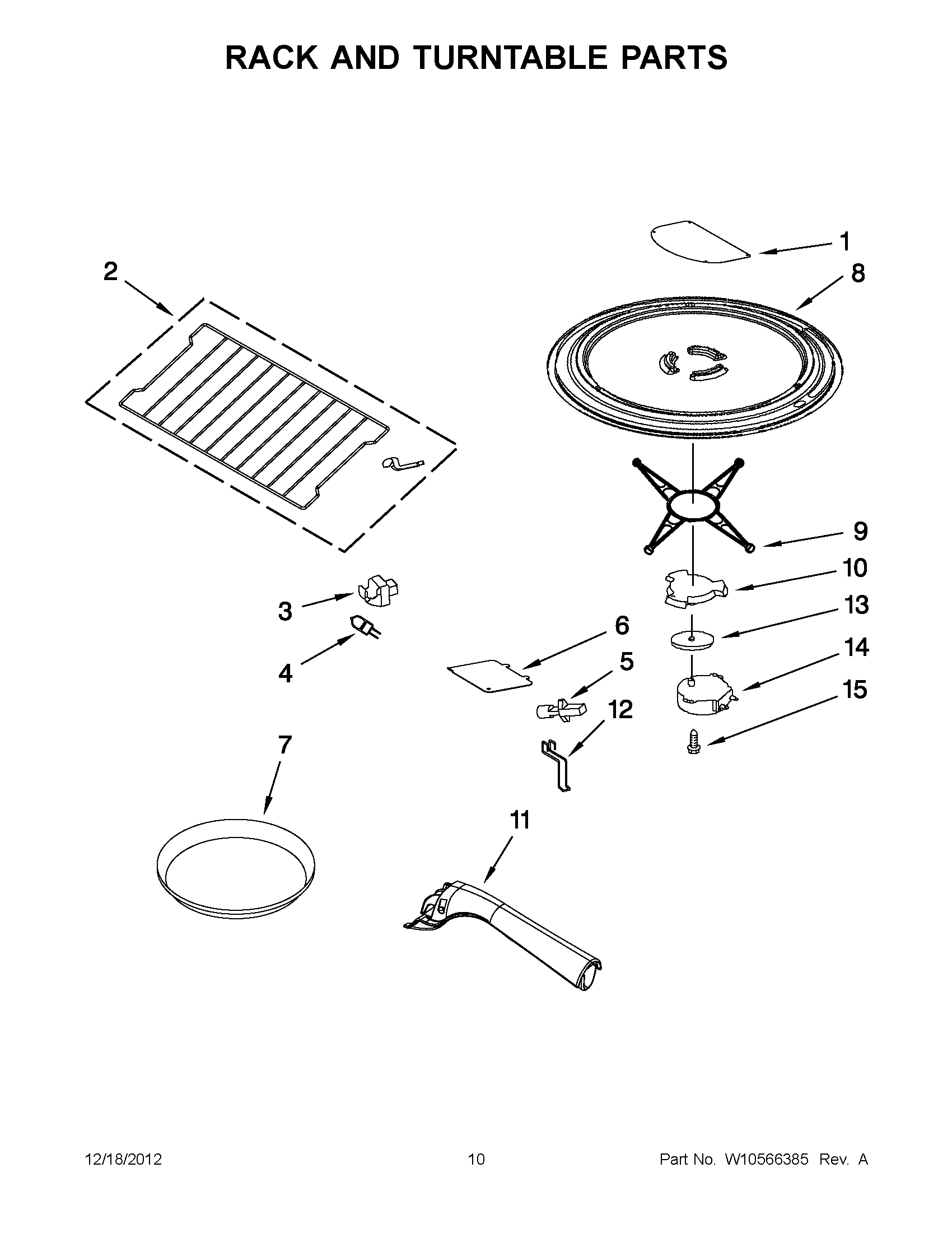

KHMS2050SSS4 05 – RACK AND TURNTABLE PARTS

KHMS2050SSS4 05 – RACK AND TURNTABLE PARTS

Written by

in

KHMS2050SSS4 05 – RACK AND TURNTABLE PARTS

Products

PositionProduct
1COVER, INLET
2Rack
3W10315274 Whirlpool Microwave Meal Rack
48204670 Whirlpool Microwave Halogen Lamp 10W 12V
5Holder, Lamp
6Lid, Lamp
7W10748097 Whirlpool Microwave Crisp Pan
88205992 Whirlpool Microwave Cook Tray
9Ring, Turntable
108205994 Whirlpool Microwave Support
11W10851464 Whirlpool Microwave Handle Panel
12Clip, Cavity Lamp
138184109 Whirlpool Microwave Spacer
14W11661547 Whirlpool Turntable Motor
154393832 Whirlpool Microwave Screw
