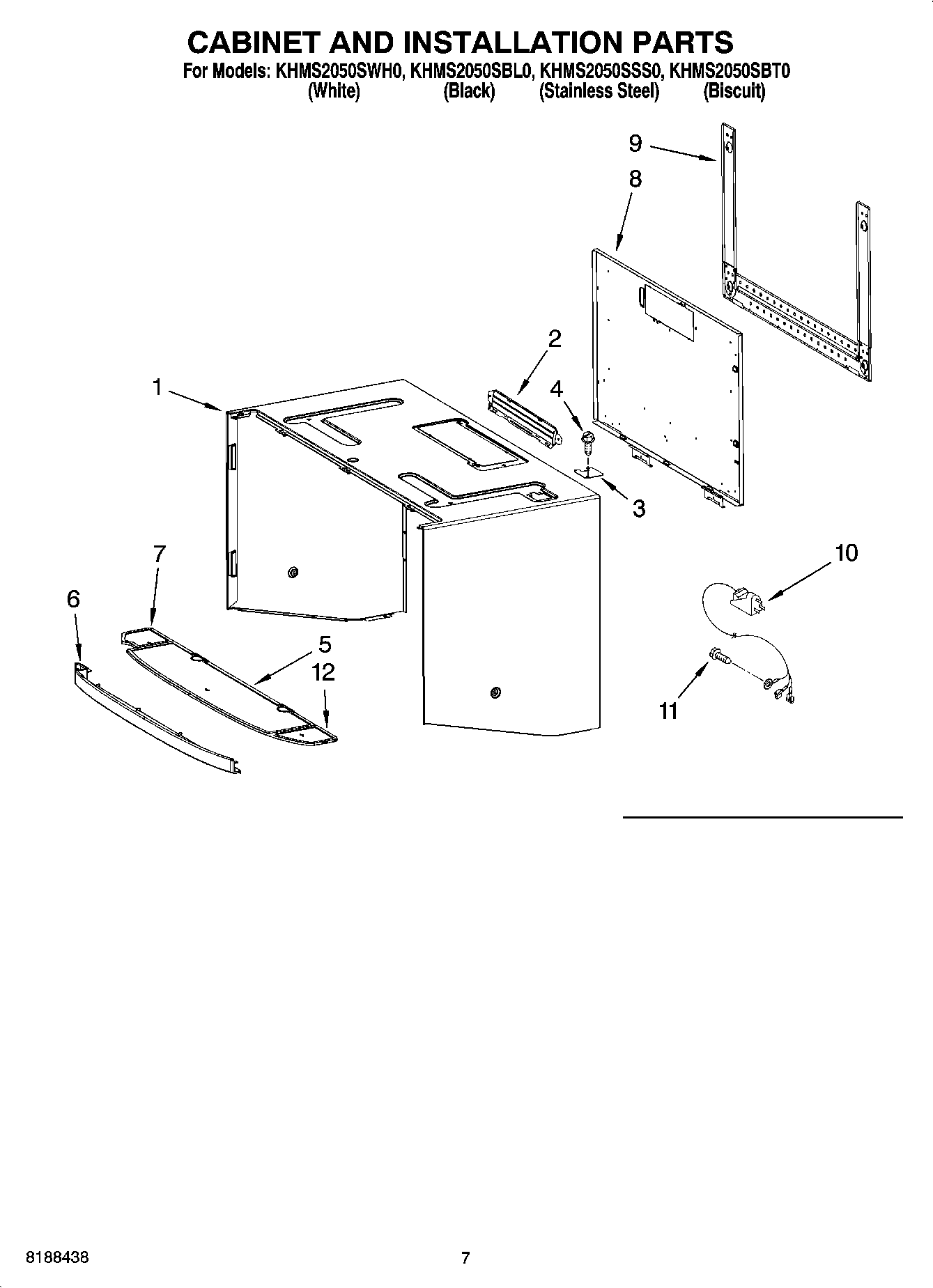

KHMS2050SWH0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	Case, Outer (Black)
1	Case, Outer (White)
1	Case, Outer (Biscuit)
1	Case, Outer (Apollo Grey)
2	W10843943 Whirlpool Microwave Vent Damper
3	Lid, Power Cord
4	W11380570 Whirlpool Microwave Screw
5	Vent Screen (Middle)
6	Support, Vent Screen (Biscuit)
6	Support, Vent Screen (White)
6	Support, Vent Screen (Universal Silver)
6	Support, Vent Screen (Black)
7	Vent Screen (Left)
8	Plate, Back
9	Plate, Mounting
10	Cord, Power
11	4393836 Whirlpool Microwave Screw
12	HARNS-WIRE No.76 P2 RCB
12	HARNS-WIRE No.75 P64 RCB
12	Main Harness
12	Harns-Wire, RCB – Inverter
12	HARNS-WIRE, P56-P66
12	8206185 Whirlpool Microwave Wire Harness
12	Vent Screen (Right)
12	W10470173 Whirlpool Microwave Wire Harness
12	W10470175 Whirlpool Microwave Wire Harness
12	W10470176 Whirlpool Microwave Wire Harness
12	W10470191 Whirlpool Microwave Wire Harness Assembly
12	W10553076 Whirlpool Microwave Wire Harness
12	Template, Upper
12	Installation, Magnetron Hardware
12	Miscellaneous
