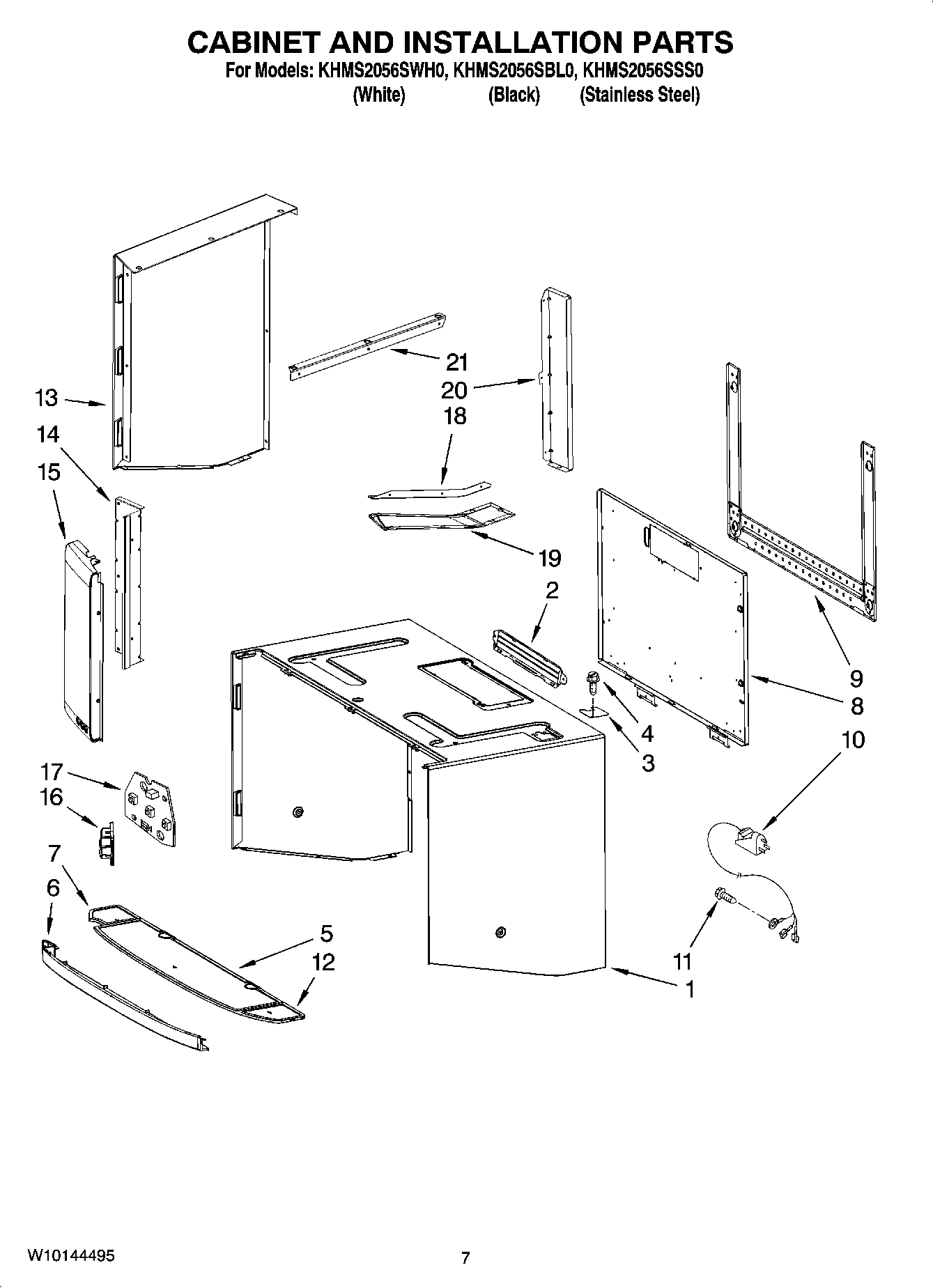

KHMS2056SBL0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	W10470175 Whirlpool Microwave Wire Harness
	W10470191 Whirlpool Microwave Wire Harness Assembly
	Template, Upper
	HARNS-WIRE, P56-P66
	Harns-Wire, RCB – Inverter
	HARNS-WIRE No.75 P64 RCB
	HARNS-WIRE No.76 P2 RCB
	Harns-Wire, HV
	Main Harness
	Miscellaneous
	MISCELLANEOUS, INSTALLATION, HARDWARE
	W10570206 Whirlpool Microwave Wire Harness
	W10470176 Whirlpool Microwave Wire Harness
	W10470173 Whirlpool Microwave Wire Harness
	8206185 Whirlpool Microwave Wire Harness
1	Case, Outer (White)
1	Case, Outer (Black)
1	Case, Outer (Apollo Grey)
2	W10843943 Whirlpool Microwave Vent Damper
3	Lid, Power Cord
4	W11380570 Whirlpool Microwave Screw
5	Vent Screen (Middle)
6	Support, Vent Screen (Stainless Steel)
6	Support, Vent Screen (White)
6	Support, Vent Screen (Black)
7	Vent Screen (Left)
8	Plate, Back
9	Plate, Mounting
10	Cord, Power
11	4393836 Whirlpool Microwave Screw
12	Vent Screen (Right)
13	Panel, Side (White, Right)
13	Panel, Side (Black, Right)
13	Panel, Side (Stainless, Right)
13	Panel, Side (Stainless, Left)
13	Panel, Side (White, Left)
13	Panel, Side (Black, Left)
14	Side Panel Sup.(2)
15	Panel, Front (White, Right)
15	Panel, Front (Stnls. Left)
15	Panel, Front (Black, Left)
15	Panel, Front (White, Left)
15	Panel, Front (Stnls. Right)
15	Panel, Front (Black, Right)
16	Button (Black)
16	Button (Stainless)
16	Button (White)
17	Hood/Light Switch Board
18	Bracket (Lower Right)
18	Bracket (Lower Left)
19	Plate (Co.) (Bottom, Left)
19	Plate (Co.) (Bottom, Right)
20	Plate, Back (Left)
20	Plate, Back (Right)
21	Bracket, Upper (Right)
21	Bracket, Upper (Left)
