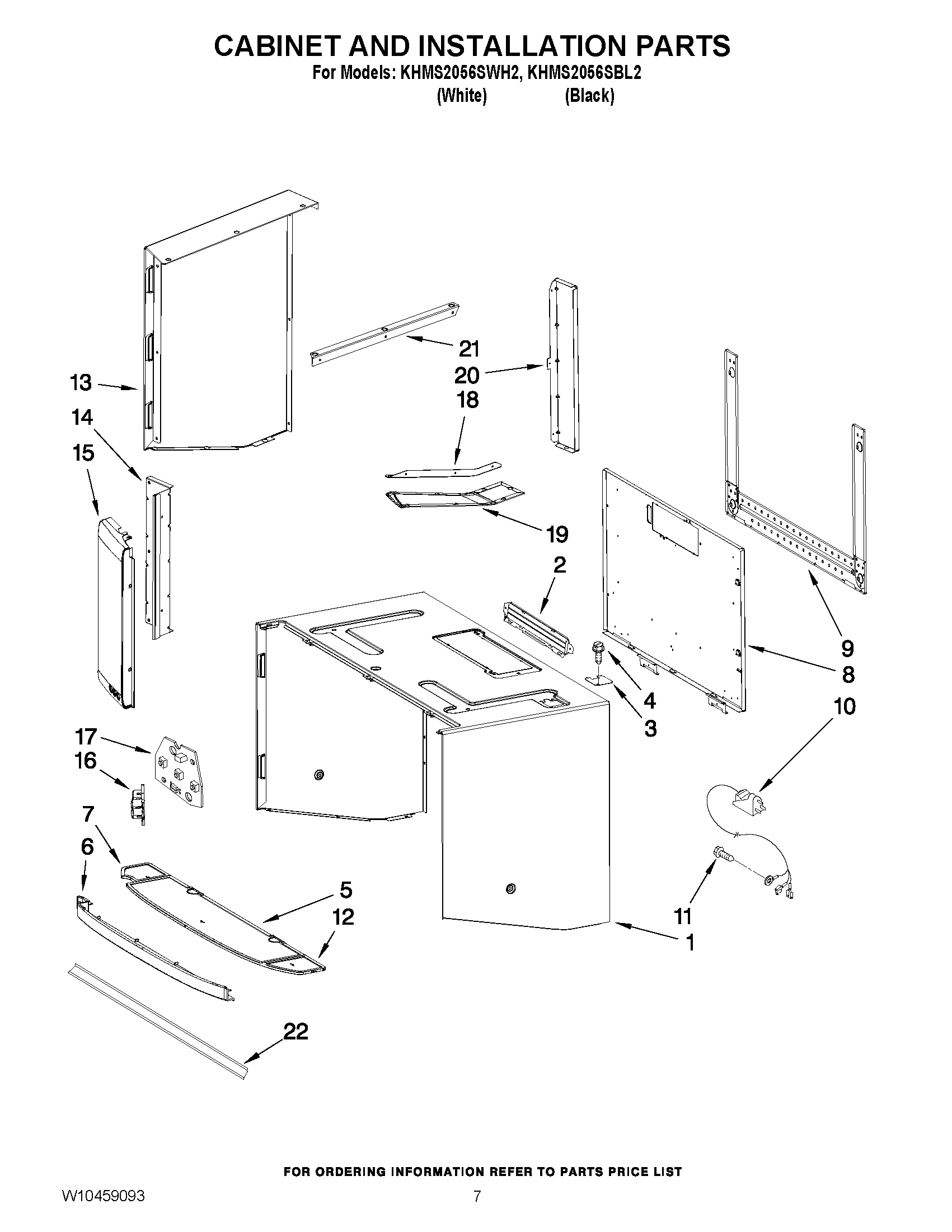

KHMS2056SBL2 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	Harns-Wire, RCB – Inverter
NI	W10470176 Whirlpool Microwave Wire Harness
NI	W10470175 Whirlpool Microwave Wire Harness
NI	W10470173 Whirlpool Microwave Wire Harness
NI	HARNS-WIRE No.75 P64 RCB
NI	HARNS-WIRE No.76 P2 RCB
NI	HARNS-WIRE, HV
NI	Template, Upper
NI	W10470191 Whirlpool Microwave Wire Harness Assembly
NI	W10570206 Whirlpool Microwave Wire Harness
NI	MAIN HARNESS
NI	HARNS-WIRE, P56-P66
NI	8206185 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS, INSTALLATION, HARDWARE
1	CASE, OUTER (BLACK)
1	CASE, OUTER (WHITE)
2	W10843943 Whirlpool Microwave Vent Damper
3	Lid, Power Cord
4	W11380570 Whirlpool Microwave Screw
5	Vent Screen (Middle)
6	Support, Vent Screen (White)
6	Support, Vent Screen (Stainless Steel)
6	Support, Vent Screen (Black)
7	Vent Screen (Left)
8	Plate, Back
9	Plate, Mounting
10	CORD, POWER
11	4393836 Whirlpool Microwave Screw
12	Vent Screen (Right)
13	Panel, Side (Black, Left)
13	Panel, Side (White, Right)
13	Panel, Side (Black, Right)
13	Panel, Side (White, Left)
14	Side Panel Sup.(2)
15	Panel, Front (White, Left)
15	Panel, Front (Black, Left)
15	Panel, Front (White, Right)
15	Panel, Front (Black, Right)
16	Button (White)
16	Button (Black)
17	Hood/Light Switch Board
18	Bracket (Lower Right)
18	Bracket (Lower Left)
19	Plate (Co.) (Bottom, Right)
19	Plate (Co.) (Bottom, Left)
20	Plate, Back (Left)
20	Plate, Back (Right)
21	Bracket, Upper (Left)
21	Bracket, Upper (Right)
22	8205980 Whirlpool Microwave Air Deflector
