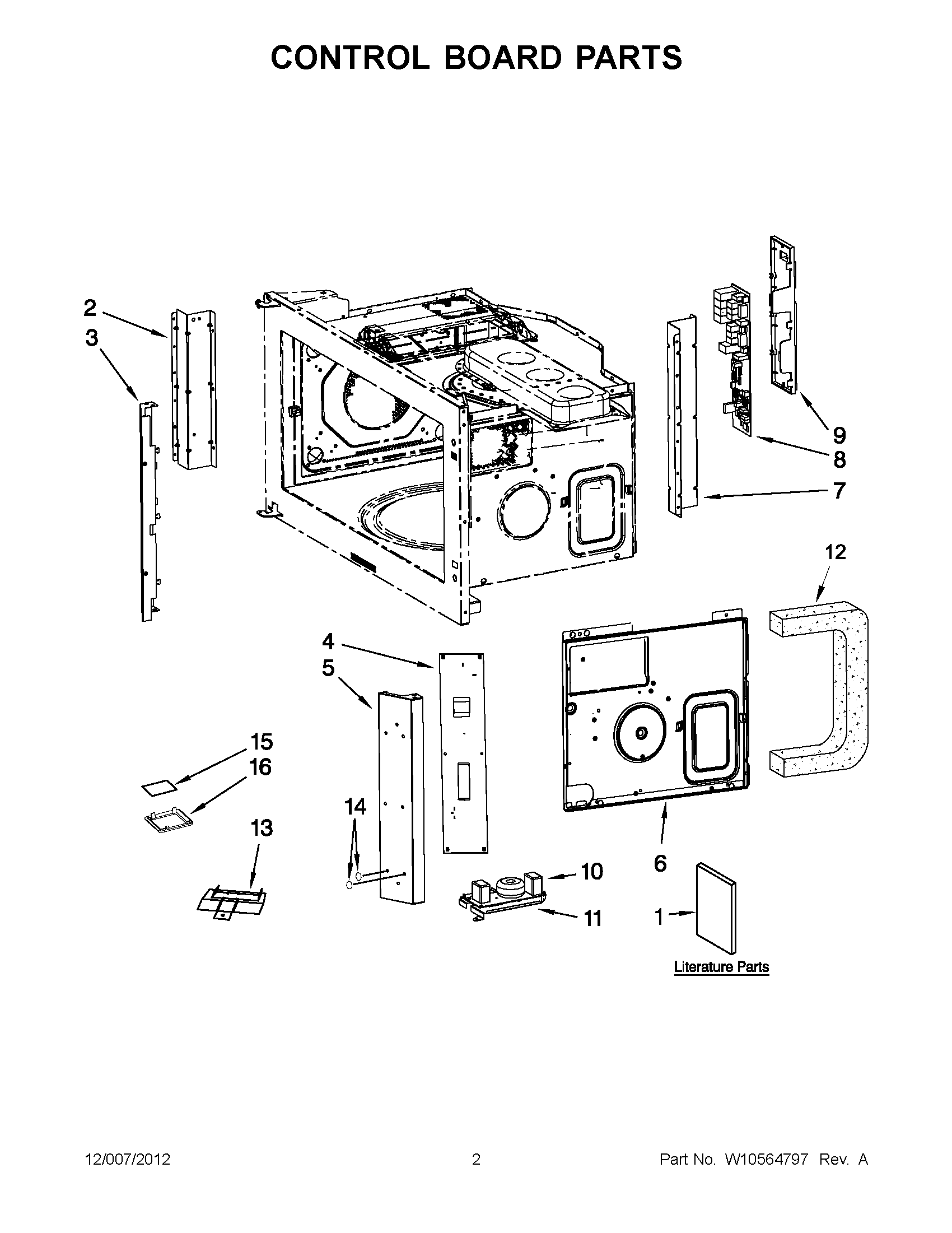

KHMS2056SBL3 01 – CONTROL BOARD PARTSadmin2025-04-26T11:03:17+00:00KHMS2056SBL3 01 – CONTROL BOARD PARTS
Products
| Position | Product |
|---|
| 1 | INSTALLATION INSTRUCTIONS |
| 1 | TECH SHEET |
| 1 | QUICK REFERENCE |
| 1 | USE & CARE GUIDE |
| 2 | Support, Cavity (Left) |
| 3 | W10527358 Whirlpool Microwave Plate |
| 4 | CONTROL BOARD, (RELAY) |
| 5 | Plate, Protection (Right) |
| 6 | Plate, Chassis |
| 7 | Support, Cavity (Right) |
| 8 | WP8206493 Whirlpool Microwave Electronic Control Board |
| 9 | HOLDER, MICROCOMPUTER |
| 10 | AC Line Filter |
| 11 | Holder, Filter |
| 12 | FOAM, SEAL |
| 13 | W10113783 Whirlpool Microwave Resistor |
| 14 | Spacer (6) |
| 15 | Glass, Lamp |
| 16 | Frame, Glass |
