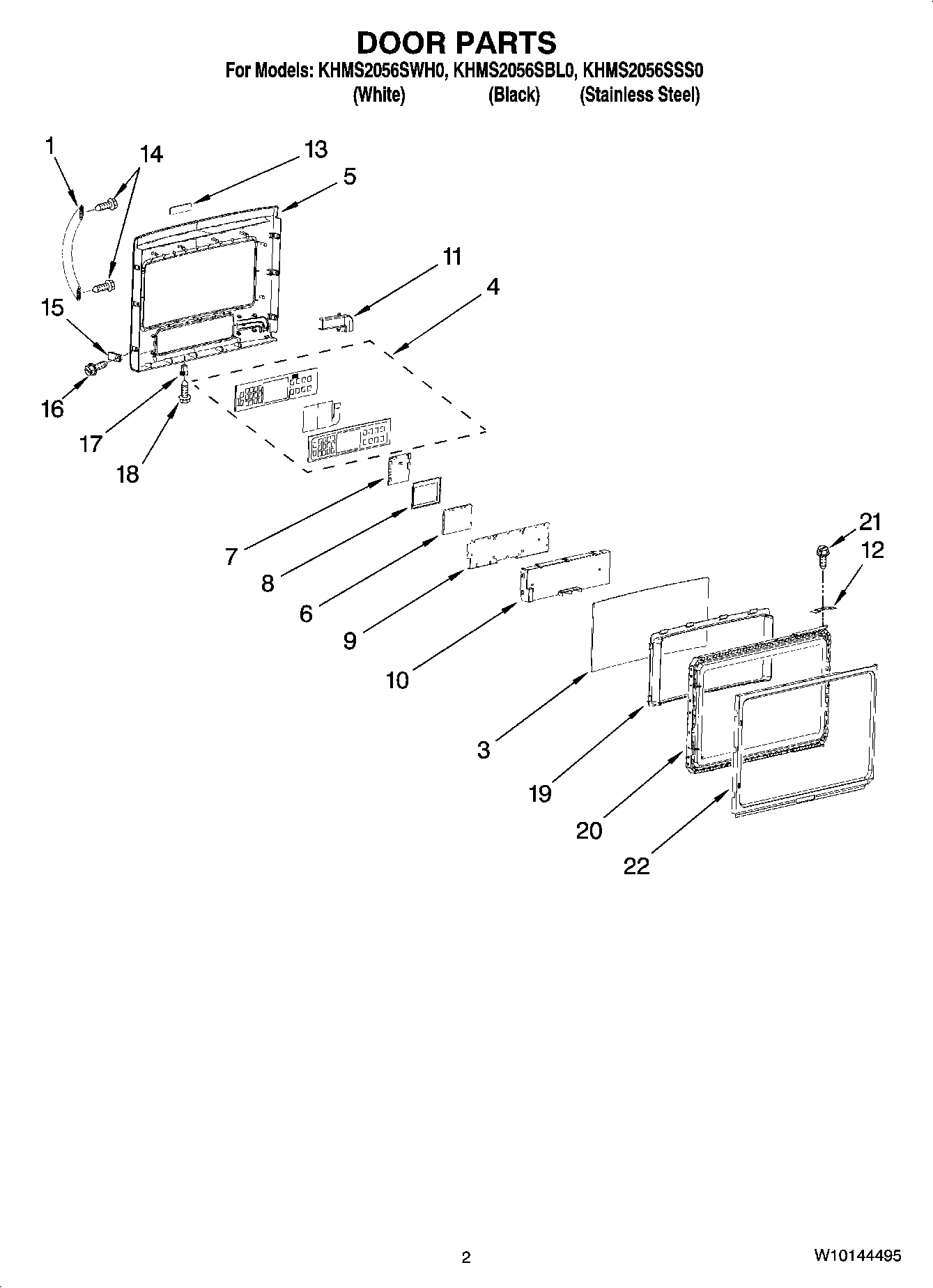

KHMS2056SSS0 02 – DOOR PARTS

Products

Position	Product
1	W10110267 Whirlpool Microwave Door Handle
1	Handle (White)
1	W10239614 Whirlpool Microwave Door Handle
3	WP8206528 Whirlpool Microwave Door Glass
4	Control Panel
5	Outer Door Frame (White)
5	Outer Door Frame (Black)
5	Outer Door Frame (Stainless Steel)
6	LCD Frame
7	Board, User (Interface)
8	LCD Module
9	Cntrl Panel Plate
10	Cntrl Panel Cover
11	Cable Cover, Door
12	CLIP,HINGE SCREW
13	WPW10243393 Whirlpool Dishwasher Nameplate
13	Logo (Stainless Steel)
13	WPW10243392 Whirlpool Dishwasher Nameplate
14	W10815455 Whirlpool Screw
15	Spacer, Side (6) (Black)
15	8206525 Whirlpool Microwave Spacer
15	Spacer, Side (6) (White)
17	Spacer, Bottom (2)
18	8206179 Whirlpool Microwave Screw
19	Cover, Choke
20	Door Plate Assy
21	W10565483 Whirlpool Microwave Screw
22	Dr Innr Frm Assy
