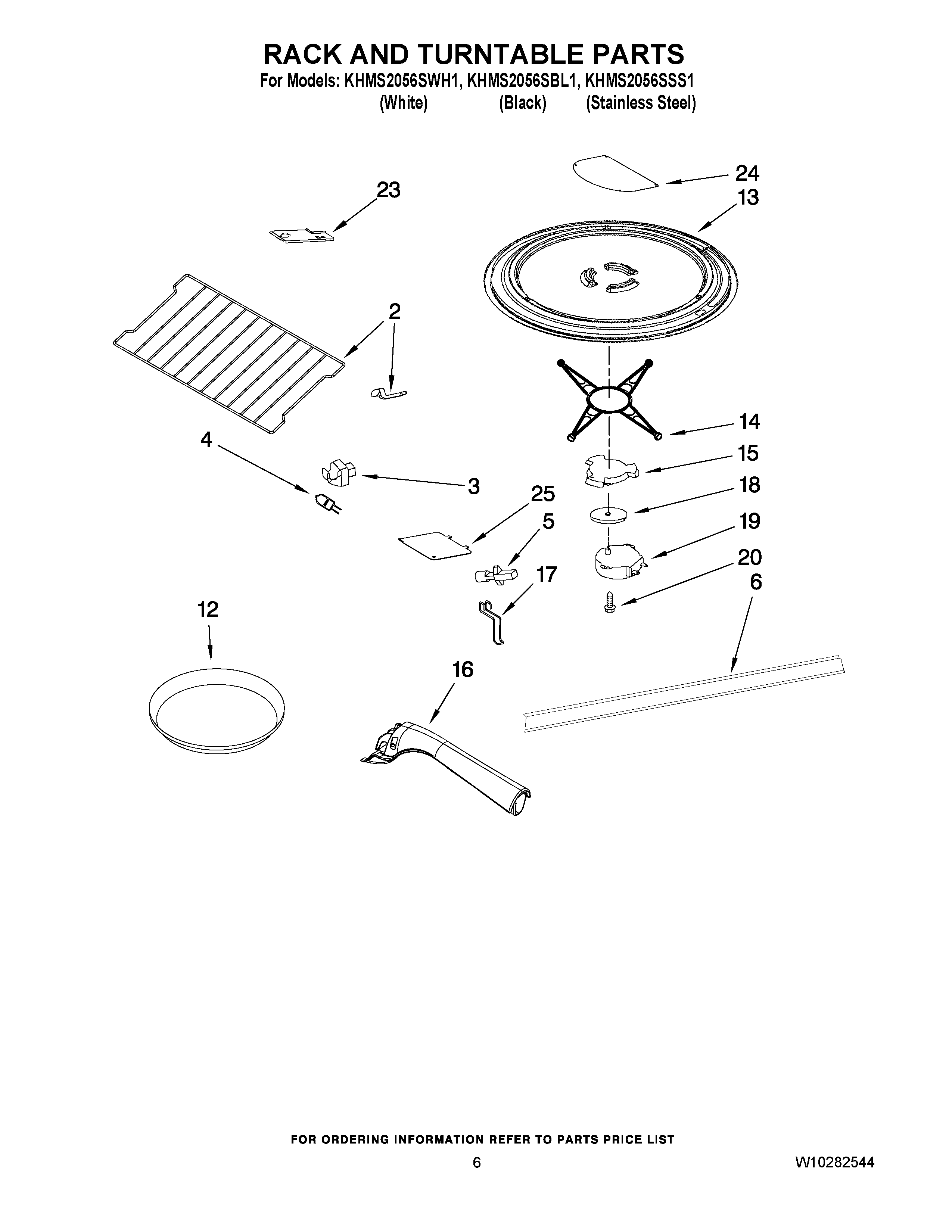

KHMS2056SSS1 05 – RACK AND TURNTABLE PARTS

Products

Position	Product
2	RACK, GRILL
3	W10315274 Whirlpool Microwave Meal Rack
4	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
5	Holder, Lamp
6	8205980 Whirlpool Microwave Air Deflector
12	W10748097 Whirlpool Microwave Crisp Pan
13	8205992 Whirlpool Microwave Cook Tray
14	Ring, Turntable
15	8205994 Whirlpool Microwave Support
16	W10851464 Whirlpool Microwave Handle Panel
17	Clip, Cavity Lamp
18	8184109 Whirlpool Microwave Spacer
19	W11661547 Whirlpool Turntable Motor
20	4393832 Whirlpool Microwave Screw
23	HATCH, SERVICE
24	COVER, INLET
25	Lid, Lamp
