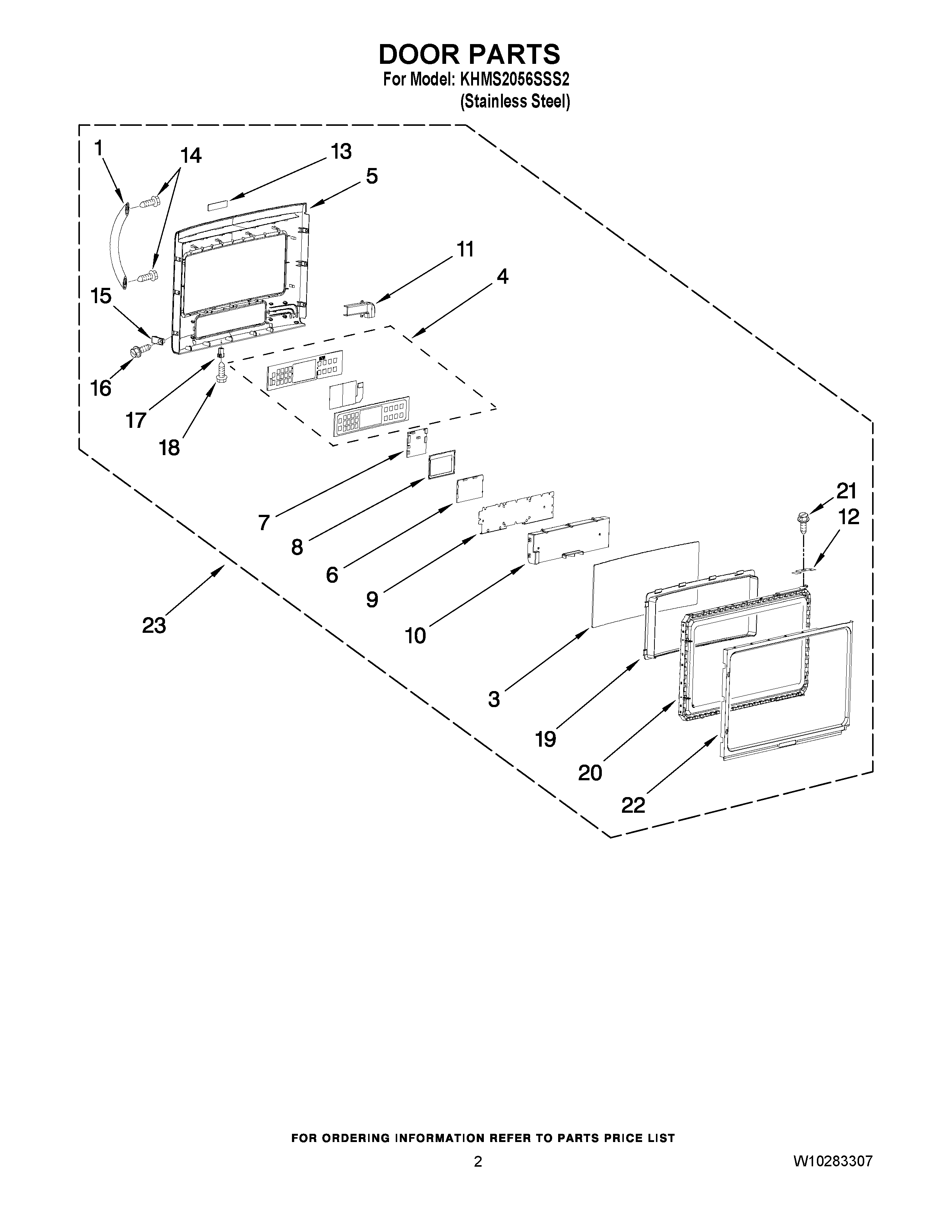

KHMS2056SSS2 02 – DOOR PARTS

Products

PositionProduct
1Handle (Stainless Steel)
3WP8206528 Whirlpool Microwave Door Glass
4Control Panel
5OUTER DOOR FRAME (STAINLESS)
6LCD Frame
7BOARD, USER (INTERFACE)
8LCD Module
9Cntrl Panel Plate
10Cntrl Panel Cover
11Cable Cover, Door
12CLIP,HINGE SCREW
13Logo (Stainless Steel)
14W10815455 Whirlpool Screw
158206525 Whirlpool Microwave Spacer
17Spacer, Bottom (2)
188206179 Whirlpool Microwave Screw
19COVER, CHOKE
20Door Plate Assy
21W10565483 Whirlpool Microwave Screw
22Dr Innr Frm Assy
23DOOR, COMPLETE (STAINLESS)
