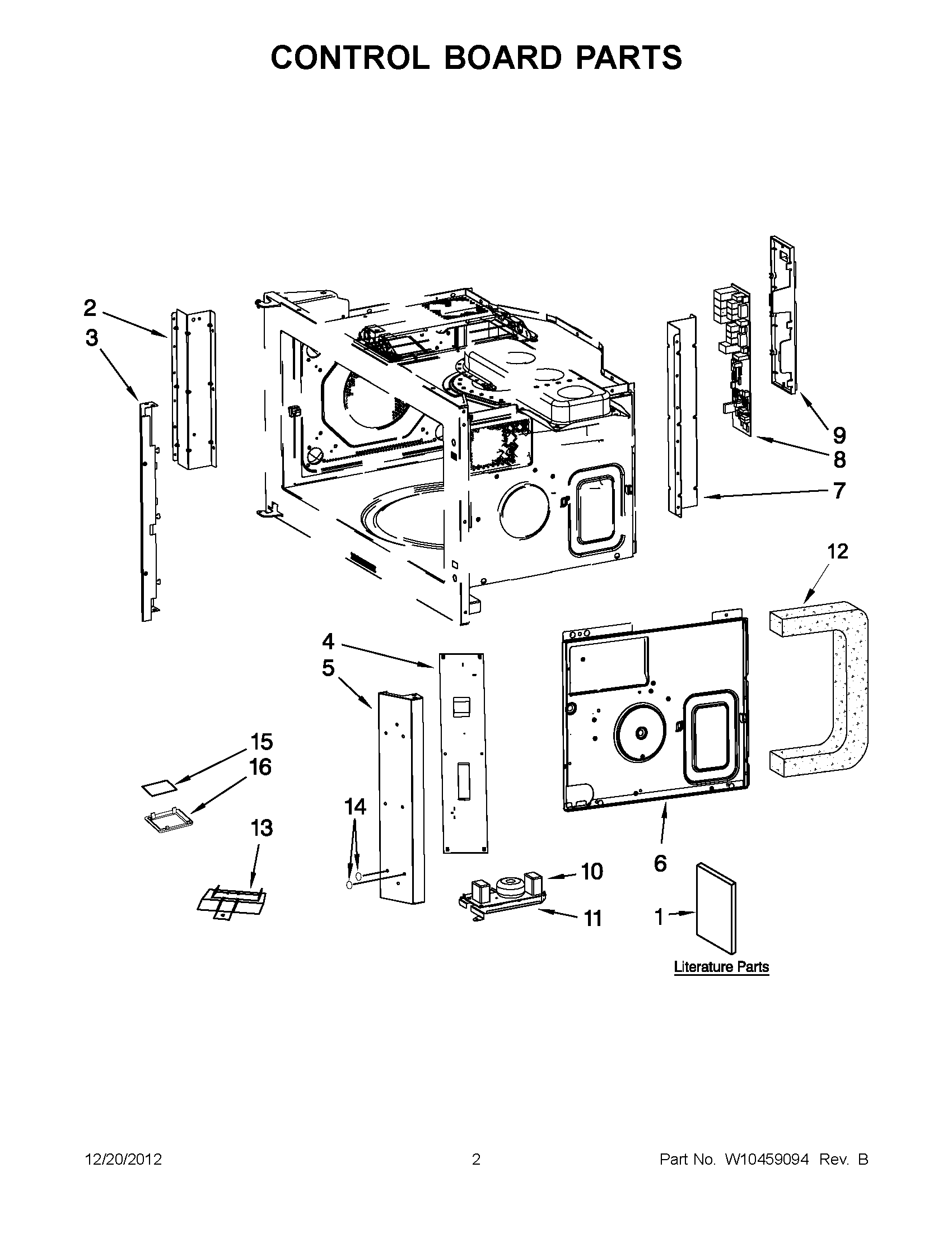

KHMS2056SSS3 01 – CONTROL BOARD PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	QUICK REFERENCE
1	TECH SHEET
2	Support, Cavity (Left)
3	W10527358 Whirlpool Microwave Plate
4	CONTROL BOARD, (RELAY)
5	Plate, Protection (Right)
6	Plate, Chassis
7	Support, Cavity (Right)
8	WP8206493 Whirlpool Microwave Electronic Control Board
9	HOLDER, MICROCOMPUTER
10	AC Line Filter
11	Holder, Filter
12	FOAM, SEAL
13	W10113783 Whirlpool Microwave Resistor
14	Spacer (6)
15	Glass, Lamp
16	Frame, Glass
