KHMS2056SWH0 02 – DOOR PARTS

KHMS2056SWH0 02 – DOOR PARTS

Written by

in

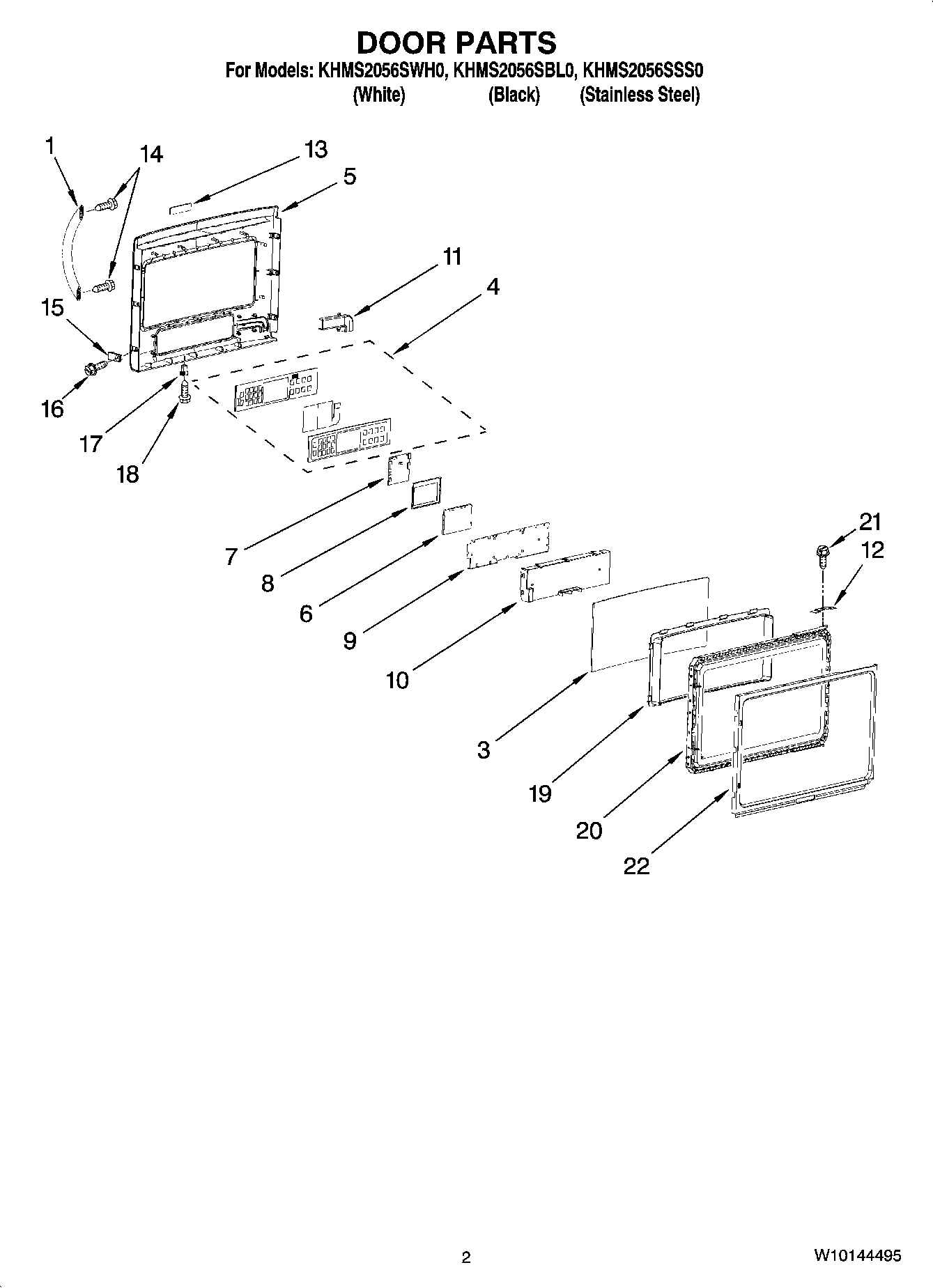

KHMS2056SWH0 02 – DOOR PARTS

Products

PositionProduct
1W10110267 Whirlpool Microwave Door Handle
1Handle (White)
1W10239614 Whirlpool Microwave Door Handle
3WP8206528 Whirlpool Microwave Door Glass
4Control Panel
5Outer Door Frame (White)
5Outer Door Frame (Black)
5Outer Door Frame (Stainless Steel)
6LCD Frame
7Board, User (Interface)
8LCD Module
9Cntrl Panel Plate
10Cntrl Panel Cover
11Cable Cover, Door
12CLIP,HINGE SCREW
13WPW10243393 Whirlpool Dishwasher Nameplate
13Logo (Stainless Steel)
13WPW10243392 Whirlpool Dishwasher Nameplate
14W10815455 Whirlpool Screw
15Spacer, Side (6) (Black)
158206525 Whirlpool Microwave Spacer
15Spacer, Side (6) (White)
17Spacer, Bottom (2)
188206179 Whirlpool Microwave Screw
19Cover, Choke
20Door Plate Assy
21W10565483 Whirlpool Microwave Screw
22Dr Innr Frm Assy
