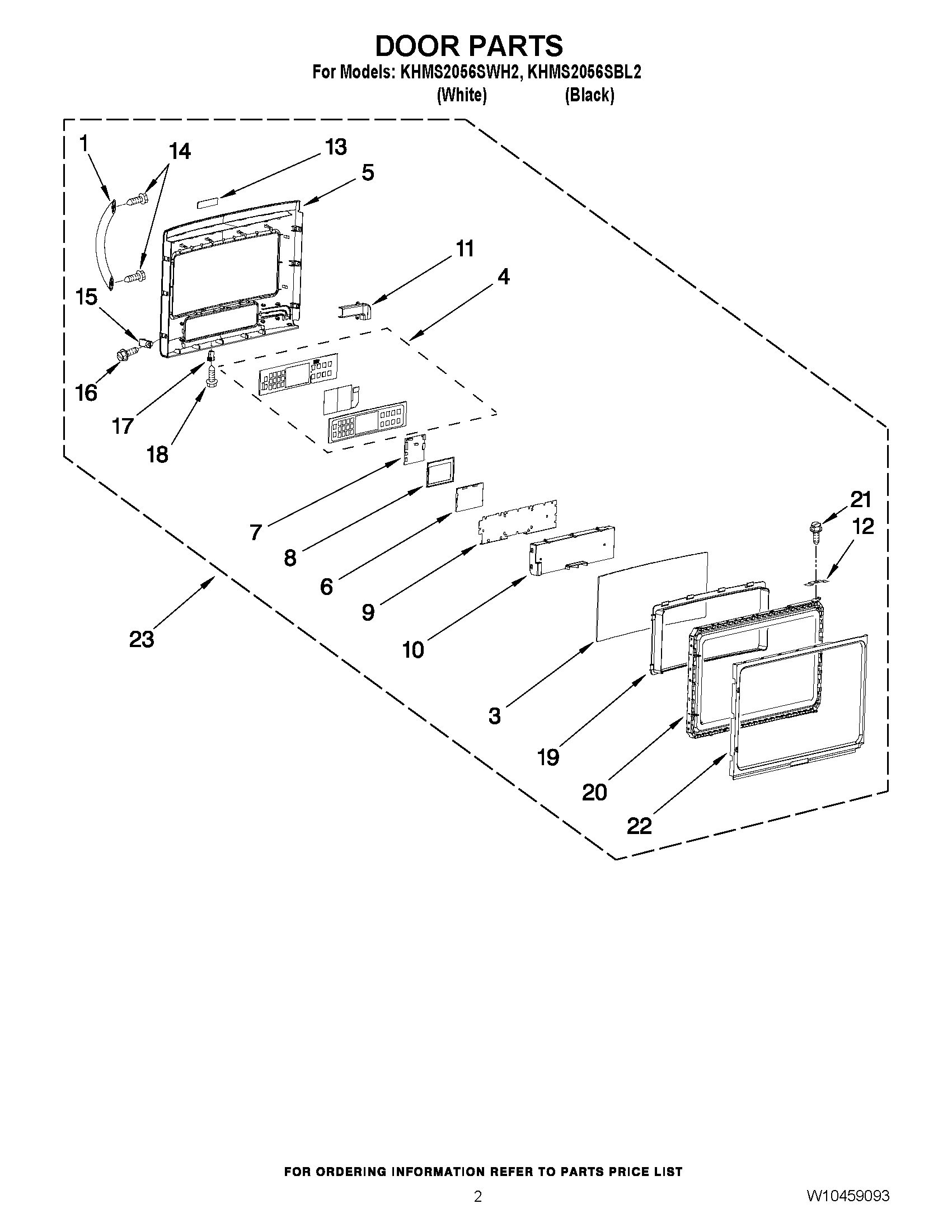

KHMS2056SWH2 02 – DOOR PARTSadmin2025-04-26T11:02:05+00:00KHMS2056SWH2 02 – DOOR PARTS ProductsPositionProduct1W10110267 Whirlpool Microwave Door Handle1Handle (White)3WP8206528 Whirlpool Microwave Door Glass4Control Panel5Outer Door Frame (White)5Outer Door Frame (Black)6LCD Frame7BOARD, USER (INTERFACE)8LCD Module9Cntrl Panel Plate10Cntrl Panel Cover11Cable Cover, Door12CLIP,HINGE SCREW13Logo (Stainless Steel)13WPW10243393 Whirlpool Dishwasher Nameplate13WPW10243392 Whirlpool Dishwasher Nameplate14W10815455 Whirlpool Screw15Spacer, Side (6) (Black)15Spacer, Side (6) (White)158206525 Whirlpool Microwave Spacer17Spacer, Bottom (2)188206179 Whirlpool Microwave Screw19COVER, CHOKE20Door Plate Assy21W10565483 Whirlpool Microwave Screw22Dr Innr Frm Assy23DOOR, COMPLETE (WHITE)23DOOR, COMPLETE (BLACK)
