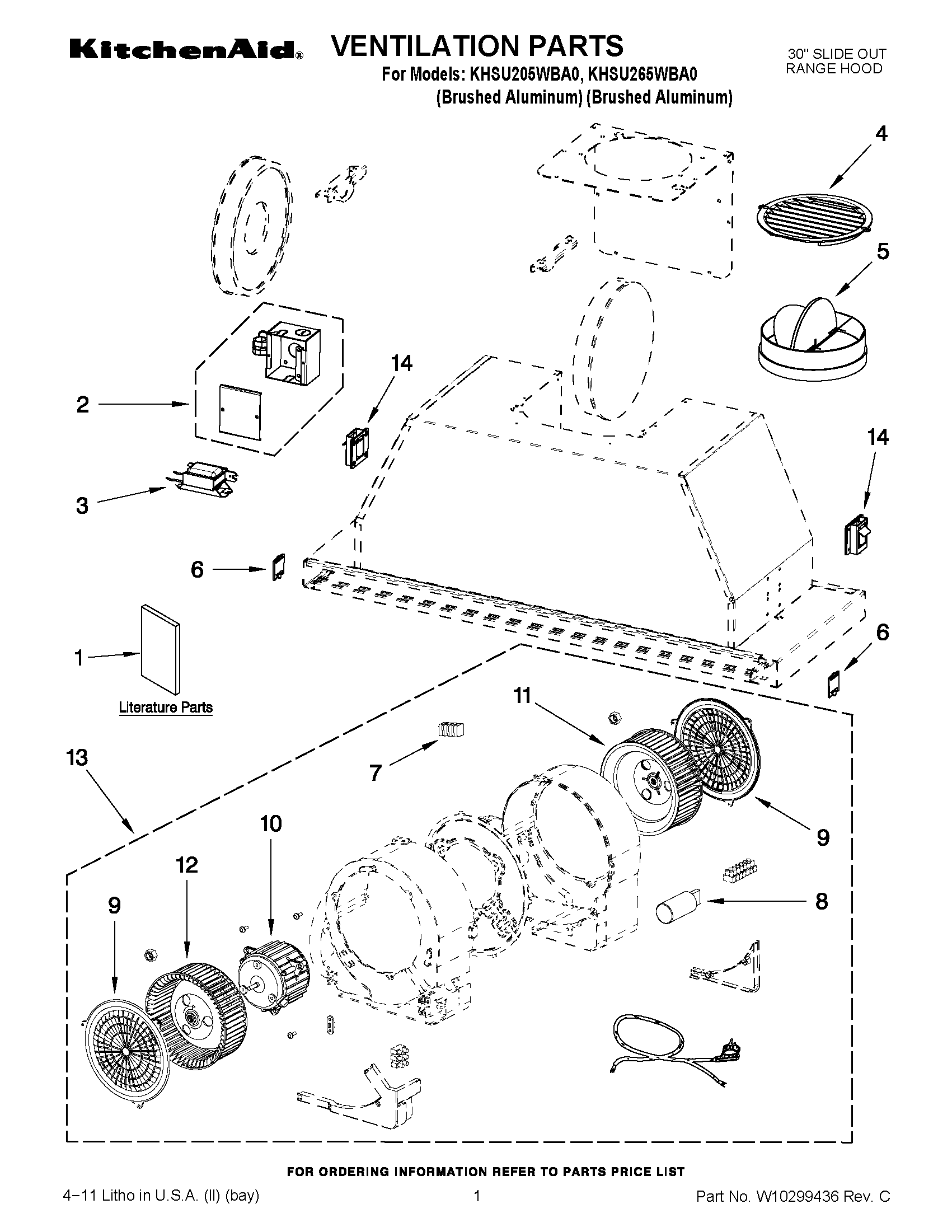

KHSU205WBA0 01 – VENTILATION PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
2BOX, JUNCTION
3BLOCK, TERMINAL
4COVER, DAMPER
5DAMPER, HOOD
6TRIM, END CAP
7DAMPENER, MOTOR
8CAPACITOR
9GRILLE, BLOWER
10MOTOR
11W10282171 Whirlpool Blower Wheel
12W10282173 Whirlpool Blower Wheel
13ASSEMBLY, BLOWER
14BRACKET, MOUNT
