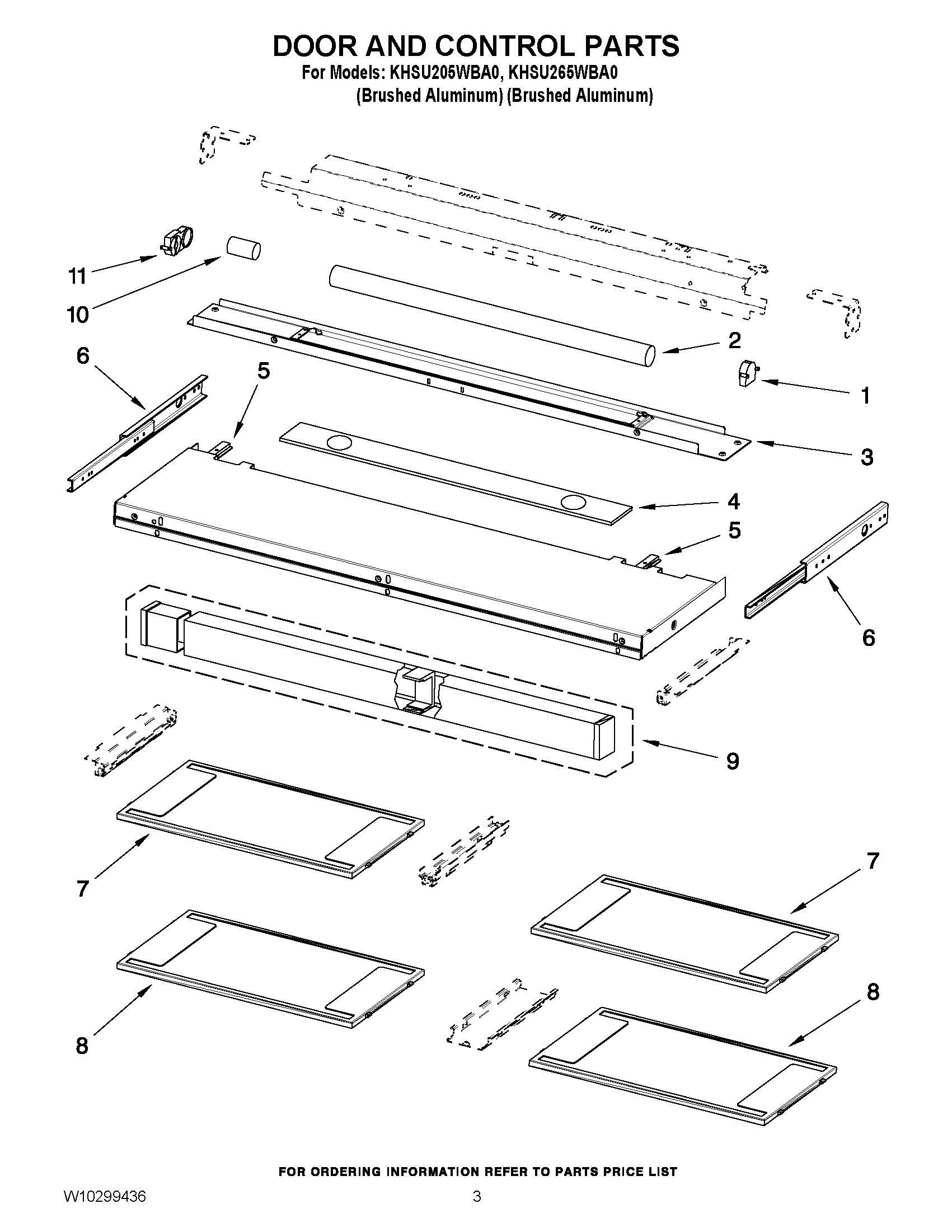

KHSU265WBA0 02 – DOOR AND CONTROL PARTS

KHSU265WBA0 02 – DOOR AND CONTROL PARTS

Written by

in

KHSU265WBA0 02 – DOOR AND CONTROL PARTS

Products

Position	Product
1	HOLDER, LAMP
2	LAMP
3	LENS, LIGHT (36 INCH MODEL)
3	LENS, LIGHT (30 INCH MODEL)
4	GLASS
5	BRACKET, LIGHT SUPPORT
6	GUIDE, DOOR
7	FILTER, MOVING (30 INCH MODEL)
7	FILTER, MOVING (36 INCH MODEL)
8	FILTER, FIXED (30 INCH MODEL)
8	W10282050 Whirlpool Filter
9	TRIM, FRONT (BL (30 INCH MODEL))
9	TRIM, FRONT (BL (36 INCH MODEL))
10	AL (30 INCH MODEL)
10	WH (30 INCH MODEL)
10	AL (36 INCH MODEL)
10	WH (36 INCH MODEL)
10	STARTER, LAMP
11	HOLDER, LAMP & STARTER
