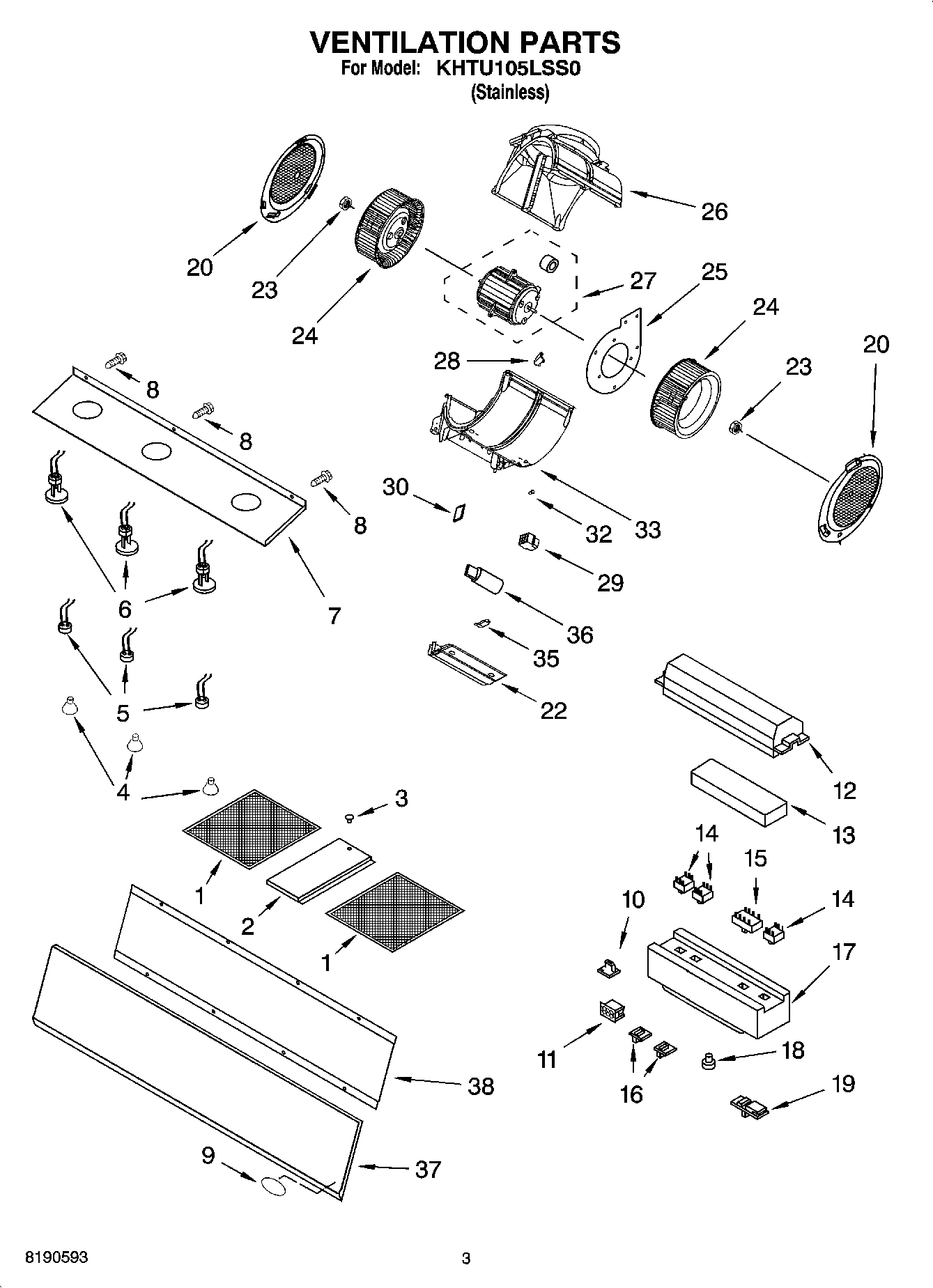

KHTU105LSS0 02 – VENTILATION PARTSadmin2025-04-26T11:57:20+00:00KHTU105LSS0 02 – VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | Filter, Grease |
| 2 | Panel, Spacer |
| 3 | Button, Plug |
| 4 | WPW10252088 Whirlpool Light Bulb |
| 5 | Holder, Bulb |
| 6 | Support, Bulb |
| 7 | Support, Light |
| 8 | Pin |
| 9 | Nameplate |
| 10 | Clamp |
| 11 | Connector |
| 12 | Cover, Switch |
| 13 | Support, Switch |
| 14 | W11731942 Whirlpool Slide Switch |
| 15 | WPW10252122 Whirlpool Switch Slide |
| 16 | Button, On/Off |
| 17 | Box, Control |
| 18 | Cover, Lamp |
| 19 | Button, Mtr Speed |
| 20 | Support (Right) |
| 20 | Support (Left) |
| 22 | Cover |
| 23 | Nut |
| 24 | Impeller, Blower (Left) |
| 24 | Impeller, Blower (Right) |
| 25 | Plate, Mtr Mount |
| 26 | Housing, Upper Fan |
| 27 | Motor, Blower Includes Grommets |
| 28 | Clamp |
| 29 | Connector |
| 30 | Cover, Wire |
| 32 | Screw (2) |
| 33 | Housing, Lower Fan |
| 35 | Bracket, Capacitor |
| 36 | Capacitor |
| 37 | Panel, Bottom |
| 38 | Cover, Front |
| 38 | ACCESSORY PARTS |
| 38 | 4396565 Whirlpool Filter |
